Työntömitta Gedore 6555030 syvyys 100 mm korkeus 15 mm paino 171 g

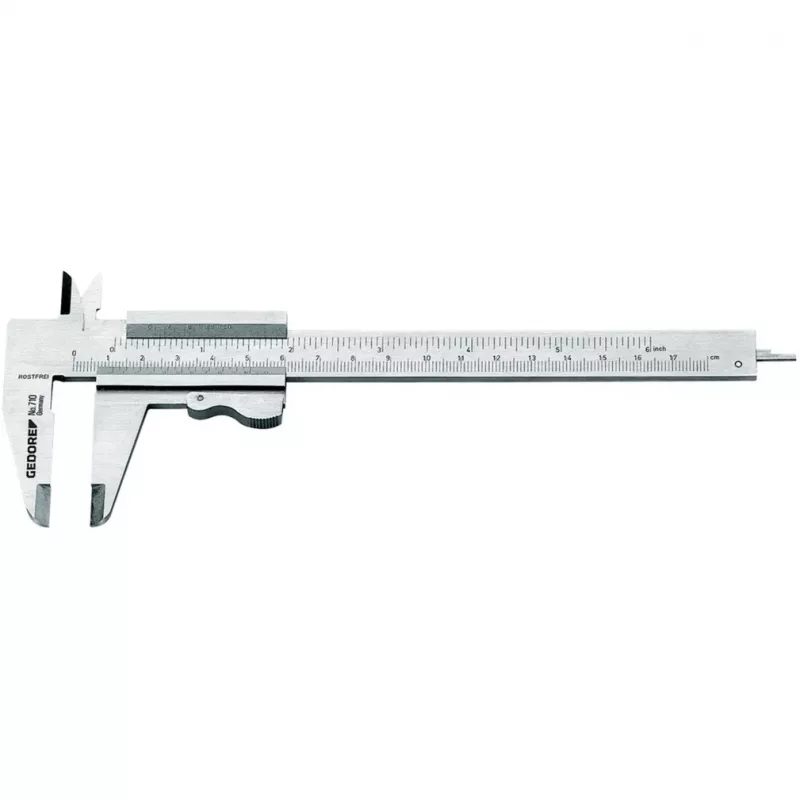

Caliper Gedore 6555030 is a precision measuring tool conforming to DIN 862, Form A. Designed for internal and external measurements, it features polished measuring tips, an integrated depth gauge and a high-speed setting for rapid positioning. The scale is graduated in millimetres and inches with a vernier reading of 1/20 mm and 1/128" for fine resolution. The caliper is supplied in a leather wallet for protection and storage.

Advantages

The Gedore caliper offers dual-scale graduations in mm and inches and a fine vernier for accurate readings. Its polished tips reduce wear and improve contact with measured surfaces, while the integrated depth gauge expands measurement capability. The high-speed setting enables quick jaw movement with secure fine adjustment, and the included leather wallet protects the instrument during transport and storage.

Suitable for

Key specifications

How to use

Place the caliper jaws on the object to be measured for external dimensions or insert the internal jaws into a bore for internal measurements. Read the main scale and the vernier scale together to obtain the precise measurement in millimetres or inches. Use the depth rod for measuring depths by extending it into the cavity until it contacts the bottom. Adjust coarse positioning with the sliding jaw and use the high-speed setting for rapid approach before performing fine adjustment for the final reading.

Recommendations

Keep the caliper clean and dry; avoid exposing it to strong impacts or corrosive substances. Store it in the supplied leather wallet when not in use. For consistent accuracy, calibrate or check against a gauge block periodically and operate the sliding mechanism gently to preserve the vernier alignment.
