UNI-T UT25CL johdon- ja johdinetsin pistorasiatestillä

Tracking down the right circuit breaker or diagnosing a faulty wall socket can be a tedious trial-and-error process. The UNI-T UT25CL combines a circuit breaker finder, wire detector, and socket tester in one handheld unit, helping electricians and homeowners quickly identify circuits and check wiring status without guesswork.

Who is it for

This tool suits electrical contractors, maintenance technicians, and DIY users who need a reliable way to locate breakers, verify socket wiring, and detect live wires behind plaster or conduits. Its clear LED and buzzer feedback works even in noisy environments.

Main features

• Combined circuit breaker finder, wire detector, and socket tester in one device.
• Detects voltage in the range of 90V to 250V AC, covering standard household and commercial power systems.
• Three detection methods: inductive circuit breaker location, contact socket testing, and non-contact voltage (NCV) detection.
• Socket test identifies live/neutral/earth status, missing earth, reversed polarity, and other common wiring issues.
• Built-in flashlight on the receiver makes work easier in dark panels or under cabinets.
• Auto power-off after approximately three minutes conserves battery life.
• Low battery indicator warns when the 9V battery needs replacement.

Specifications

• Brand: UNI-T
• Model: UT25CL
• Product Type: Wire Detector / Circuit Breaker Finder
• Operating Voltage Range: 90V-250V AC
• Frequency Range: 50Hz/60Hz
• Detection Methods: Inductive, Contact, NCV
• Socket Test Functions: Live/Neutral/Earth status, Missing Earth, Live/Earth Reverse, Live/Neutral Reverse
• Non-Contact Voltage (NCV) Detection: Yes
• Display Type: LED Indicators, Buzzer
• Receiver Power Source: 1x 9V (6F22) Battery
• Transmitter Power Source: Powered by AC Circuit
• Safety Rating: CAT II 300V
• Operating Temperature: 0°C to 40°C (32°F to 104°F)
• Storage Temperature: -10°C to 50°C (14°F to 122°F)
• Operating Humidity: <80% RH
• Operating Altitude: <2000m
• Built-in Flashlight: Yes (on Receiver)
• Auto Power Off: Yes (Receiver, after ~3 minutes)
• Low Battery Indication: Yes (Receiver)

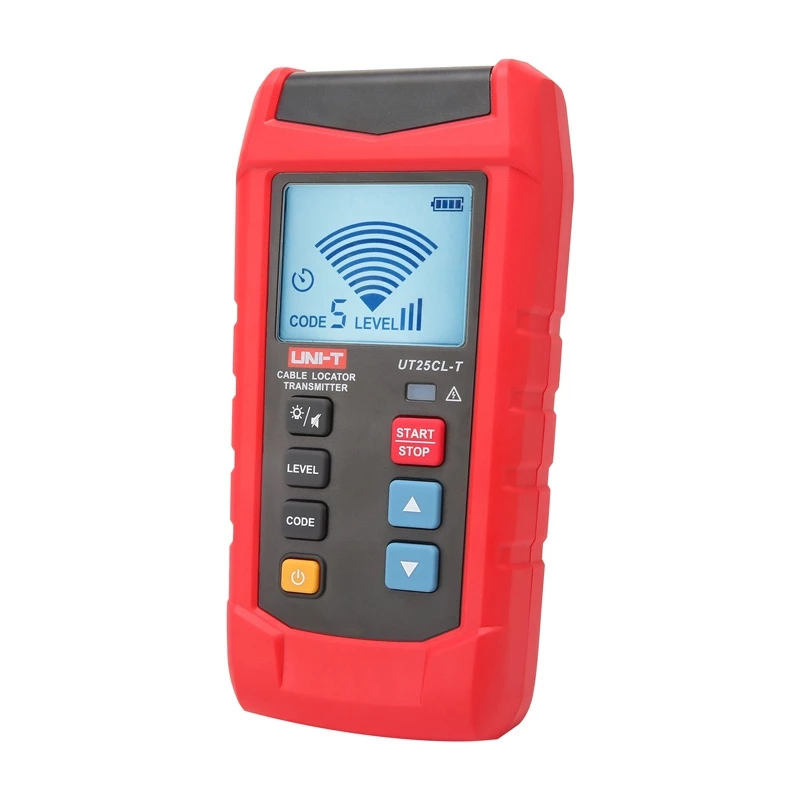

• Transmitter Type: Plug-in (AC Powered)

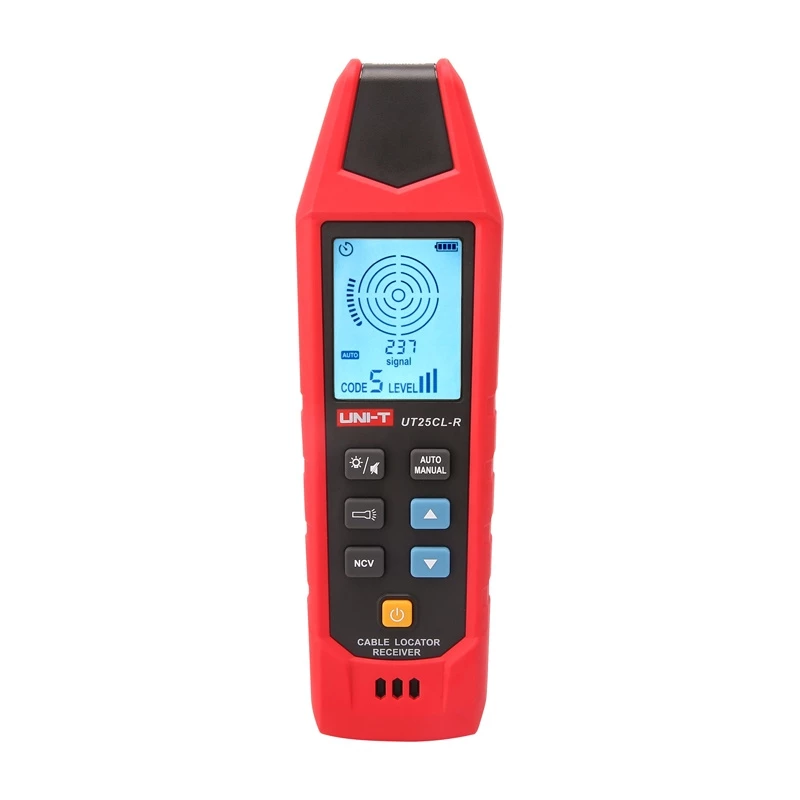

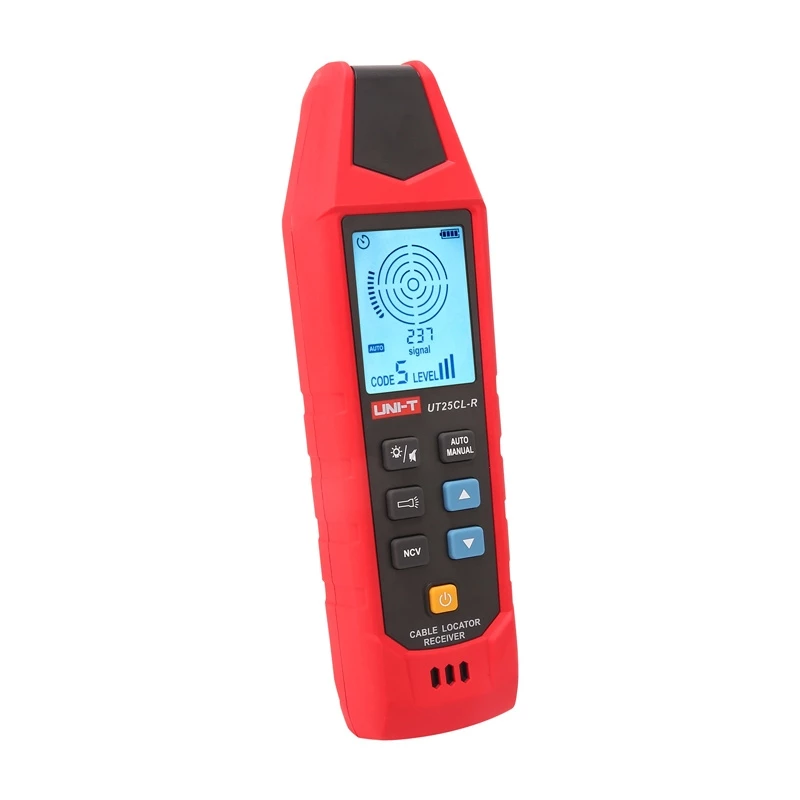

• Receiver Type: Handheld

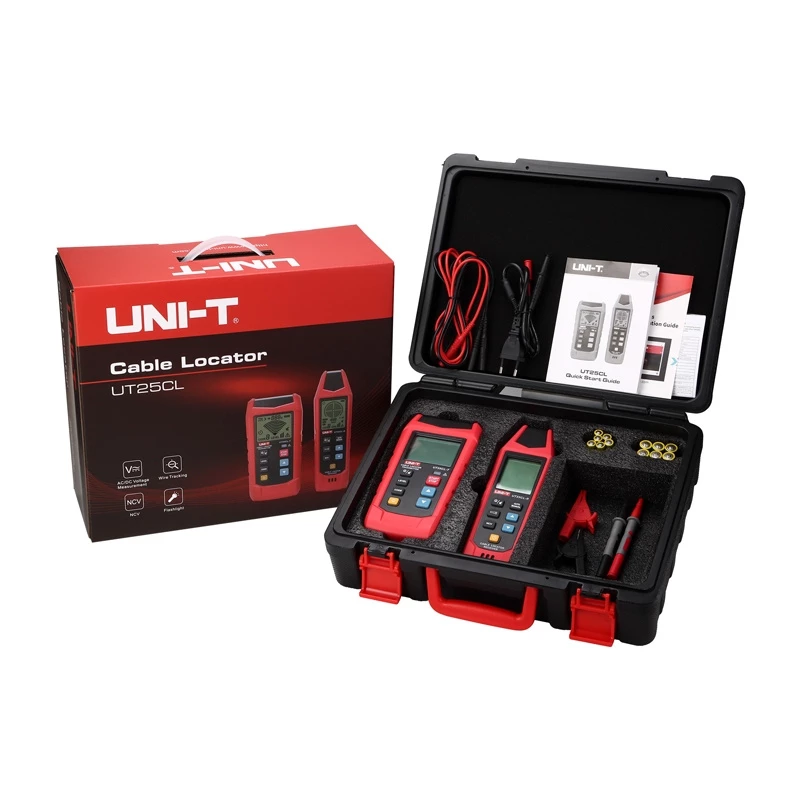

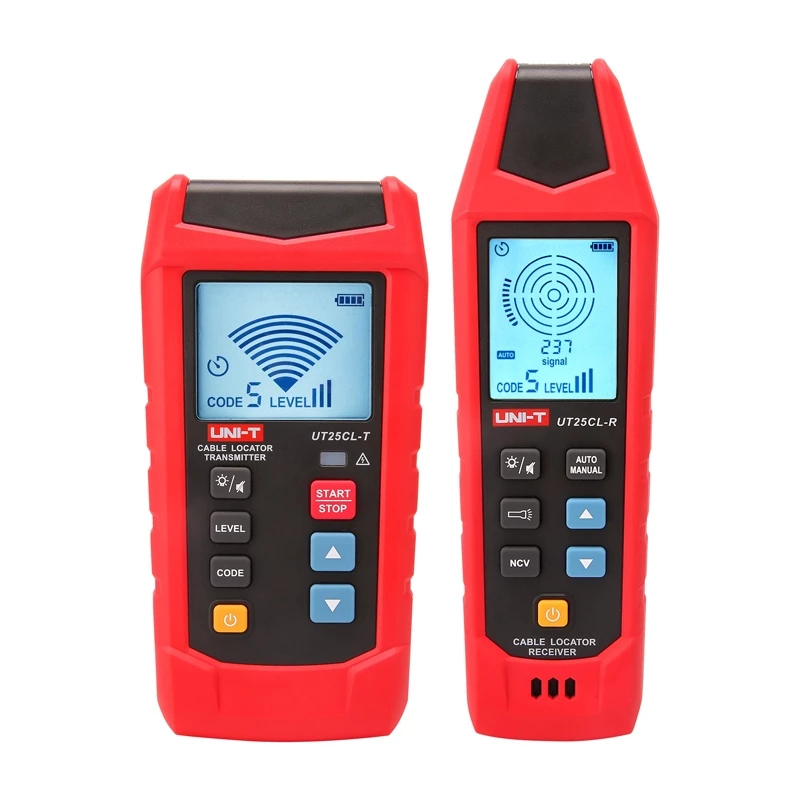

• Number of Components: 2 (Transmitter, Receiver)

Tips

For best results, plug the transmitter into the socket you want to trace, then scan the breaker panel with the receiver. The receiver's sensitivity can be adjusted to pinpoint the correct breaker. Always test the socket tester on a known good outlet before use to ensure accurate readings.
