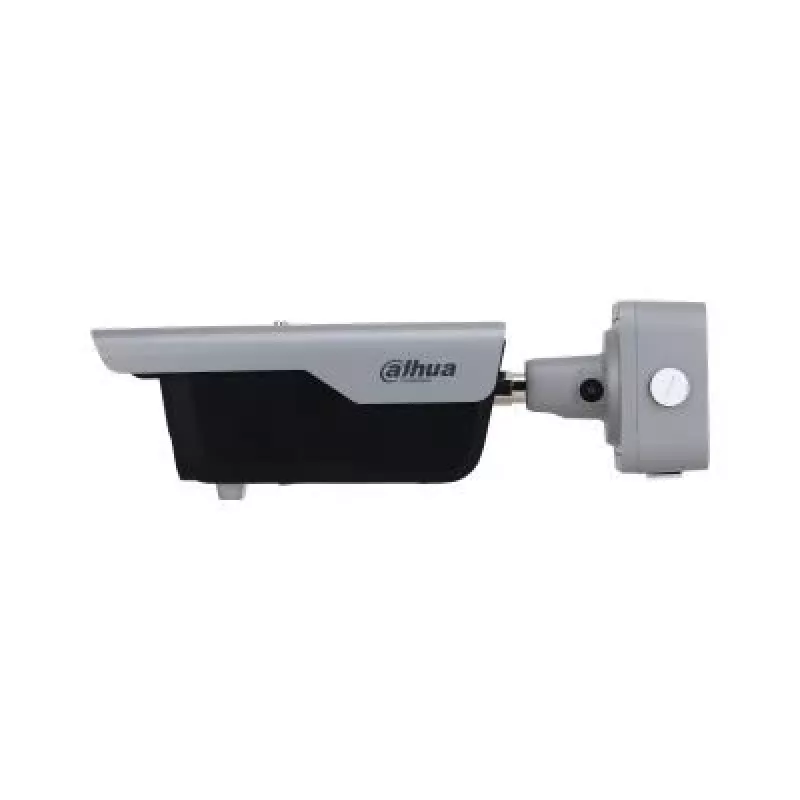

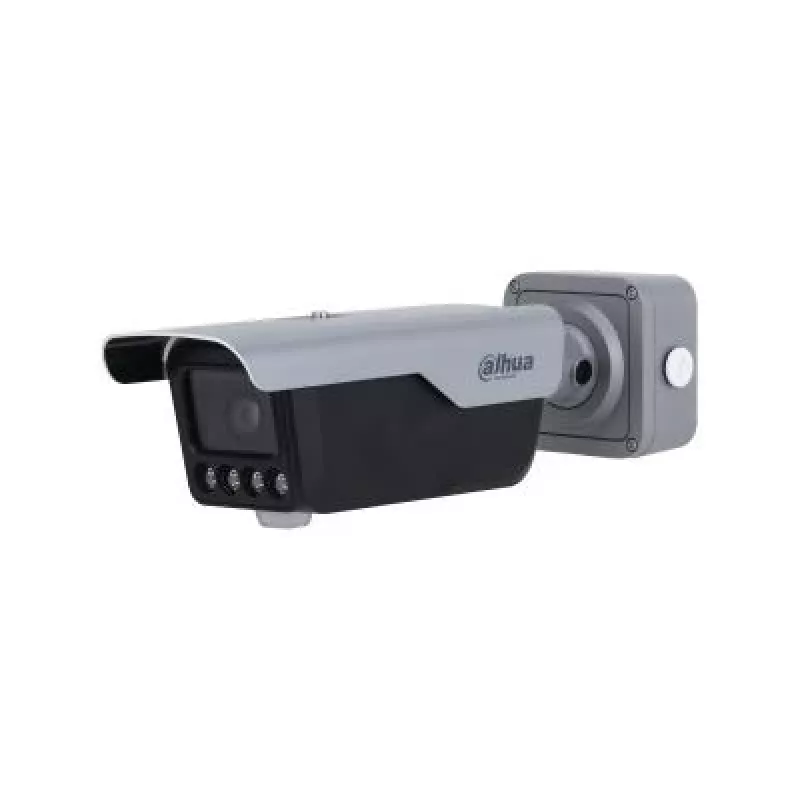

Valvontakamera DAHUA ITC413-PW4D-IZ1 4MP IR Bullet

The DAHUA ITC413-PW4D-IZ1 4MP IR Bullet is an outdoor surveillance camera with 4 megapixel resolution and a 1/1.8" CMOS sensor. It offers infrared illumination for low-light imaging and a 2.7–12 mm varifocal lens for flexible field-of-view adjustment. The camera includes built-in microphone, audio and speaker output, RJ45 network interface and supports local storage up to 256 GB. Designed for outdoor operation, it withstands temperatures from −30 °C to +65 °C and comes in a compact bullet form factor (396.0 mm × 120.8 mm × 127.8 mm).

Advantages

The camera delivers 4 MP image quality with infrared support to maintain clear video in dark conditions. Its varifocal 2.7–12 mm lens allows precise framing from wide to narrow angles. Integrated audio I/O and a built-in microphone enable two-way audio or recorded sound alongside video. Networked via RJ45 and compatible with ANPR features, the device supports reliable outdoor surveillance and local storage on microSD cards up to 256 GB.

Suitable for

• Perimeter and site surveillance for outdoor facilities
• Vehicle entrance and exit monitoring where ANPR is required
• Parking lots and driveways with variable lighting
• Small- to medium-size commercial properties requiring durable outdoor cameras

Key specifications

• Type: Outdoor IR bullet camera
• Pixel resolution: 4 MP
• Sensor: 1/1.8" CMOS
• Focal length: 2.7 mm–12 mm (varifocal)
• Electronic shutter: Auto/Manual, 1/25 s–1/10,000 s
• Audio: Built-in microphone, 1×Audio-Out, 1×Speaker-Out
• Interfaces: 1×RJ45, 2×RS-485
• Storage: Supports microSD cards up to 256 GB
• Operating temperature: −30 °C to +65 °C
• Dimensions: 396.0 mm × 120.8 mm × 127.8 mm

How to use

Mount the DAHUA ITC413-PW4D-IZ1 on a stable outdoor surface with appropriate weatherproof connections. Connect the camera to the network via the RJ45 port and configure IP settings using the recorder or Dahua management software. Adjust focal length between 2.7 mm and 12 mm to achieve the desired field of view. Configure electronic shutter, IR settings and ANPR features in the camera menu according to site lighting and detection requirements. Insert a compatible microSD card (up to 256 GB) if local recording is required, and set up audio input/output options as needed.

Recommendations

For reliable ANPR performance mount the camera at the recommended height and angle for license plate capture, ensure adequate IR illumination for night operation, and use a high-quality, industrial-grade microSD card. Regularly check firmware updates and perform periodic cleaning of the lens and housing to maintain image clarity.
