Valvontakamera Ernitec 0070-05862OPH standardi

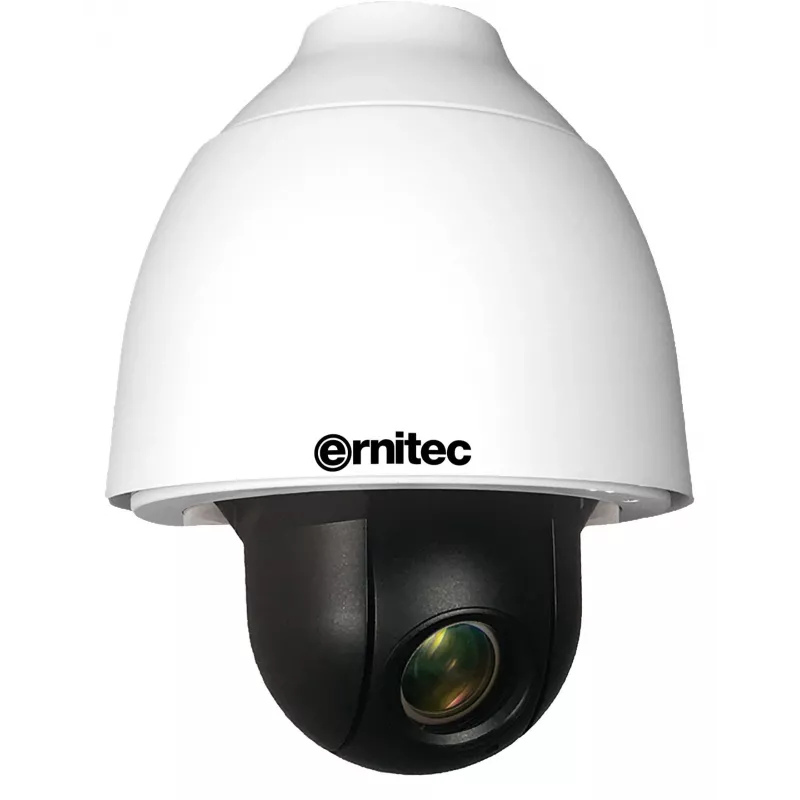

The Orion DX 5 (Ernitec 0070-05862OPH) is a Full HD IP speed dome camera built around Sony’s IMX462 Starvis back-illuminated CMOS sensor. It delivers 2MP resolution with a colour sensitivity of 0.18 Lux for improved low-light performance. The dome integrates a motorised 40x P-iris optical zoom with autofocus and supports PTZ control for flexible monitoring. The housing is weatherproof (IP66) and vandal resistant (IK10), and the camera supports High Power over Ethernet (PoE+ ultra) to simplify installation by carrying power, video and control signals over a single cable.

Advantages

The camera combines a sensitive Sony sensor and a long-range 40x optical zoom to provide clear images in low-light conditions and at distance. Built-in image stabilization (EIS), multi-exposure HDR and de-fog functions enhance image clarity in challenging environments. Onboard deep neural network acceleration enables face and licence plate detection, object classification and people tracking while supporting multiple codecs (H.264/H.265/MJPEG) and ONVIF interoperability for integration with third-party systems.

Suitable for

• Outdoor perimeter and site surveillance
• Parking lots and vehicle monitoring (LPR support)
• Large-area monitoring where PTZ coverage is required
• Commercial and industrial installations requiring vandal- and weather-resistant cameras

Key specifications

• Sensor: Sony IMX462 progressive scan CMOS, 2MP
• Resolution and frame rate: 1080p (1920×1080) at 30 fps
• Optical zoom: 40x P-iris motorised zoom with autofocus
• Low-light sensitivity: 0.18 Lux (colour)
• Image enhancement: Multi-exposure HDR (120 dB), EIS, De-Fog, 3D DNR
• Video codecs: H.265, H.264, MJPEG
• Network: PoE+ (IEEE 802.3at) support
• AI features: Deep neural network acceleration for face/LPR detection, object classification and people detection/tracking
• Standards and interfaces: ONVIF Profile S/G/T/M
• Environmental protection: IP66 weatherproof, IK10 vandal resistance

How to use

Mount the camera using the compatible Ernitec bayonet mount and selected ceiling, wall, pole or corner accessory. Connect a single Ethernet cable that supports PoE+ to provide power and network connectivity. Use the camera’s PTZ controls via the camera web interface or an integrated VMS to position and zoom. Configure video codec, resolution and AI detection settings in the device menu; enable event triggers such as external input, motion or scheduled/periodic events to record or send alerts.

Recommendations

Install the camera at a height and angle that minimises obstructions and glare; enable HDR and EIS for scenes with strong backlight or vibration. Use PoE+ switches or injectors rated for IEEE 802.3at to ensure stable power for PTZ and the 40x zoom. Regularly update firmware and test AI detection settings on site to reduce false alarms and maintain reliable recognition performance.
