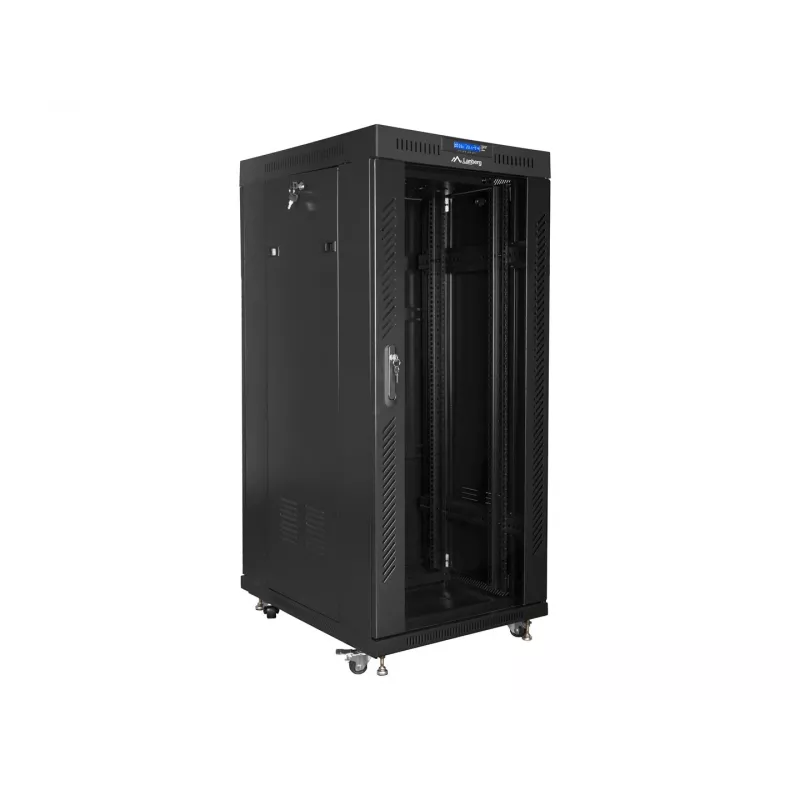

Vapaasti seisova räkki Lanberg FF01-8227-12BL 27U 800 kg

The Lanberg freestanding cabinet FF01-8227-12BL is a 27U 19-inch rack designed for mounting network, server and low-voltage equipment with a maximum load capacity of 800 kg. Constructed from high-grade cold-rolled steel with a powder-coated finish, the cabinet provides adjustable vertical mounting rails, removable side panels with locks, a rear solid metal door with lock and a front tempered glass door that can be fitted to open left or right. The top panel includes a fan tray with four 230V fans and a thermostat, and an LCD on the front displays inside temperature, time and fan/status information. Cable entry is possible from the top and bottom using blank entry panels; the unit ships as four flat packs for self-assembly and easier transport.

Advantages

The cabinet combines robust construction and a 800 kg loading capacity with flexible installation features such as adjustable rail depth, removable side panels and reversible front glass door. Integrated cooling with four top fans and thermostat, plus an LCD for basic monitoring, simplify environmental control. Multiple cable entry options, supplied mounting accessories and included M6 cage nuts streamline equipment installation and cable management.

Suitable for

• Network equipment and patch panels in office or comms rooms
• Server equipment in small and medium data rooms
• CCTV, IP surveillance and access control systems
• Low-voltage systems: cable TV, alarm and fire protection
• Environments requiring secure, lockable housing and grounding

Key specifications

• Manufacturer: Lanberg; MPN: FF01-8227-12BL; EAN: 5901969438017
• Type: Freestanding 19" cabinet, 27U
• Dimensions (W x D x H): 800 x 1200 x 1438 mm; usable height (top panel - bottom panel): 1352 mm
• Internal rail spacing: 450 mm; rail hole spacing width: 465 mm; external rail spacing: 500 mm
• Maximum load capacity: up to 800 kg
• Material and finish: high-grade cold-rolled steel, powder coated (Black RAL9004)
• Doors: front tempered glass (lockable, reversible); rear solid metal door with lock
• Protection degree: IP20
• Cooling: top fan tray with 4 x 230V fans and thermostat; front LCD for temperature/time/fan status
• Floor: 4 castors with brake + adjustable feet
• Cable entry: top and bottom (adjustable blank panels)
• Standards: ANSI/EIA RS-310D, IEC297-2, DIN41494 PART1 & PART7, ETSI
• Packaging includes: mounting accessories, front and rear door locks, two side panel locks, 20 M6 screws, 2 vertical cable organizers, 4 casters, 4 feet

How to use

Unpack the four flat packs and assemble the cabinet following the supplied instructions. Fit and adjust the vertical mounting rails to the required depth, install equipment into 19" rack positions using the provided M6 cage nuts and screws, and route cabling through the top or bottom entry panels. Connect the fan tray to a 230V power supply and set the thermostat if required. Use the front LCD to monitor internal temperature and fan status. Secure doors and side panels using the included locks and ensure grounding pins are connected to building earth where required.

Recommendations

Place the cabinet on a level surface; lock castors during operation. Distribute equipment weight evenly and keep adequate airflow clearance in front and rear. Verify grounding connections and follow local electrical codes when connecting the fan tray and any powered accessories.
