Vapaasti seisova räkki Triton RMA-42-A81-CAX-N1 42HE 800 kg harmaa

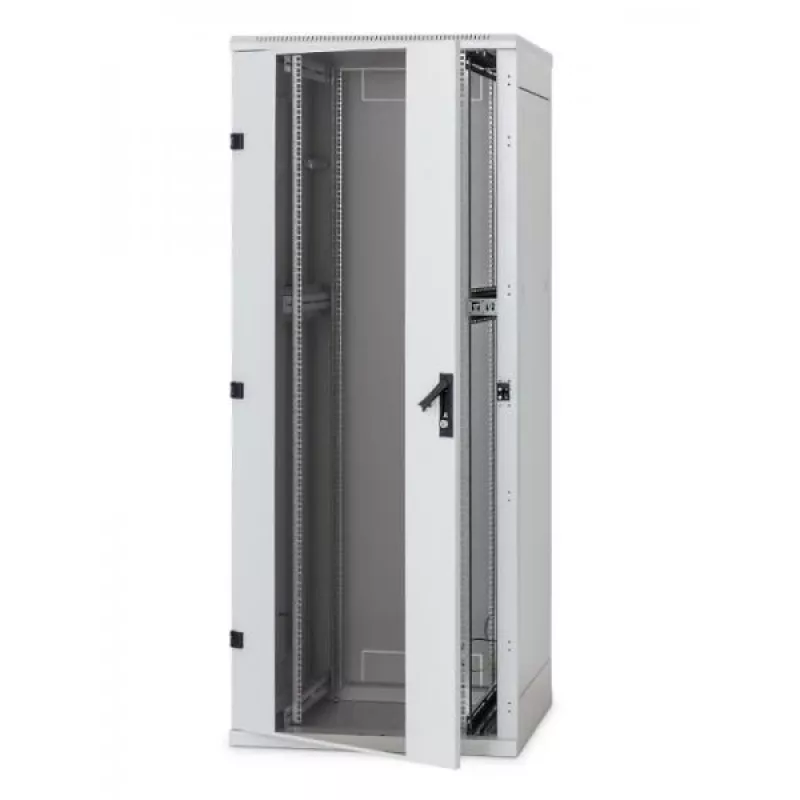

The Triton RMA-42-A81-CAX-N1 is a 42U freestanding rack designed for data and telecommunication equipment. Constructed with a welded skeleton and 1.3 mm thick rails, the cabinet offers robust mechanical strength, flexible door opening, multiple cable entry options and support for active cooling. With a load capacity up to 800 kg and IP20 protection, this grey rack (800 × 1000 × 770 mm, weight 116 kg) is suitable for server, network and telecommunications installations where reliable housing and efficient cable management are required.

Advantages

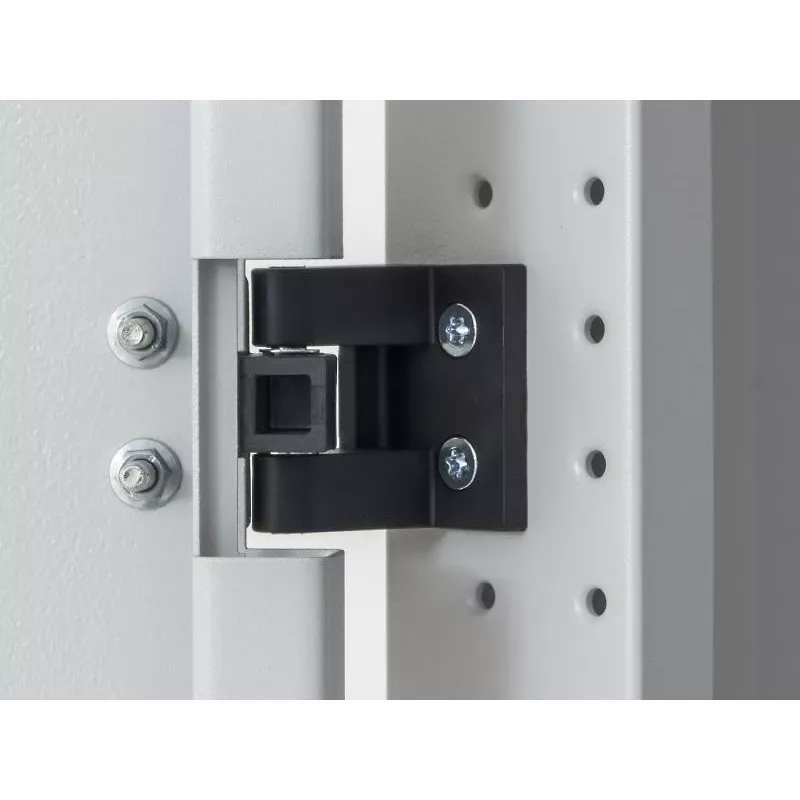

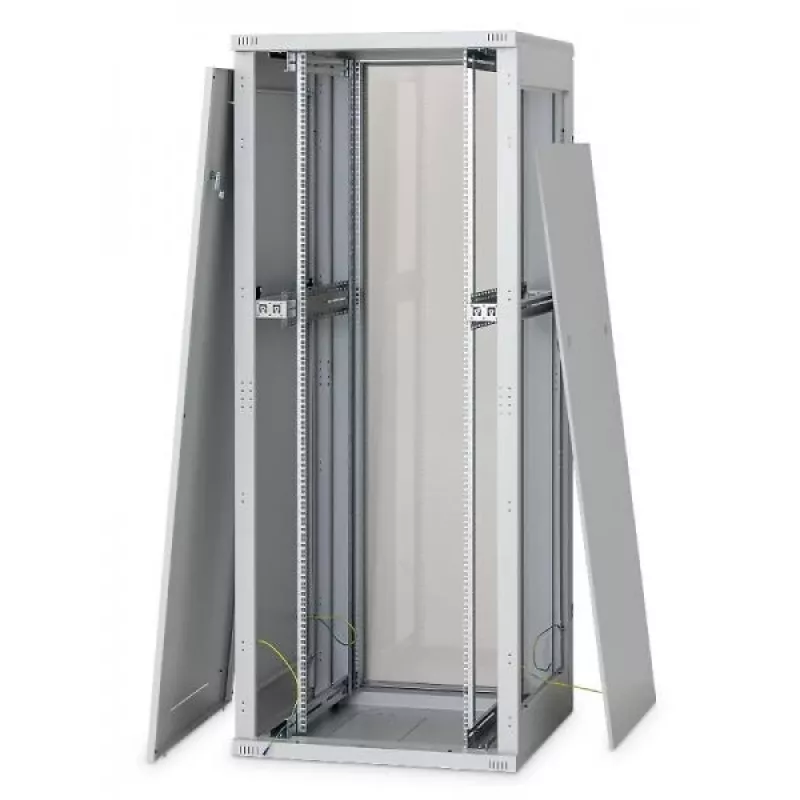

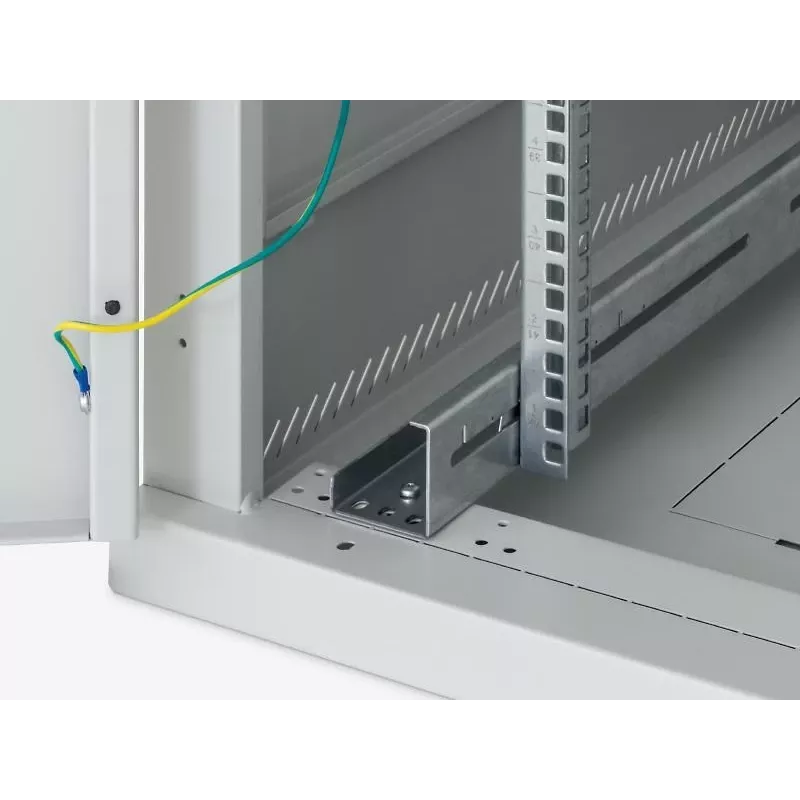

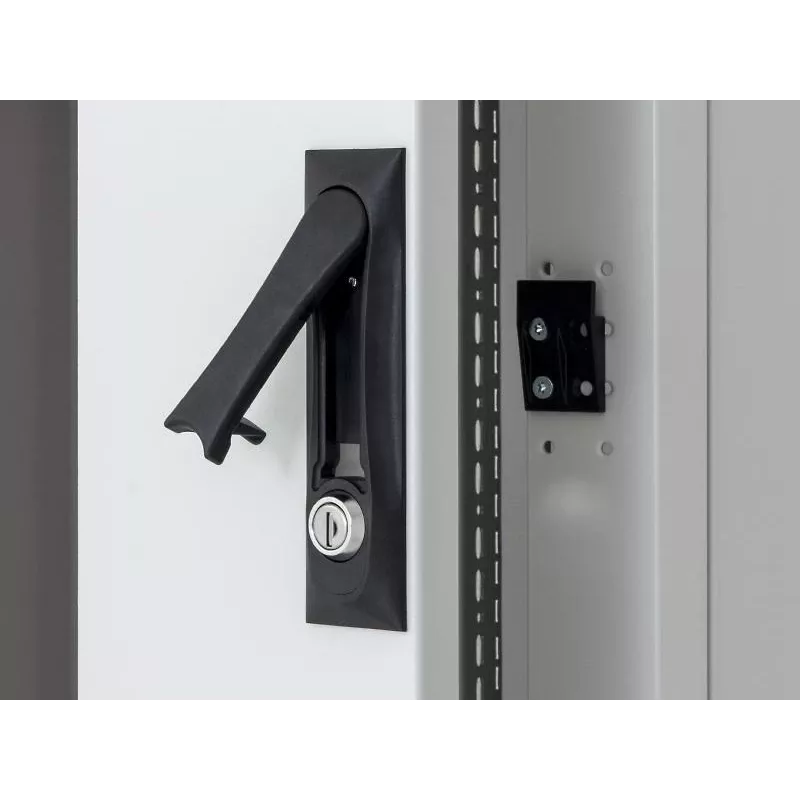

The cabinet features a rigid welded construction with widened 1.3 mm skeleton rails for improved stability. Doors open nearly 180° and are removable or reversible; double-wing doors use hook-on hinges. Vertical 19" rails are adjustable in depth, and a middle pair of rails is supplied for deeper enclosures. Breakout-type blanking panels and brush strips allow protected cable entry and reduced dust ingress. Optional fan-door mounts and openings for Triton fan units enable active cooling. The cabinet supports levelling feet, castors or a reinforced base and all detachable parts are bonded according to standards.

Suitable for

• Server racks and blade servers
• Network switches, routers and patch panels
• Telecommunication equipment and PBX systems
• Data centre edge and server room installations

Key specifications

• Model: Triton RMA-42-A81-CAX-N1
• Rack capacity: 42U
• Maximum load capacity: 800 kg
• Dimensions (W×D×H): 800 × 1000 × 770 mm
• Weight: 116 kg
• Protection rating: IP20
• Colour: Grey
• Vertical rails: 19" adjustable; flex frame support for 19", 21" and 23" spans (800 mm cabinets)

How to use

Place the freestanding rack on levelling feet (included) or install optional castors or a base as required. Fit equipment onto the adjustable 19" vertical rails and use the supplied central rail pair for deeper devices. Route cables through the breakout blanking panels in the base, ceiling and rear cover; use the brush strip or protective fringe to seal cable openings against dust. If required, mount Triton fan units using the dedicated fan-door or the large breakout opening to install or remove fans from outside the cabinet.

Recommendations

For stable long-term installations carrying loads above 500 kg, install the recommended horizontal cable management in the skeleton to reinforce the structure. Use the flex frame option for mixed-width equipment and ensure bonding of detachable parts according to applicable standards.
