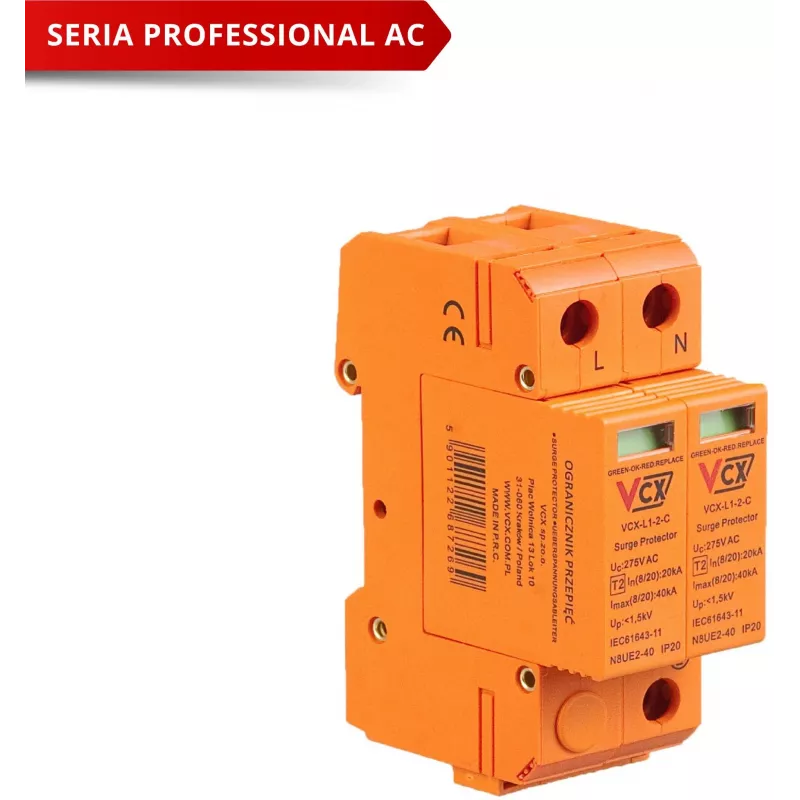

VCX Professional C2P Class C ylijännitesuojalaite 2P (T2) 40kA

The VCX Professional C2P is a high-quality Type 2 (Class C) surge protective device (SPD) designed to protect electrical installations from transient overvoltages. With a maximum discharge current of 40 kA and a nominal discharge current of 20 kA, it ensures reliable protection for sensitive equipment. This 2-pole device is suitable for DIN rail mounting and complies with IEC/EN 61643-11 standards.

Advantages

Robust metal oxide varistor (MOV) technology provides fast response time (<25 ns) and high surge handling capability. Visual status indication (green/red) allows easy monitoring of protection status. Compact 2-module width saves space in distribution boards.

Suitable for

• Residential and commercial electrical panels
• Protection of sensitive electronic equipment
• Installations requiring Type 2 surge protection

Key specifications

• SPD Type: Type 2 (T2) / Class C
• Number of Poles: 2P
• Maximum Discharge Current (Imax): 40 kA
• Nominal Discharge Current (In): 20 kA
• Maximum Continuous Operating Voltage (Uc): 275 V AC
• Voltage Protection Level (Up): < 1.5 kV
• Mounting: DIN Rail (35mm)
• Module Width: 2 DIN modules
• Response Time: < 25 ns
• Protection Technology: Metal Oxide Varistor (MOV)
• Status Indication: Visual (Green/Red)
• Short-circuit Withstand Capability (Isccr): 50 kA
• Operating Temperature: -30°C to +70°C
• Degree of Protection: IP20
• Standards: IEC/EN 61643-11
• Recommended Backup Fuse: 125A gG

Recommendations

For optimal protection, install this SPD at the main distribution board and ensure proper grounding. Always follow local electrical codes and manufacturer instructions.
