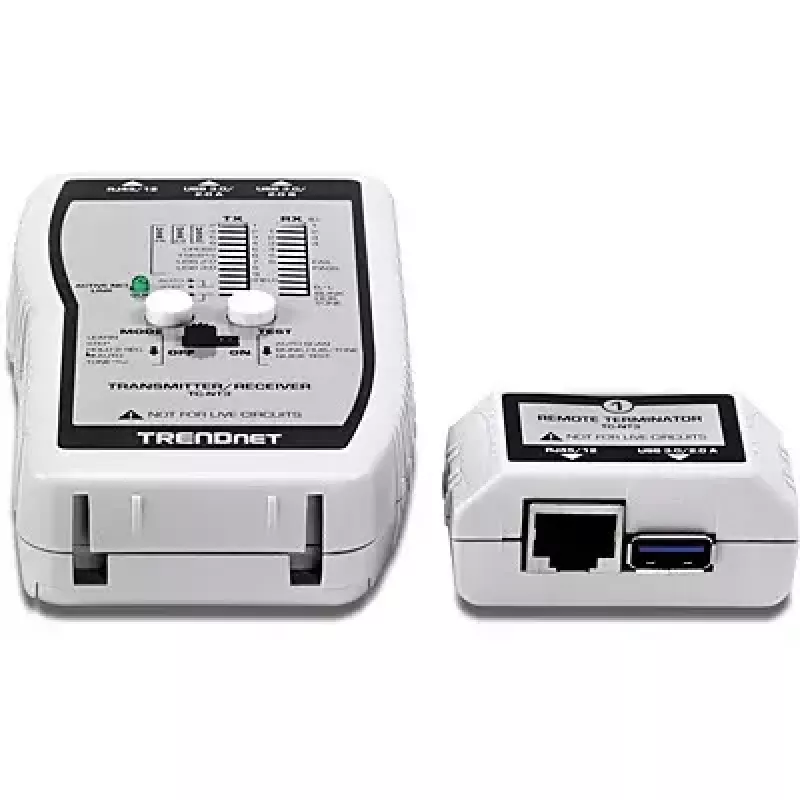

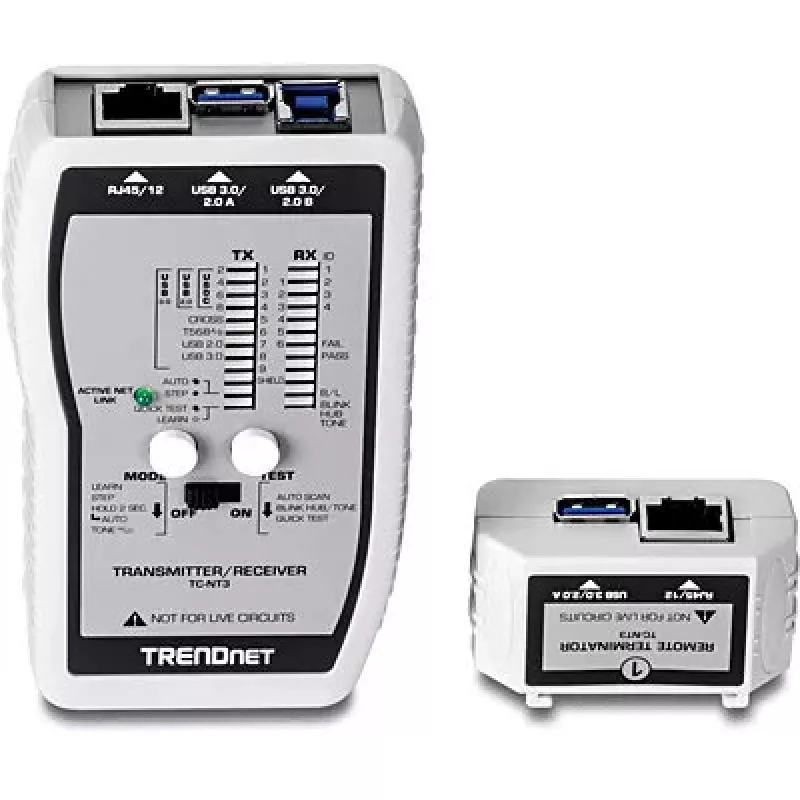

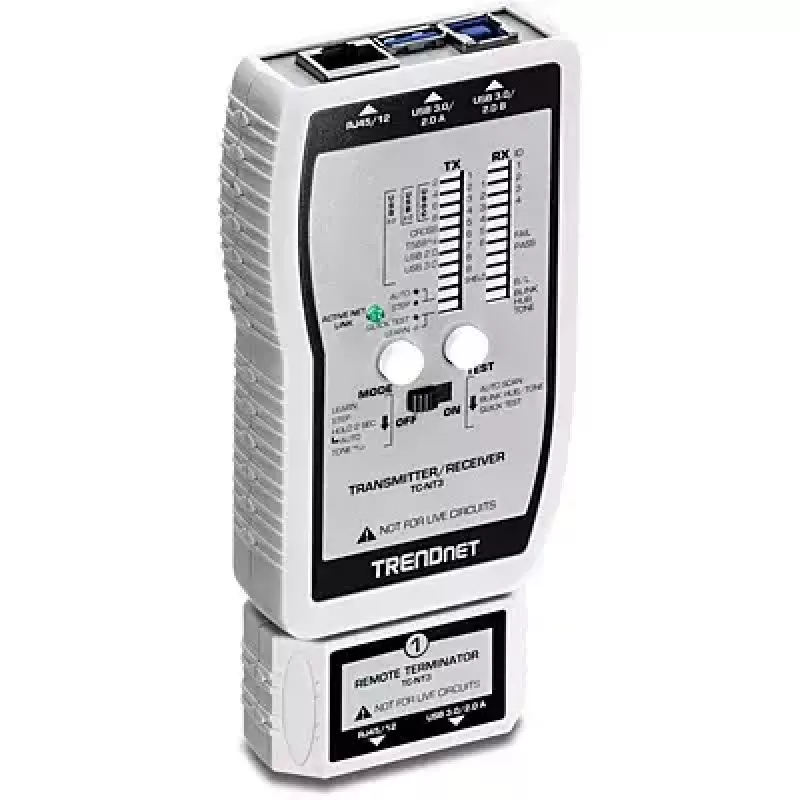

Verkkokaapelitesteri Trendnet TC-NT3

TRENDnet TC-NT3 is a compact network cable tester designed for technicians who install and maintain LAN, voice, video and USB cabling. The unit verifies pin configuration and continuity for twisted-pair and USB cables, can report cable length faults up to 300 meters (1,000 ft.), and includes a detachable remote and travel case for field portability. The tester operates from a 9V battery and is sized for handheld use (117 x 67 x 27 mm, 144 g).

Advantages

The TC-NT3 detects correct wiring, opens, shorts and crossed pairs, and provides a Quick Test mode for fast pass/fail results on large batches. A Blinking Hub/Switch Mode helps identify the specific port on a connected switch or hub. The kit includes a remote unit and fits into a convenient travel case for on-site troubleshooting.

Suitable for

• Testing RJ-45 Ethernet patch cables and network drops
• Verifying telephone and other voice cabling
• Checking USB cable continuity and pin mapping
• Field technicians performing installation and maintenance

Key specifications

• Model: TC-NT3 (v1.0R)
• Tests: voice, data, video and USB cables
• Maximum test distance: up to 300 meters (1,000 ft.)
• Battery: 9V (not included)
• Dimensions: 117 x 67 x 27 mm
• Weight: 144 g

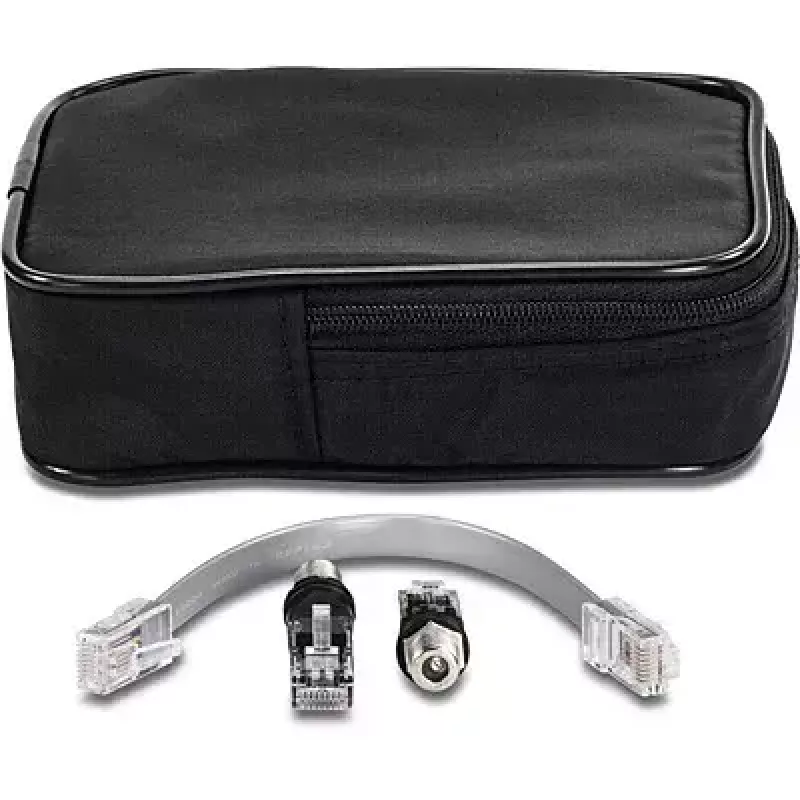

• Includes detachable remote and travel case

How to use

Connect one end of the cable to the main unit and the other end to the remote unit or the appropriate port. Select the desired test mode and run the test; the display and indicators will report correct wiring, open, short, or crossed pairs and, where applicable, approximate fault distance up to 300 m. Use Quick Test mode to obtain rapid pass/fail results for multiple cables. Use Blinking Hub/Switch Mode when you need to locate the port on a connected hub or switch.

Recommendations

For accurate results, use fresh 9V battery power and verify connectors are clean and fully inserted. When testing long runs, ensure both ends are accessible for the remote unit. Store the main unit, remote and accessories in the supplied travel case to protect components during transport.
