Verkkopatchkaapeli CAT6 U-UTP ohut — DIGITUS, 3 m, musta

DIGITUS CAT6 U-UTP Slim patch cable, 3 m, black is an unshielded twisted-pair Ethernet lead designed for Gigabit networks that require compact, flexible cabling. The slim-profile cable with RJ45 plugs is intended for space-saving routing in patch panels, switches and wall sockets. It supports data, voice and PoE applications at CAT6 performance, offering transmission up to 1 Gbit/s and a frequency of 250 MHz while maintaining a small overall diameter for high-density installations.

Advantages

The cable combines a reduced outer diameter (approx. 2.7 mm) and a flexible LSZH jacket to allow easy installation in confined spaces and cable management ducts. Stranded AWG 32/7 bare copper conductors and HD-PE insulation provide the flexibility required for frequent moves and changes while supporting PoE and PoE+ with pure copper conductors. Molded anti-kink sleeves with strain relief and locking lever protection reduce the risk of connector damage and accidental unlocking, and the construction complies with international CAT6 cabling standards for predictable electrical performance.

Suitable for

• Office networks and structured cabling in high-density patch panels
• Home networks and multimedia connections
• Connections between switches, routers, patch panels and wall outlets
• PoE and PoE+ powered devices such as IP phones, access points and cameras

Key specifications

• Cable type: U-UTP (unshielded twisted pair)
• Performance class: CAT6, up to 250 MHz
• Data rate: up to 1 Gbit/s (1000BASE-T)
• Length: 3 m
• Outer jacket: LSZH (Low Smoke Zero Halogen)
• Total diameter: 2.7 mm ± 0.15 mm
• Conductors: stranded AWG 32/7 bare copper
• Insulation material: HD-PE (high-density polyethylene)

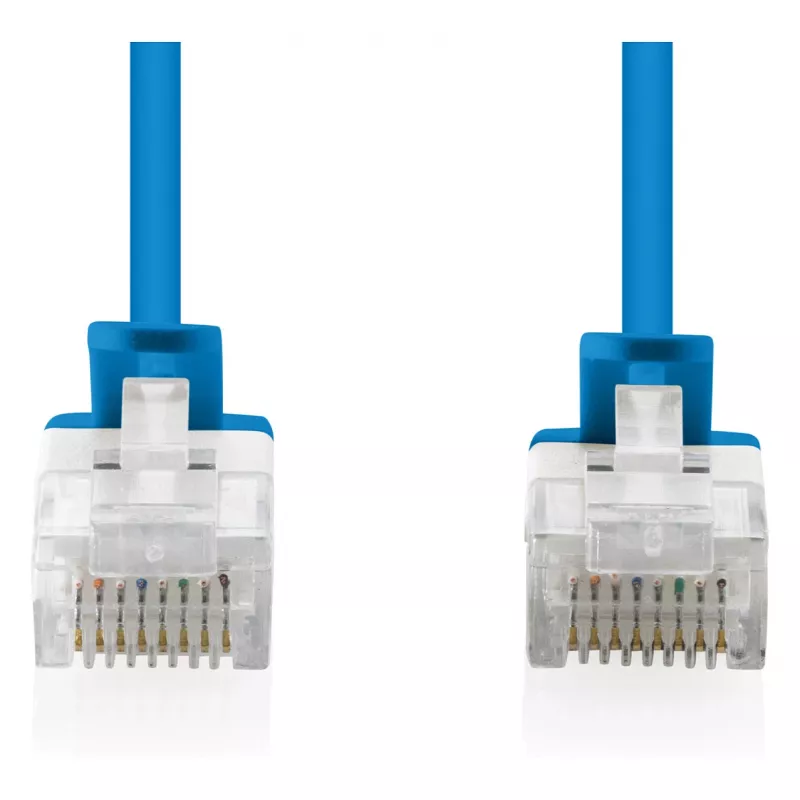

• Connector: RJ45 plug with molded anti-kink sleeve and strain relief
• Bending radius: 15× outer diameter
• Operating temperature range: -20 °C to +60 °C
• Flame and smoke characteristics: IEC 60332-1, IEC 61034
• Typical IEEE applications: 10BASE-T, 100BASE-T, 1000BASE-T
• Service life (mating cycles): 750

How to use

Plug the RJ45 connectors into corresponding ports on switches, patch panels, routers or wall sockets with the locking tab oriented to match the jack design. Route the cable through cable ducts or behind equipment, observing the reduced bending radius; avoid sharp bends that are tighter than the specified 15× outer diameter. For installations using PoE, confirm that connected devices and power sources comply with PoE/PoE+ specifications and that connections are fully seated to ensure reliable power and data transmission.

Recommendations

For best long-term performance, use this slim CAT6 patch cable in high-density environments where space-saving and flexibility are priorities. Maintain separation from high-voltage power lines to reduce electromagnetic interference and follow structured cabling practices (EIA/TIA 568B) for consistent pin assignment and network reliability.
