InLine 69927T IP68 verkkovirtaliitin, 3-napainen, 2-tie, M20, musta

The InLine 69927T is an IP68-certified mains coupler designed for secure power connections indoors and outdoors. It connects 3-core power cables with a rated voltage of 500 V and a rated current of up to 32 A, and accommodates cable diameters from 4 to 14 mm and conductor cross-sections from 0.5 to 6 mm². The housing is made of nylon (PA66), with silicone seals and copper contacts, and it operates in temperatures from -40 °C to +105 °C.

Key features

• IP68-certified connection coupling for permanent outdoor use or damp environments
• For 3-core power cables with 500 V and up to 32 A
• Suitable for cable diameters from 4 to 14 mm and cable cross-sections from 0.5 to 6 mm²

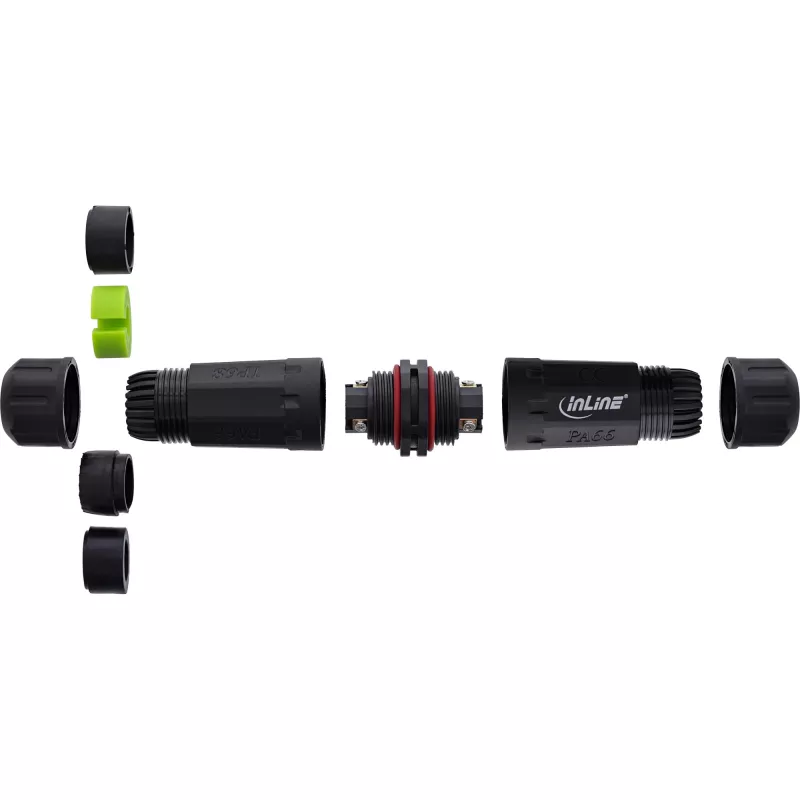

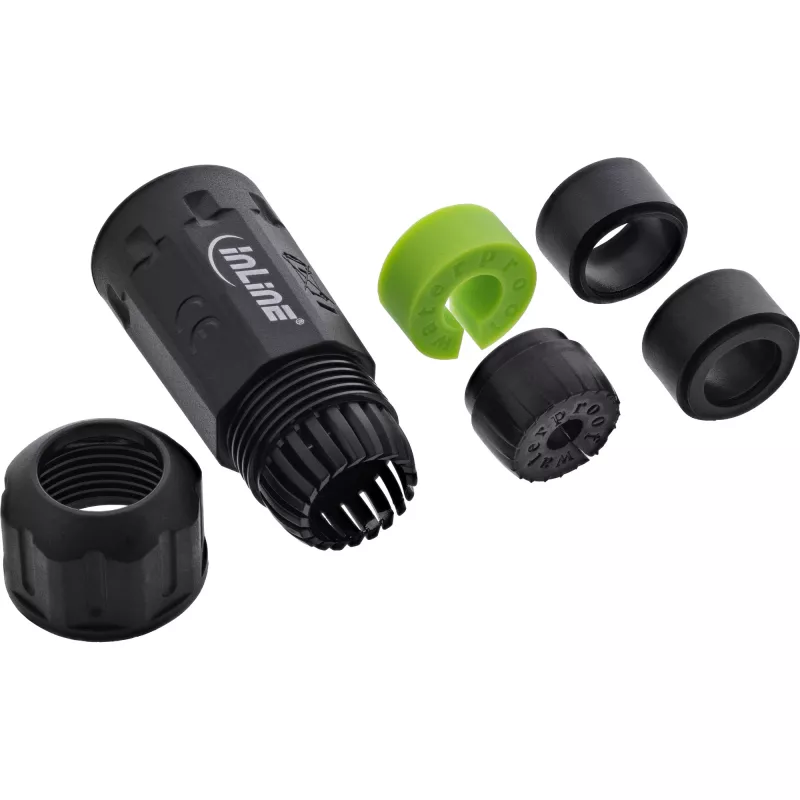

• Housing made of nylon (PA66), silicone seal, and copper contacts
• Tool-free installation with screw cap system and secure locking mechanism
• 2-way coupling with M20 thread

Specifications

• Brand: InLine
• MPN: 69927T
• Product colour: Black
• Material: Nylon (PA66)
• Thread size: M20
• Contact material: Copper
• Seal: Silicone
• Temperature range: -40 °C to +105 °C
• IP protection rating: IP68
• Cable diameter: 4–14 mm
• Conductor cross-section: 0.5–6 mm²
• Design: 2-way
• Number of poles: 3-pole
• Rated voltage: 500 V
• Rated current: 32 A

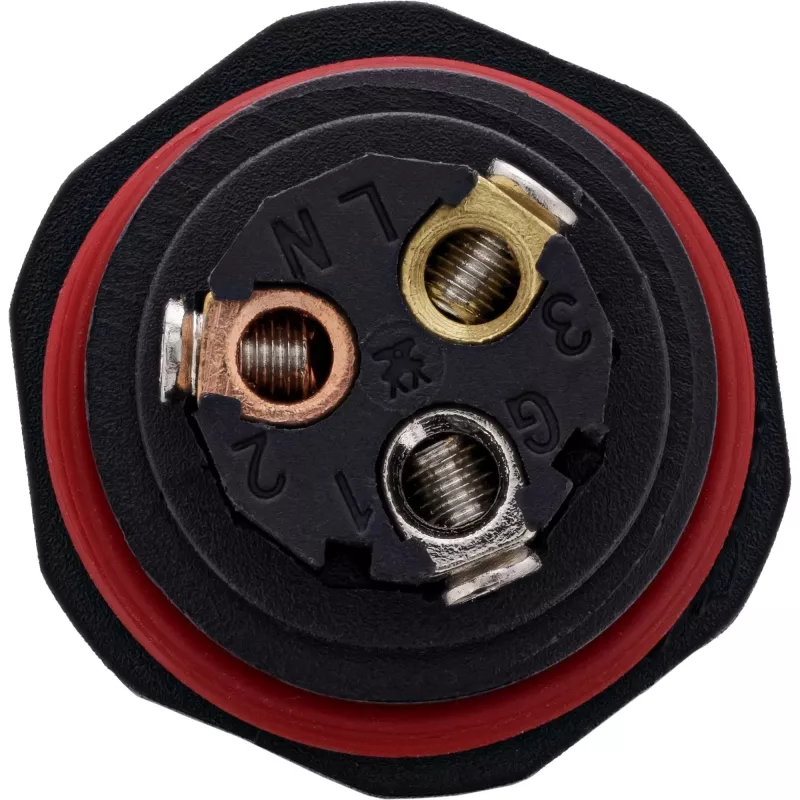

• Side A: 3-pin screw connection
• Side B: 3-pin screw connection
• Country of origin: Taiwan
