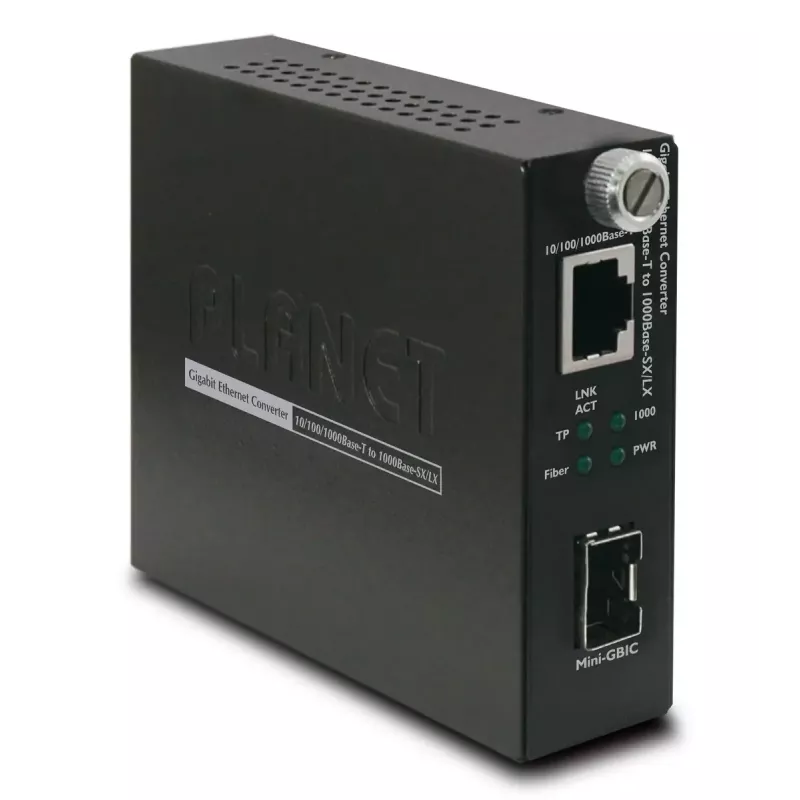

Verkon mediakonvertteri PLANET GST-805A

The PLANET GST-805A is a compact Gigabit media converter designed for FTTX and general fiber-to-copper connectivity. It converts between 10/100/1000Base-T (RJ-45) and 1000Base-SX/LX interfaces using an SFP fiber optic connector, providing stable Gigabit performance and extended transmission distances for various fiber applications. The unit supports standalone operation via a 5V DC adapter or can be installed as a slide-in module in PLANET 19-inch managed 16-slot media converter chassis (MC-1610MR / MC-1610MR48).

Advantages

The GST-805A delivers reliable media conversion with Gigabit-capable throughput and flexible fiber options through SFP modules. It supports auto MDI/MDI-X on the TP port and offers DIP-switch selectable smart functions including fiber auto-negotiation/force and Link Loss Carry Forward (LLCF) / Link Loss Return (LLR) for link fault detection. Its compact black housing and chassis slide-in compatibility simplify deployment in both standalone and rack-mounted environments.

Suitable for

• Extending Ethernet links over multi-mode or single-mode fiber for campus and building networks
• Connecting Gigabit copper switches or routers to fiber backbones
• Integration into managed PLANET media converter chassis for centralized monitoring

Key specifications

• Model: PLANET GST-805A (MPN: GST-805A)
• Ethernet port: 1 x 10/100/1000Base-T (RJ-45) with auto MDI/MDI-X
• Fiber: 1 x SFP slot for 1000Base-SX/LX modules
• Maximum data transfer rate: 2000 Mbit/s
• Ethernet speeds supported: 10/100/1000 Mbps
• Power: 5 V DC input, 2 A
• Dimensions: 81 mm x 94 mm x 26 mm
• Colour: Black
• Certifications: FCC Class A, CE Class A

How to use

Install an appropriate SFP module for the required fiber type and insert it into the SFP slot. Connect the RJ-45 port to your Ethernet device and the fiber connector to the fiber link. Configure the DIP switches to select desired fiber auto-negotiation or forced mode and enable or disable LLCF/LLR as needed. Power the unit with the supplied 5V DC adapter for standalone use, or slide the converter into a compatible PLANET 16-slot chassis to allow centralized management and monitoring via the chassis interfaces.

Recommendations

Use multi-mode SFP modules for short-distance links and single-mode SFPs for long-distance connections; enable LLCF/LLR in environments where quick link-failure detection and notification are required. For centralized monitoring and management, install the GST-805A into a PLANET MC-1610MR series chassis.
