VGA-liitinrimasovitin DeLOCK 65170

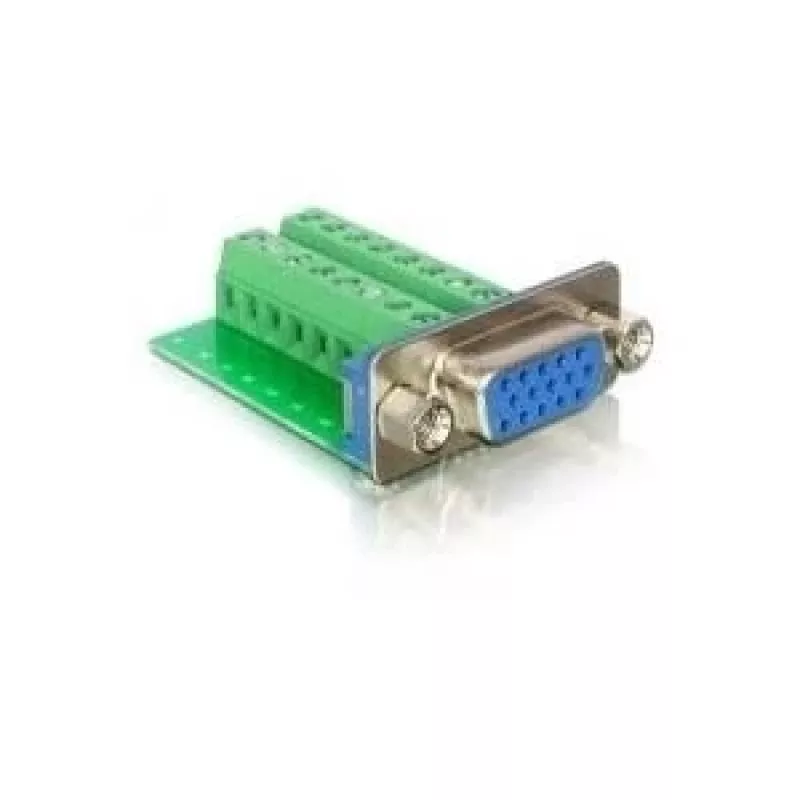

The DeLOCK VGA Female Terminal Block Adapter 65170 converts a standard 16-pin VGA connector into a terminal block for direct wiring of individual conductors. Designed for industrial and custom installations, this green adapter provides a straightforward way to connect VGA signals when open cable ends or single wires are used.

Advantages

The adapter offers a 16-pin VGA female interface compatible with standard VGA cables while the terminal block enables secure, screw-clamp connections of single wires. Its compact design simplifies installation in control cabinets and bespoke AV setups, and the distinct green housing makes the connector easy to identify.

Suitable for

• Industrial control panels and custom instrumentation
• AV installations requiring hardwired VGA signal connections
• Prototyping and repair tasks with open-ended VGA cables

Key specifications

• Connector type: VGA 16-pin female
• Connection: Terminal block for single wires
• Product colour: Green
• Manufacturer: DELOCK, MPN 65170, EAN 4043619651702

How to use

Strip the insulation from each wire to the recommended length, insert the conductors into the corresponding terminal block positions, and secure them with the screw clamps. Plug the VGA female connector into the male VGA port of the device or cable. Verify pin assignments before connecting to ensure correct VGA signal routing.

Recommendations

Use in environments where secure screw-terminal connections are required; avoid exposing the adapter to excessive moisture or mechanical stress. Confirm VGA pin mapping and test the connection with appropriate equipment before putting the system into regular operation.
