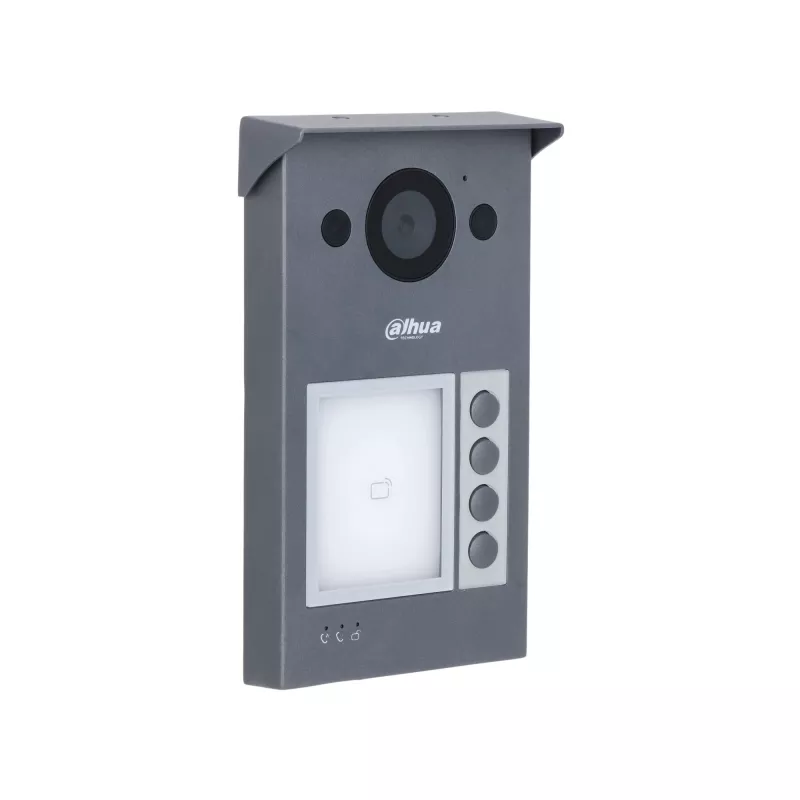

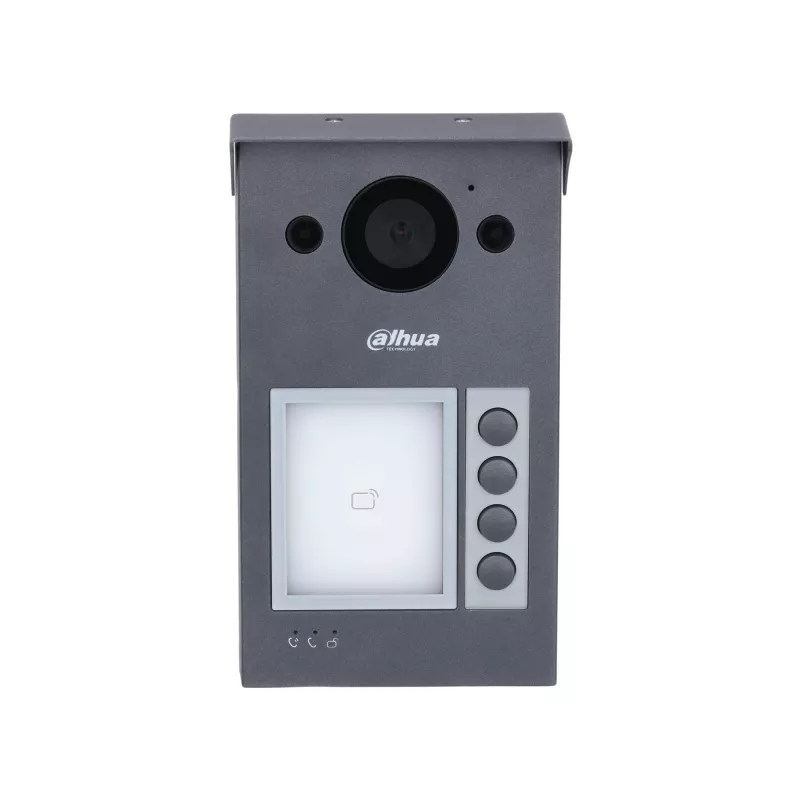

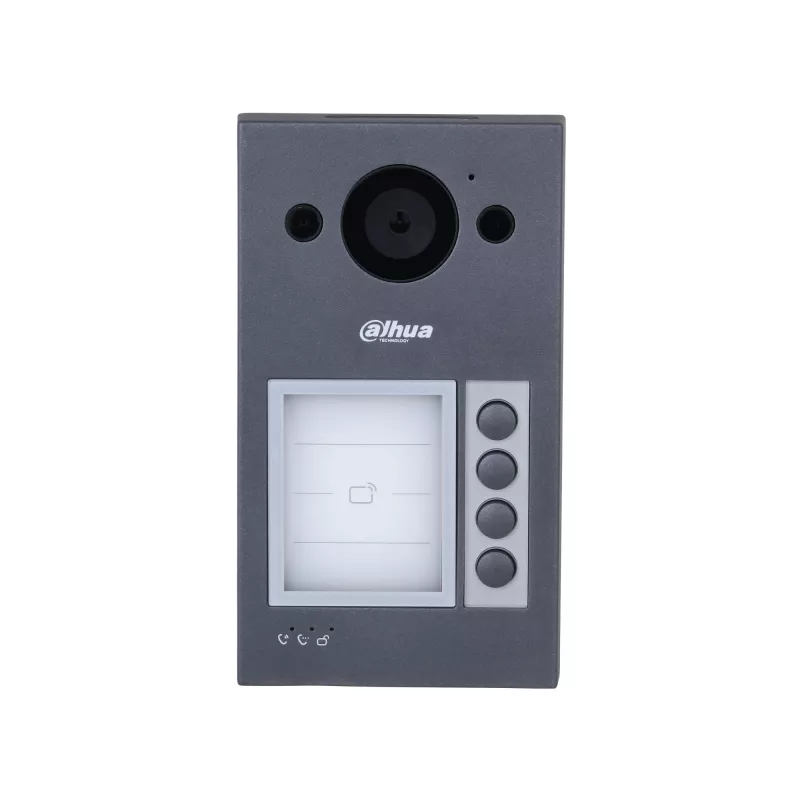

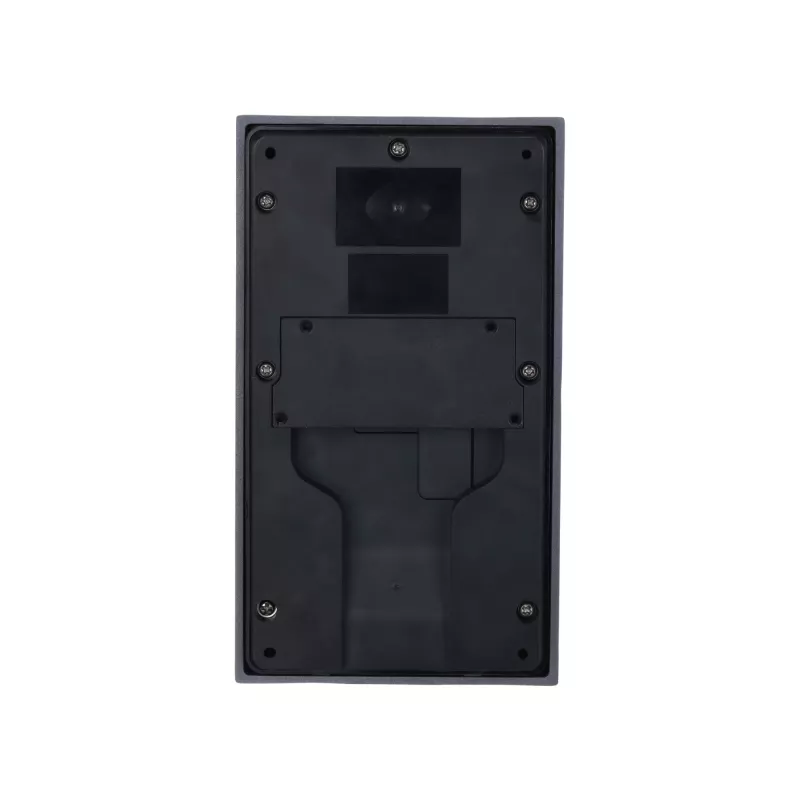

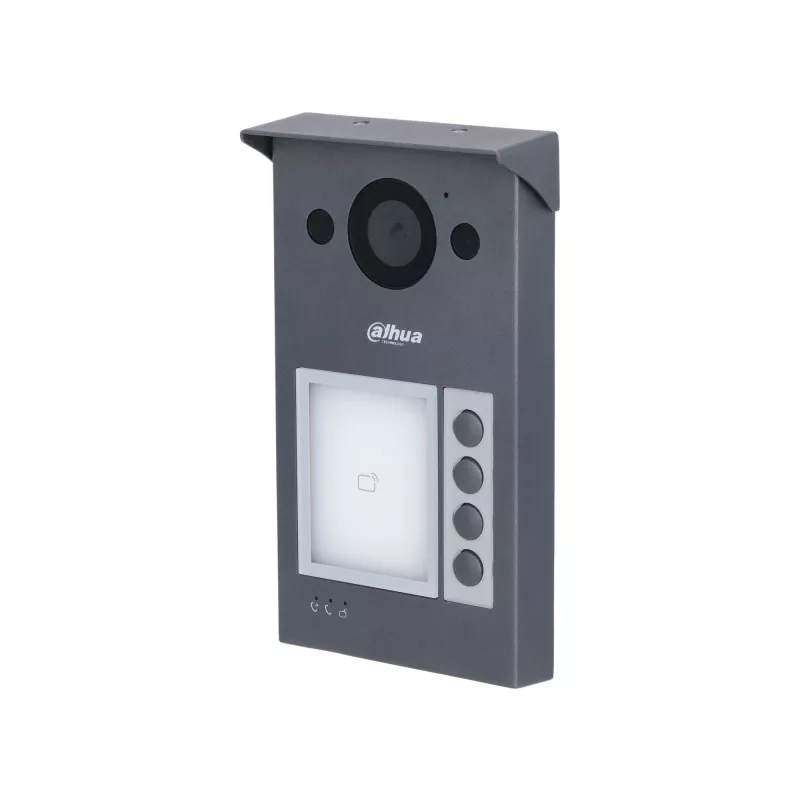

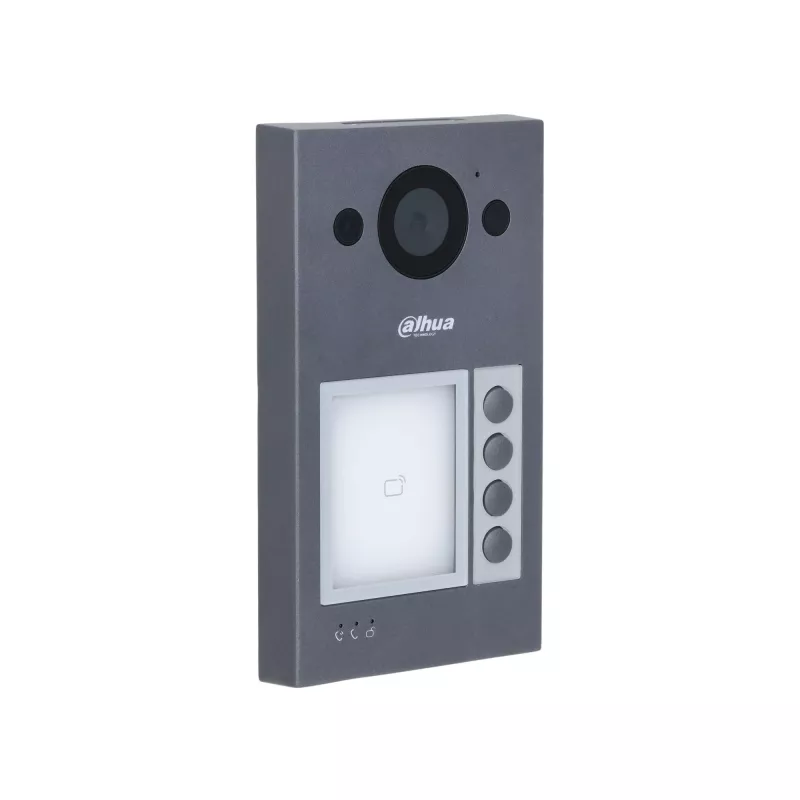

Video-ovisummeri DAHUA VTO3311Q-WP 2 MP, H.264/H.265, IP65, IK08, Fast Ethernet, 720p/1080p CMOS, IR LED

The Dahua Technology VTO3311Q-WP is a 2 MP video intercom designed for outdoor door-station use. It supports H.264 and H.265 video compression, offers 720p and 1080p video modes from a CMOS sensor, and includes IR LEDs for improved night vision. The unit has a grey finish and is built to withstand outdoor conditions with IP65 ingress protection and IK08 impact resistance. Network connectivity is provided via Fast Ethernet with support for RTSP and ONVIF protocols. Power options include 12 VDC, 1 A or Standard PoE, and it operates across a wide temperature range from -40 °C to +60 °C.

Advantages

The VTO3311Q-WP combines weather and vandal resistance with high-efficiency video codecs to reduce bandwidth and storage usage. Dual video compression (H.264/H.265) and standard network protocol support ensure compatibility with common video management systems. Flexible power options (12 VDC or PoE) and a broad operating temperature range allow installation in varied outdoor environments.

Suitable for

• Residential building entry and gate control
• Commercial premises door intercom
• Apartment block access control
• Outdoor installations requiring vandal- and weather-resistant door stations

Key specifications

• Image sensor: CMOS, 2 MP
• Video modes: 720p and 1080p
• Video compression: H.264 and H.265
• Night vision: IR LED illumination
• Network: Fast Ethernet; RTSP and ONVIF support
• Ingress protection: IP65
• Impact resistance: IK08
• Power: 12 VDC, 1 A or Standard PoE
• Operating temperature: -40 °C to +60 °C

How to use

Mount the VTO3311Q-WP at the entrance location following local electrical and mounting regulations; connect it to the network via Fast Ethernet and configure video stream settings (720p/1080p and H.264/H.265) in your management software. Select power method: supply 12 VDC 1 A or use PoE from a compatible switch. Configure RTSP/ONVIF credentials to integrate with existing recorders or VMS. Adjust camera angle and verify IR functionality for night-time coverage. Test intercom call and door release functions after installation.

Recommendations

For reliable long-term outdoor operation, use corrosion-resistant mounting hardware, ensure proper sealing at cable entry points, and choose PoE with surge protection if available. Regularly check firmware updates from the manufacturer and verify compatibility with your VMS to maintain secure, stable operation.
