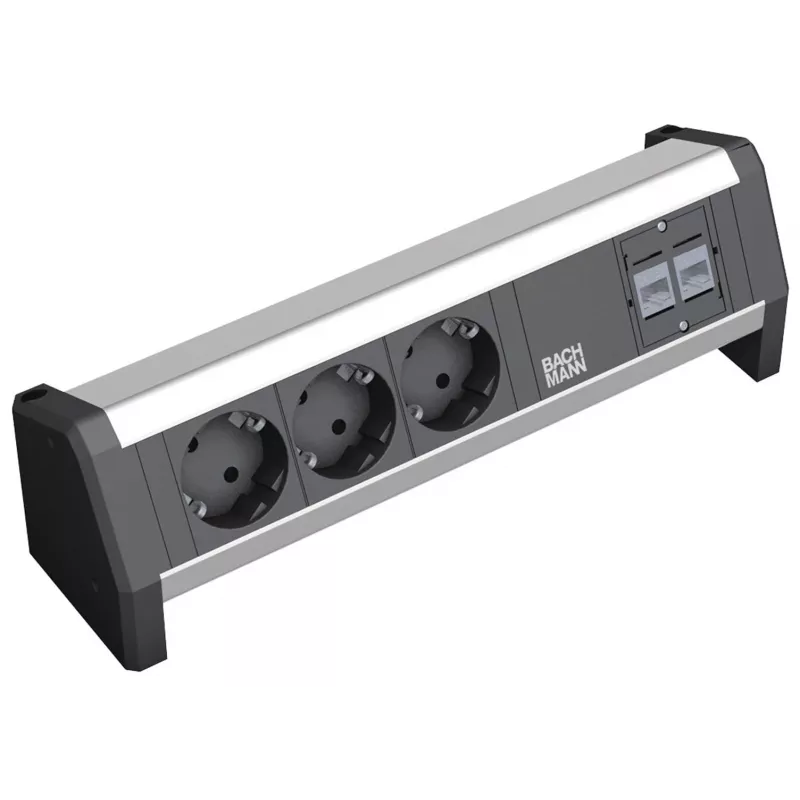

Virranjakaja Bachmann Desk 1 3 AC-pistorasiaa musta

The Bachmann Desk 1 power extension is a compact module in a black aluminum housing that provides three earthed AC outlets and two CAT5e RJ45 sockets for network connectivity. It uses a GST18i3 Wieland plug for power input and a matching GST18i3 socket for power output, allowing daisy-chaining to the next unit. The unit includes a standard mounting bracket and screws and features child-protected outlets set at a 35° angle.

Advantages

The module combines power and data connections in one compact unit, with three child-proof, earthed AC outlets and two CAT5e RJ45 ports for network cabling. The Wieland GST18i3 plug-and-socket power connection provides a secure, standard-compliant connection with touch-safe contacts and the option to replace the cable for different lengths. The design supports forwarding power to another module via the GST18i3 output.

Suitable for

• Office desks and workstations requiring AC power and Ethernet ports
• Home offices where a compact, integrated power and network solution is needed
• Installations that may require chaining multiple modules for extended power distribution

Key specifications

• AC outlets: 3 with earthing contact, child-proof, set at 35°
• Network: 2 × CAT5e RJ45 (front: socket / rear: socket)
• Power input: GST18i3 Wieland plug
• Power output: GST18i3 Wieland socket (for forwarding power)
• Included: standard mounting bracket and screws
• Product colour: Black

How to use

Mount the unit using the supplied bracket and screws according to the installation location. Connect the incoming mains cable to the GST18i3 plug on the rear panel and insert the plug securely until the catch engages. Plug devices into the three earthed AC outlets and connect Ethernet cables to the front CAT5e RJ45 sockets. If you need to feed power to another module, connect a GST18i3 cable from the power output socket to the input of the next unit.

Recommendations

Use only cables and connectors that comply with local electrical regulations and the Wieland connector specifications. Ensure the total current draw does not exceed the module's rated capacity (230 V, 16 A). Avoid exposing the unit to moisture or excessive heat and perform installation by a qualified person when required by local codes.
