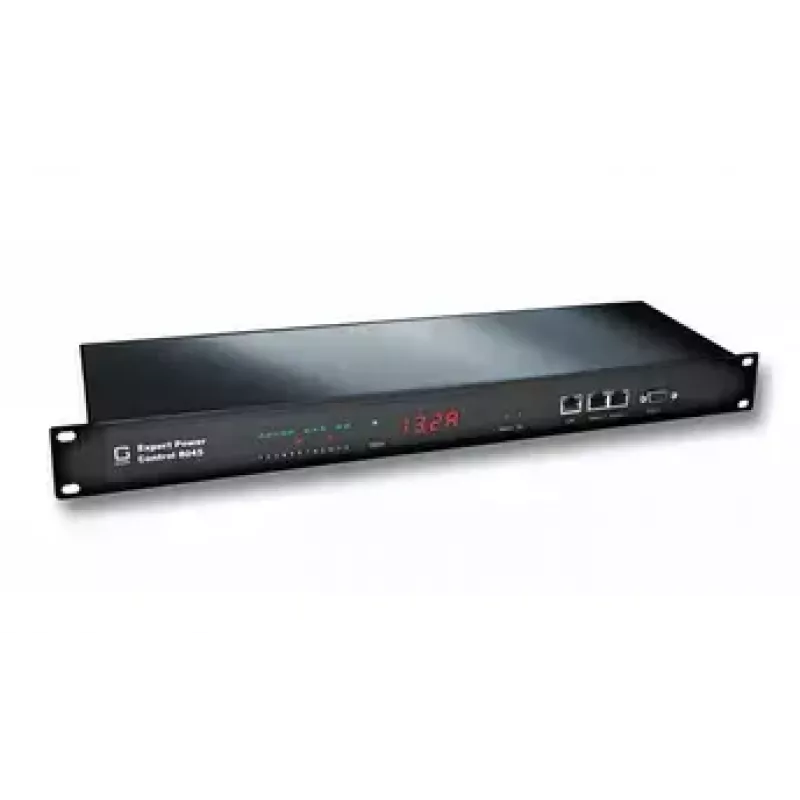

Virranjakoyksikkö Güde 8045-1 12 AC-lähtöä 1U musta

The Güde 8045-1 Power Distribution Unit is a 1U rack-mount PDU with 12 individually switched and outlet-metered C13 AC outlets and a C20 mains inlet. Designed for IT rack installations, the unit provides per-outlet switching and measurement via web interface, serial interface, SNMP (including SNMPv3), and a local button. The PDU supports IPv6, SSL, Telnet, RADIUS and Modbus TCP, and includes IEC Lock sockets to prevent accidental disconnection of IEC cables. Two energy meters per outlet and residual current (type A) measurement offer detailed power monitoring and early fault detection.

Advantages

The Güde 8045-1 combines switched outlets with outlet-level energy metering to help identify and reduce power consumption at device level. Network-capable management interfaces (web, SNMPv3, serial, Modbus TCP) and firmware upgrade via network simplify integration and maintenance. IEC Lock sockets increase operational safety by preventing accidental cable removal, while over-voltage protection and residual current monitoring improve overall rack safety and enable preventive maintenance.

Suitable for

• Server racks and network cabinets requiring per-outlet switching and measurement
• Data centres and IT rooms where remote power management and monitoring are needed
• Environments that require IEC Lock for secure cable connections
• Installations needing IPv6, SNMPv3, RADIUS or Modbus TCP integration

Key specifications

• Form factor: 1U rack-mount PDU
• Input: C20 mains inlet, nominal 230 V, max. 16 A

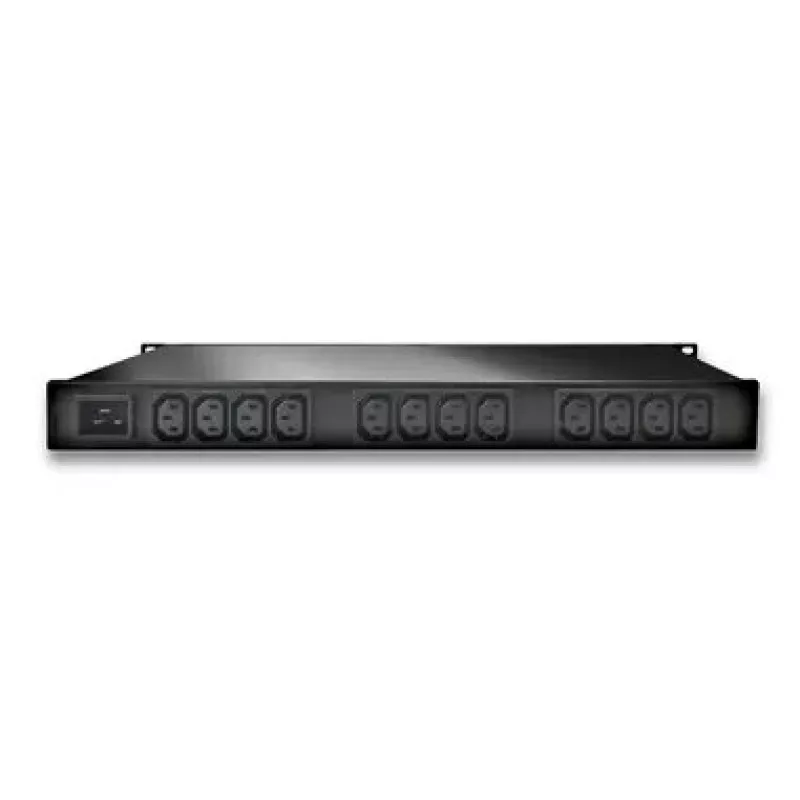

• Outlets: 12 × C13 (IEC) individually switched and outlet-metered
• Management: Web interface, serial interface, SNMP (incl. SNMPv3), IPv6, SSL, Telnet, RADIUS, Modbus TCP
• Measurement: Two energy meters per outlet, residual current measurement type A
• Security: IEC Lock sockets, over-voltage protection
• Brand: Güde, MPN: 8031-3, EAN: 4250493100787

How to use

Mount the Güde 8045-1 in a standard 19" rack (1U). Connect the C20 inlet to a suitable upstream power source rated for 230 V/16 A. Use the web interface, serial connection, SNMP or the front-panel button to switch individual outlets on or off and to view outlet-level energy measurements. Configure network settings (IPv6, SNMPv3, RADIUS, Modbus TCP) as required and perform firmware updates over the network when available. Ensure IEC cables are engaged with the IEC Lock mechanism for secure connections.

Recommendations

For reliable operation, verify that the upstream power source and rack wiring meet the PDU's 230 V / 16 A rating. Use the outlet-level meters to identify high-consumption devices and schedule firmware updates during maintenance windows. Enable residual current and over-voltage alerts to receive early warnings and perform preventive maintenance.
