Virtasovitin/jännitemuunnin MEAN WELL NID100-12, 100 W, 12 V lähtö, 20–53 V tulo

MEAN WELL NID100-12 is a compact DC‑DC non‑isolated converter that converts a wide 20–53 V input range to a regulated 12 V DC output with up to 100 W power. Designed as an open‑frame, SIP‑style PCB mount module, it provides a high current 12 V rail (7.5 A) in a shallow package (depth 50.8 mm, height 12 mm) and weighs approximately 35 g. The module includes a Remote ON/OFF function and complies with RoHS requirements, making it suitable for embedded power designs, LED drivers and mobile equipment where space and weight are constrained.

Advantages

The NID100-12 offers a wide input voltage window (20–53 V) that accommodates varying battery or bus voltages and enables use across different vehicle and industrial systems. Its open‑frame SIP package allows direct PCB mounting to save enclosure space, while the non‑isolated topology provides high conversion efficiency for heat‑sensitive applications. Remote ON/OFF control adds convenient system integration and power sequencing options. The small footprint and low weight support compact and mobile applications without compromising a stable 12 V supply.

Suitable for

• Embedded systems and single‑board computers requiring a stable 12 V supply
• LED drivers and lighting modules with 12 V input
• Mobile and vehicular equipment with 20–53 V battery or bus voltages
• Industrial control modules and instrumentation with PCB-mounted power conversion

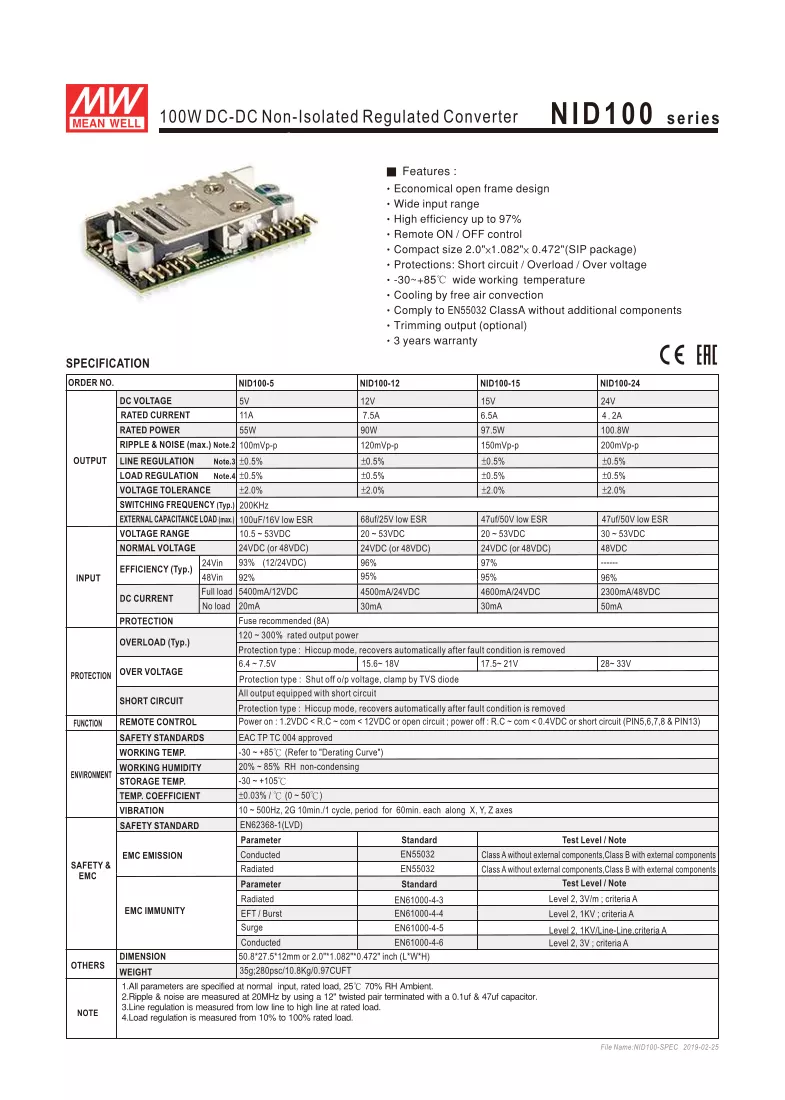

Key specifications

• Output power: 100 W
• Output voltage: 12 V DC
• Maximum output current: 7.5 A
• Input voltage range: 20–53 V DC
• Topology: non‑isolated DC‑DC converter
• Package type: open‑frame SIP PCB mount
• Size: depth 50.8 mm, height 12 mm
• Weight: approximately 35 g
• Control: Remote ON/OFF function
• Compliance: RoHS

How to use

Mount the module directly onto the PCB using the SIP pins, ensuring proper soldering and mechanical support. Connect the input terminals to a 20–53 V DC source, observing correct polarity and adequate decoupling on the input to minimize noise. Connect the 12 V output to the load, making sure the combined current demand does not exceed 7.5 A and that wiring and connectors are rated for the current. Use the Remote ON/OFF pin to control power sequencing according to the system design; follow manufacturer guidance for the required control signal levels. Provide adequate thermal management and ventilation in the final assembly to maintain reliable operation under full load.
