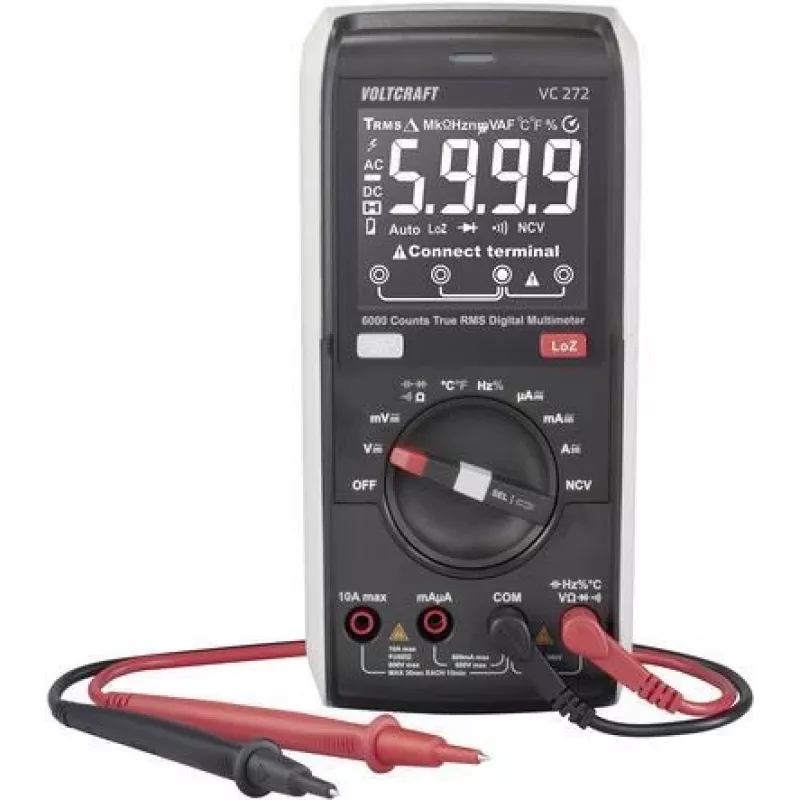

VOLTCRAFT VC272 True RMS -digitaalimittari, ISO-kalibroitu, CAT III 600 V, 6000 counts VC-13829985

Electrical troubleshooting demands precise, reliable measurements, and the VOLTCRAFT VC272 delivers exactly that. This ISO-calibrated digital multimeter offers True RMS accuracy for AC signals, a 6000-count display, and CAT III 600 V safety rating, making it suitable for professional electricians, technicians, and advanced hobbyists working on building installations and industrial equipment.

Who is it for

If you need a dependable tool for diagnosing circuits, verifying voltage, current, resistance, capacitance, frequency, or temperature, the VC272 is built for you. Its ISO calibration certificate ensures traceable accuracy, ideal for quality control, maintenance, and service environments where documentation matters.

Main features

• True RMS measurement for accurate AC readings even with distorted waveforms
• 6000-count backlit display for clear visibility in low-light conditions
• CAT III 600 V safety rating for safe use on building installations
• ISO calibration certificate included for verified precision
• Wide measurement ranges: DC/AC voltage up to 600 V, current up to 10 A, resistance up to 60 MΩ
• Additional functions: diode test, continuity buzzer, data hold, min/max, relative mode
• Auto-ranging for quick and convenient operation
• Powered by a single 9 V block battery (included)

Specifications

• Display counts: 6000
• Basic accuracy (DCV): 0.5%
• DC voltage range: 0.1 mV – 600 V
• AC voltage range: 1 mV – 600 V
• DC current range: 0.1 µA – 10 A
• AC current range: 0.1 µA – 10 A
• Resistance range: 0.1 Ω – 60 MΩ
• Capacitance range: 1 nF – 60 mF
• Frequency range: 1 Hz – 10 MHz
• Temperature range: -40 to +1000 °C
• Safety rating: CAT III 600 V
• Power supply: 1 x 9 V block battery
• Dimensions (WxDxH): 78 x 42 x 175 mm
• Weight: 280 g

Tips

Always verify the meter's operation on a known voltage source before and after measurements. For temperature readings, use a compatible K-type thermocouple. Replace the battery when the low-battery indicator appears to maintain accuracy.
