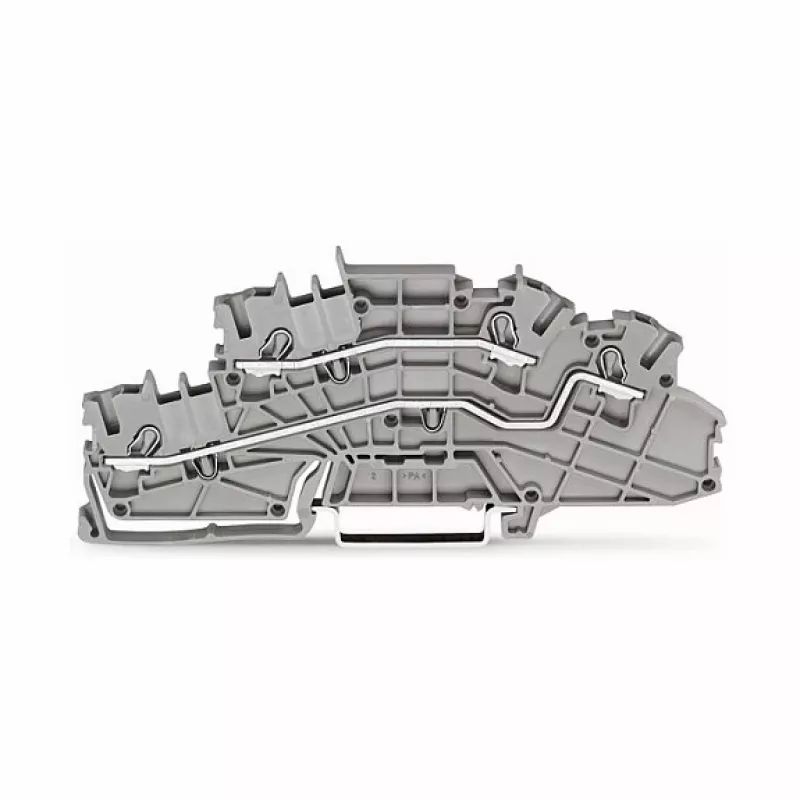

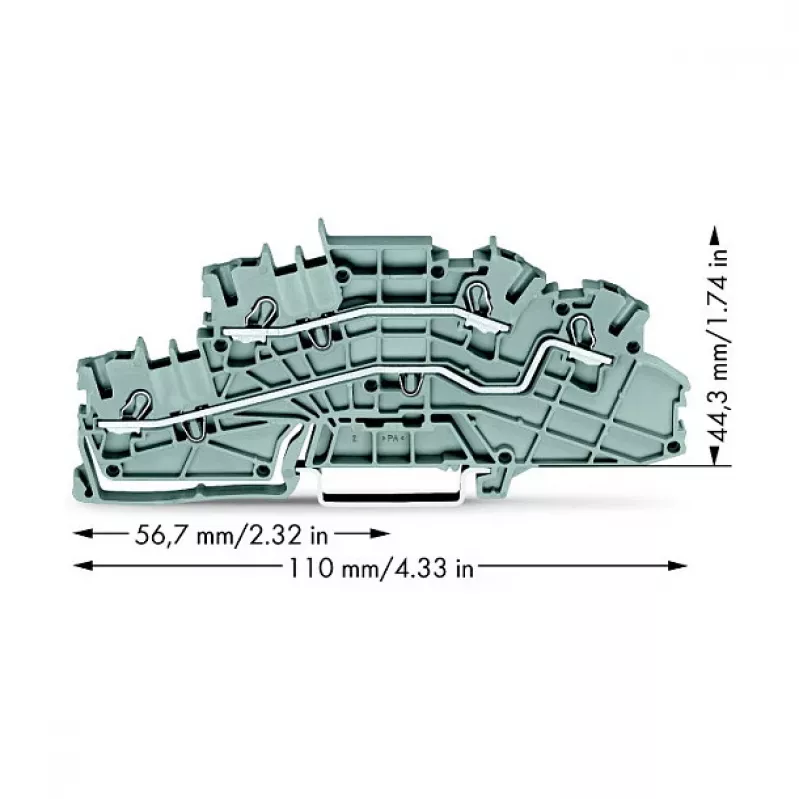

WAGO 2003-6642 läpivientiliitin, TOPJOB® S, 2-johdin, 4 mm², harmaa, 800 V, 24 A

The WAGO 2003-6642 is a high-quality through terminal block from the TOPJOB® S series, designed for reliable and maintenance-free electrical connections. With CAGE CLAMP® connection technology, it ensures fast, vibration-proof, and gas-tight wiring for solid and fine-stranded conductors up to 4 mm² (12 AWG). This 2-conductor terminal block is rated for 800 V (EN) and 24 A, making it suitable for a wide range of industrial and building installations.

Advantages

• CAGE CLAMP® spring connection for tool-free, secure wiring
• Compact design saves space on DIN-rail 35 mm
• Rated for high voltage (800 V) and current (24 A)
• Polyamide housing with UL94 V-0 flammability rating for safety
• Front-entry wiring simplifies installation and maintenance

Suitable for

• Industrial control panels and switchgear
• Building automation and distribution boards
• Lighting and power distribution systems
• Machine and equipment wiring

Key specifications

• Product Type: Through Terminal Block
• Series: TOPJOB® S
• Connection Technology: CAGE CLAMP®
• Number of Potentials: 1
• Number of Connection Points: 2
• Nominal Cross-section (Solid): 0.25 - 4 mm² (22 - 12 AWG)
• Nominal Cross-section (Fine-stranded): 0.25 - 4 mm² (22 - 12 AWG)
• Nominal Voltage (EN 60947-7-1): 800 V
• Nominal Voltage (UL 1059): 600 V
• Nominal Current (EN 60947-7-1): 24 A
• Nominal Current (UL 1059): 20 A
• Rated Impulse Voltage: 8 kV
• Pollution Degree: 3
• Insulating Material: Polyamide (PA 66)
• Color: Gray
• Mounting Type: DIN-rail 35 x 7.5 mm / 35 x 15 mm
• Stripping Length: 9 - 11 mm
• Wiring Type: Front-entry wiring
• Flammability Rating: UL94 V-0
• Approvals: VDE, UL, CSA, EAC, KEMA/KEUR

Recommendations

For optimal performance, use with WAGO marking strips and end brackets. Ensure proper stripping length (9-11 mm) for reliable connection. Suitable for use in environments with pollution degree 3.
