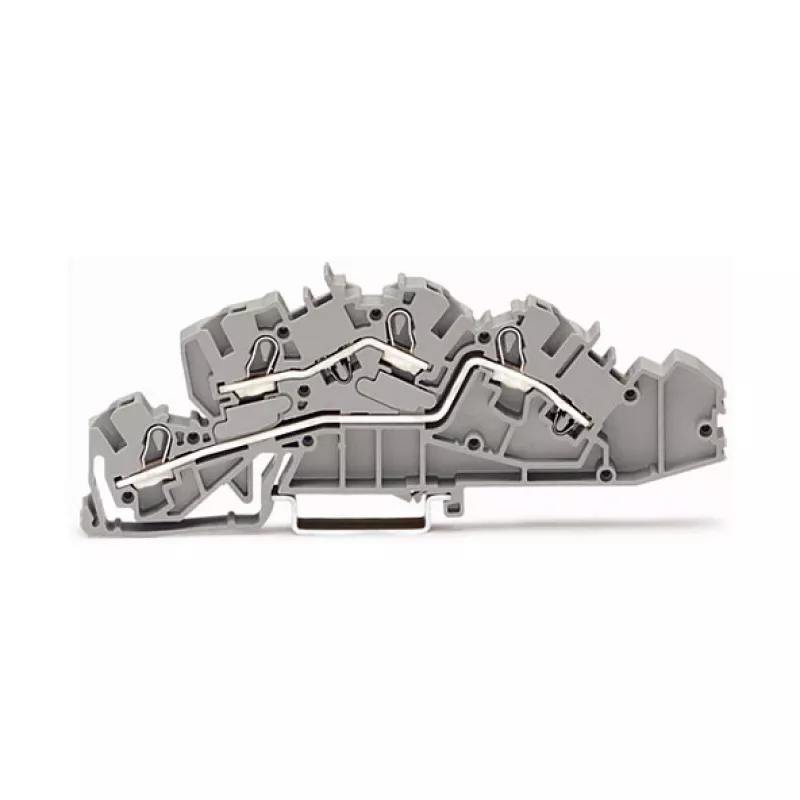

WAGO 2005-7642 läpivientiliitin, 4 mm², 32 A, 400 V, harmaa, CAGE CLAMP

The WAGO 2005-7642 is a high-quality through terminal block designed for reliable and maintenance-free electrical connections. With a rated cross-section of 4 mm² and a rated current of 32 A at 400 V, it is ideal for industrial control cabinets and building installations. The push-in CAGE CLAMP® connection technology ensures fast and secure wiring without tools.

Advantages

• Tool-free push-in connection for solid and fine-stranded conductors
• Compact design with 6.2 mm width saves space on DIN-rail
• High reliability with rated impulse voltage of 6 kV and pollution degree 3
• Vibration-proof and maintenance-free CAGE CLAMP® technology

Suitable for

• Industrial automation and control systems
• Building electrical installations
• Distribution boards and junction boxes
• Machine building and panel wiring

Key specifications

• Rated cross-section: 4 mm²
• Rated current: 32 A
• Rated voltage: 400 V
• Rated impulse voltage: 6 kV
• Connection: CAGE CLAMP® push-in
• Number of connection points: 2
• Number of potentials: 1
• Solid conductor: 0.25…6 mm² (22…10 AWG)
• Fine-stranded conductor: 0.25…4 mm² (22…12 AWG)
• Stripping length: 10…12 mm
• Mounting: DIN-rail 35 mm
• Color: Gray
• Housing material: Polyamide (PA)
• Pollution degree: 3
• Overvoltage category: III
• Standards: EN 60947-7-1
• Fire load: 0.22 MJ

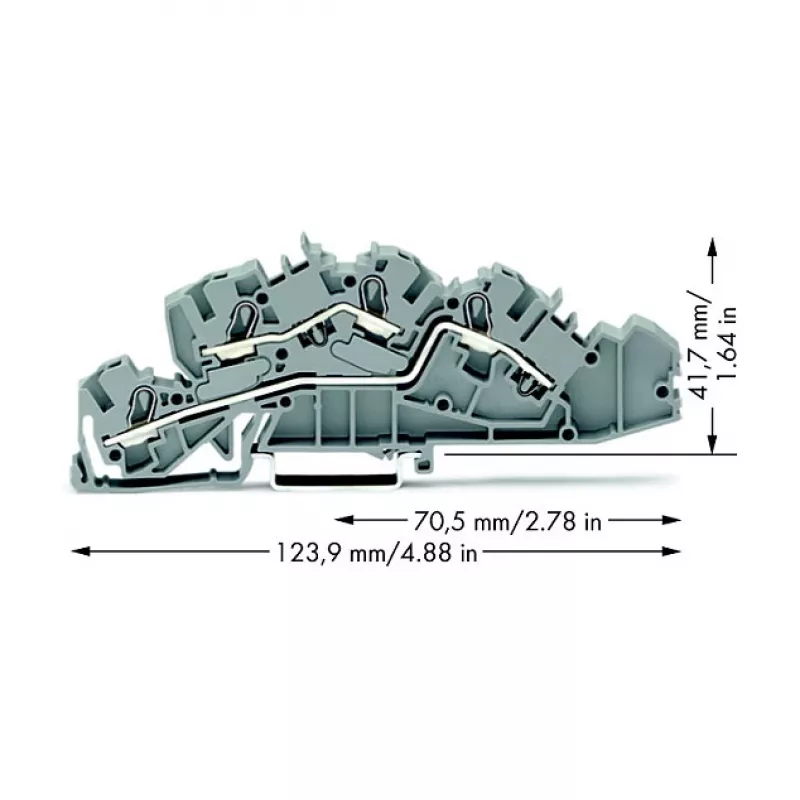

• Dimensions (WxHxD): 6.2 x 124 x 41.7 mm

Recommendations

For optimal performance, use with WAGO marking strips and accessories. Ensure proper stripping length and conductor preparation for reliable connections.
