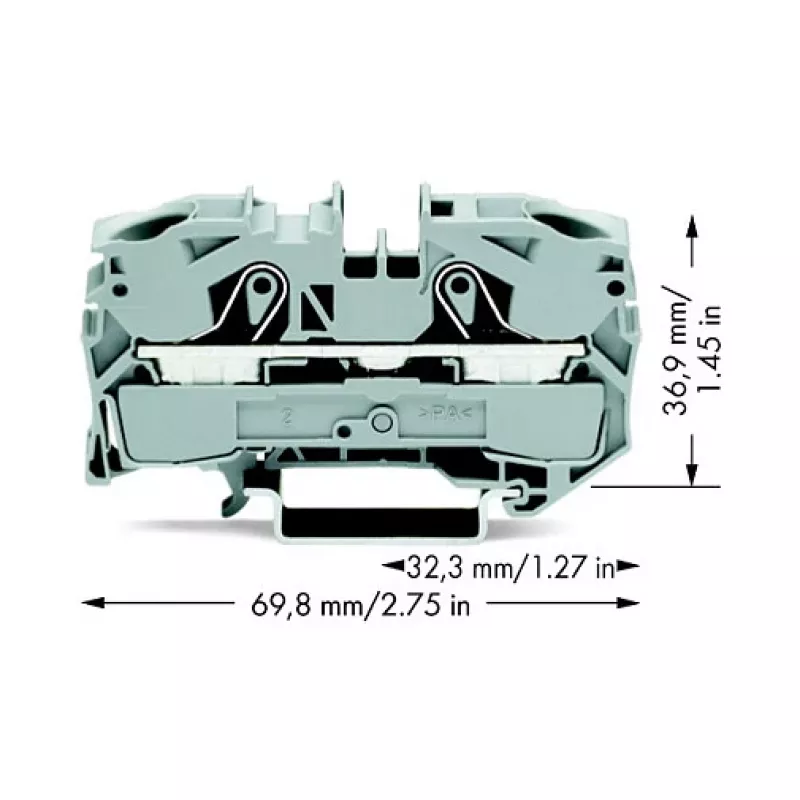

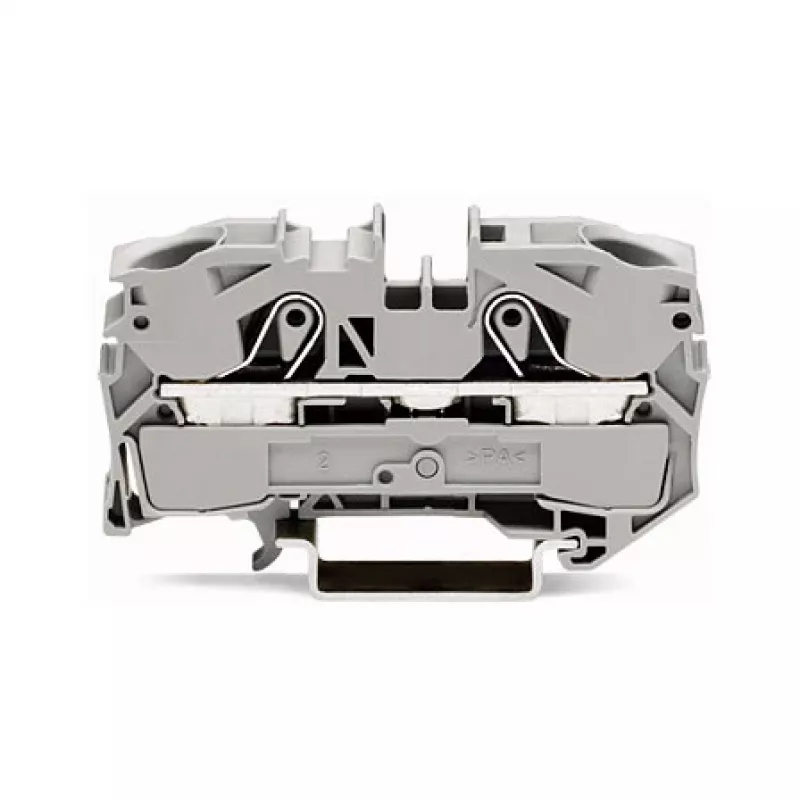

WAGO 2016-1201 läpivientiliitin, 16 mm², 800 V, harmaa, Push-in CAGE CLAMP

The WAGO 2016-1201 is a high-quality through terminal block designed for reliable and efficient electrical connections. With a nominal cross-section of 16 mm² and a rated voltage of 800 V, it is ideal for industrial and commercial applications. The Push-in CAGE CLAMP® connection technology ensures fast, tool-free wiring, saving time and labor costs.

Advantages

• Tool-free Push-in connection for solid and fine-stranded conductors
• Compact design saves space on DIN-rail 35
• High rated current of 76 A for demanding loads
• Wide temperature range from -35 to +85 °C for versatile use
• UL94 V0 flammability rating for enhanced safety

Suitable for

• Industrial control panels
• Building automation systems
• Power distribution
• Machine wiring

Key specifications

• Connection Technology: Push-in CAGE CLAMP®
• Nominal Cross Section: 16 mm²
• Solid Conductor Size: 0.5 - 25 mm² (20 - 4 AWG)
• Fine-Stranded Conductor Size: 0.5 - 16 mm² (20 - 6 AWG)
• Nominal Voltage (UN): 800 V
• Nominal Current (IN): 76 A
• Rated Surge Voltage (Uimp): 8 kV
• Mounting Type: DIN-rail 35
• Color: Gray
• Insulating Material: Polyamide (PA)
• Flammability Rating: UL94 V0
• Operating Temperature: -35 to +85 °C
• Stripping Length: 20 - 22 mm
• Number of Potentials: 1
• Pollution Degree: 3
• Wiring Type: Front-entry wiring
• Approvals: UL, CSA, VDE, EAC

Recommendations

For optimal performance, use with WAGO marking strips and accessories. Ensure proper stripping length for secure connections.
