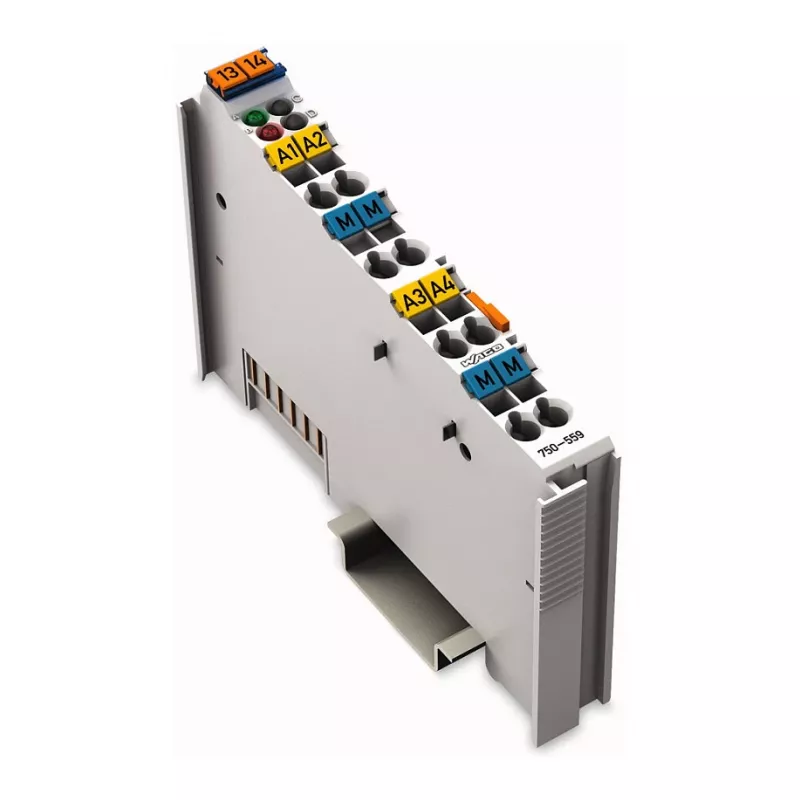

WAGO 750-559 analogialähtömoduuli - 4 kanavaa, 0-10 V, 12 bit, 500 V järjestelmäerotus, 10 ms vasteaika, CAGE CLAMP

The WAGO 750-559 is a high-performance analog output module designed for the WAGO I/O System 750. It provides four voltage outputs with a range of 0-10 V and a resolution of 12 bits, ensuring precise control in industrial automation applications. The module features a system isolation voltage of 500 V and a fast response time of 10 ms, making it suitable for demanding environments.

Advantages

• High precision with 12-bit resolution for accurate analog output
• Robust isolation of 500 V for reliable operation in noisy environments
• Fast response time of 10 ms for real-time control
• CAGE CLAMP® connection technology for secure and maintenance-free wiring
• Compact design with DIN-rail mounting for easy installation

Suitable for

• Industrial automation and process control systems
• Building automation and HVAC control
• Machine control and robotics
• Test and measurement equipment

Key specifications

• Number of analog outputs: 4
• Output signal type: Voltage
• Output voltage range: 0-10 V
• Resolution: 12 Bit
• System isolation voltage: 500 V (0.5 kV)
• Response time: 10 ms
• Connection technology: CAGE CLAMP®
• Field supply voltage: 24 VDC
• Internal current consumption: 40 mA
• External current consumption: 100 mA
• Mounting method: DIN-rail
• Operating temperature range: 0 to 55 °C
• Storage temperature range: -25 to 85 °C
• Protection class: IP20
• Dimensions (W x H x D): 12 x 100 x 69.8 mm

Recommendations

For optimal performance, use the WAGO 750-559 with a compatible WAGO I/O System 750 bus coupler and configure it via WAGO-I/O-PRO or GSDML files. Ensure proper field supply voltage (24 VDC) and observe the operating temperature range. The module supports diagnostic functions such as short circuit and wire break detection per channel.
