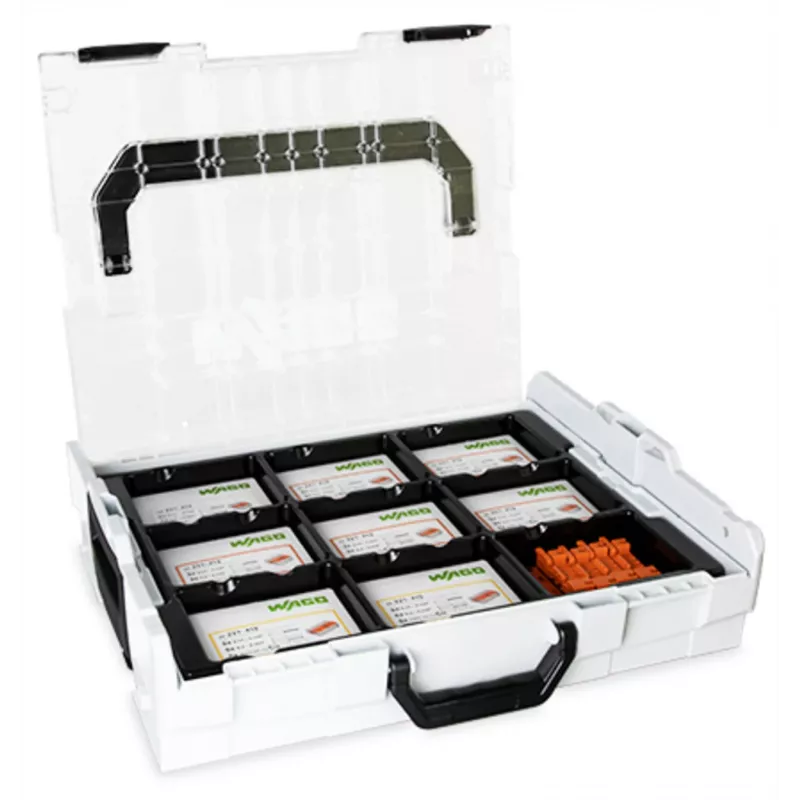

WAGO 887-927 kompakti liitinsarja L-BOXX 102:ssa, 240 kpl, 221-sarja

Electrical installations often require a variety of connector sizes and pole counts, and sourcing them individually wastes time and money. This WAGO assortment solves that by packing 240 lever-operated connectors from the trusted 221 series into a single, rugged L-BOXX 102 case. You get the exact mix needed for solid, stranded, and fine-stranded conductors from 0.2 to 6 mm², all in one portable kit.

Who is it for

Electricians, panel builders, and maintenance technicians who need a reliable, organised connector set on site. The L-BOXX 102 integrates with other L-BOXX cases for efficient transport and storage.

Main features

• 240 connectors in 2-, 3-, and 5-pole configurations
• Lever-operated CAGE CLAMP® technology for fast, tool-free wiring
• Accepts solid, stranded, and fine-stranded conductors
• Clear polycarbonate housing for visual inspection
• Compact L-BOXX 102 storage case for portability

Specifications

• Connector series: WAGO 221
• Total connectors: 240 pieces
• Conductor cross-section (small connectors): 0.2 - 4 mm² (24 - 12 AWG)
• Conductor cross-section (large connectors): 0.5 - 6 mm² (20 - 10 AWG)
• Rated voltage: 450 V
• Rated current (4 mm² connectors): 32 A
• Rated current (6 mm² connectors): 41 A
• Connection technology: Lever-operated CAGE CLAMP®
• Housing material: Polycarbonate (PC)
• Contact material: Electrolytic copper
• Max. continuous operating temperature: 85 °C
• Flammability rating: UL 94 V-2
• Included 2-pole connectors: 221-412 (100 pcs), 221-612 (25 pcs)
• Included 3-pole connectors: 221-413 (50 pcs), 221-613 (25 pcs)
• Included 5-pole connectors: 221-415 (25 pcs), 221-615 (15 pcs)

Tips

Keep the case closed when not in use to protect connectors from dust and moisture. For frequent use, consider pairing with a WAGO lever tool for easier operation in tight spaces.
