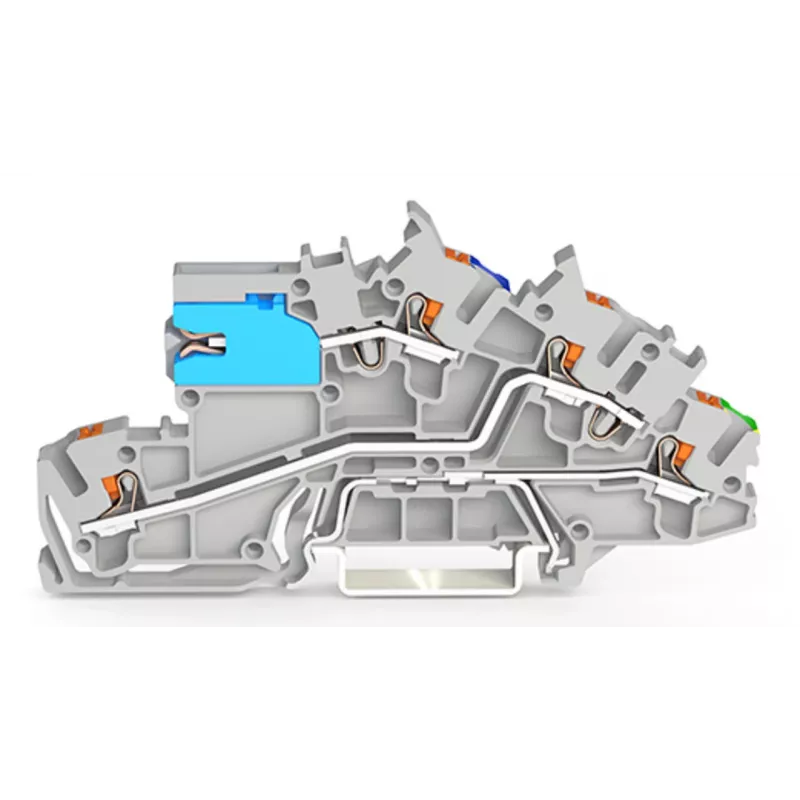

WAGO asennus-rimaliitin 2203-7641 painonapilla 2,5 mm² harmaa

The WAGO Installation Floor Terminal Block 2203-7641 is a high-quality, compact terminal block designed for installation distribution boards. Featuring PUSH WIRE® and Push-in CAGE CLAMP® connection technologies, it ensures fast, tool-free wiring for solid and fine-stranded conductors. With a rated voltage of 400 V and rated current of 24 A, it is suitable for a wide range of electrical installations.

Advantages

Tool-free operation with push-button actuation saves time and effort. The transparent housing allows for easy visual inspection of conductor insertion. Compact design saves space on DIN-rail TS 35. High reliability with UL94 V-0 flammability rating.

Suitable for

• Installation distribution boards
• Building automation
• Lighting control systems
• General electrical wiring

Key specifications

• Nominal Cross Section: 2.5 mm²
• Connection Technology: PUSH WIRE® (Installation Side), Push-in CAGE CLAMP® (Main Side)
• Actuation Type: Push-button
• Number of Potentials: 2
• Number of Clamping Units per Potential: 3
• Color: Grey
• Rated Voltage (EN): 400 V
• Rated Impulse Voltage (EN): 6 kV
• Rated Current (EN): 24 A
• Conductor Size (Installation Side, Solid): 0.5 - 2.5 mm² / 20 - 14 AWG
• Conductor Size (Installation Side, Fine-Stranded with Ferrule): 1 - 2.5 mm² / 18 - 14 AWG
• Conductor Size (Main Side, Solid): 0.5 - 2.5 mm² / 20 - 14 AWG
• Conductor Size (Main Side, Fine-Stranded with Ferrule): 0.5 - 2.5 mm² / 20 - 14 AWG
• Mounting Type: DIN-rail TS 35
• Insulating Material: Polyamide (PA 66)
• Flammability Rating: UL94 V-0
• Pollution Degree: 2

Recommendations

For optimal performance, use with WAGO installation connectors and tools. Ensure proper conductor stripping length as per manufacturer guidelines.
