Weidmüller 1020580000 - 16 mm² - 62,5 mm - 60 mm - ruuviliitäntäinen DIN-kiskoliitin - tummanbeige

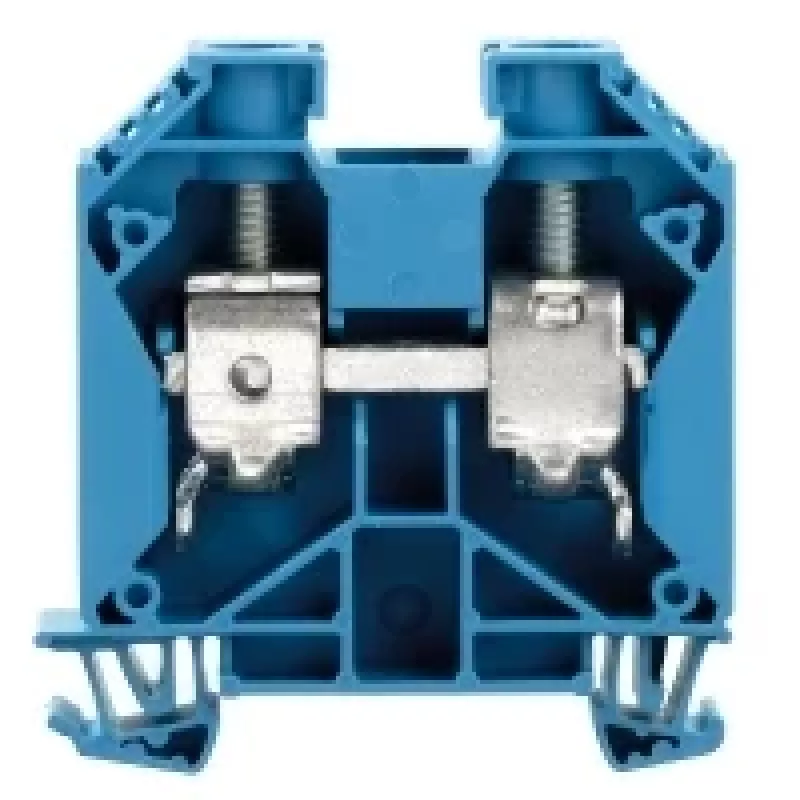

The Weidmüller 1020580000 is a high-quality screw connection terminal block designed for reliable and secure electrical connections. With a rated cross-section of 16 mm² and a rated voltage of 1000 V, it is suitable for a wide range of industrial applications. The terminal block features a compact design with dimensions of 62.5 mm height and 60 mm width, making it ideal for space-saving installations on DIN rail TS 35.

Advantages

This terminal block offers several advantages: robust screw connection technology ensures a secure and vibration-resistant connection; wide operating temperature range from -50 °C to +120 °C; high flammability rating UL 94 V-0 for enhanced safety; and multiple international approvals including CE, cURus, EAC, KEMA, ATEX, and IECEx.

Suitable for

• Industrial control panels
• Building automation
• Power distribution systems
• Machine building
• Railway and transportation applications

Key specifications

• Connection Technology: Screw Connection
• Rated Cross-Section (Rigid): 16 mm²
• Rated Cross-Section (Flexible): 16 mm²
• Rated Voltage (IEC): 1000 V
• Rated Current (IEC): 76 A
• Number of Connections: 2
• Number of Potentials: 1
• Mounting Type: DIN Rail TS 35
• Insulating Material: Wemid (PA 66)
• Color: Dark Beige
• Operating Temperature Range: -50 °C to +120 °C
• Stripping Length: 18 mm
• Clamping Screw Size: M5
• Recommended Torque: 2.5 - 3 Nm
• Pollution Degree: 3
• Overvoltage Category: III
• Flammability Rating (UL 94): V-0
• Rated Impulse Withstand Voltage: 8 kV
• Approvals: CE, cURus, EAC, KEMA, ATEX, IECEx

Recommendations

For optimal performance, ensure proper torque application (2.5-3 Nm) and use appropriate wire stripping length of 18 mm. This terminal block is ideal for demanding environments where reliability and safety are paramount.
