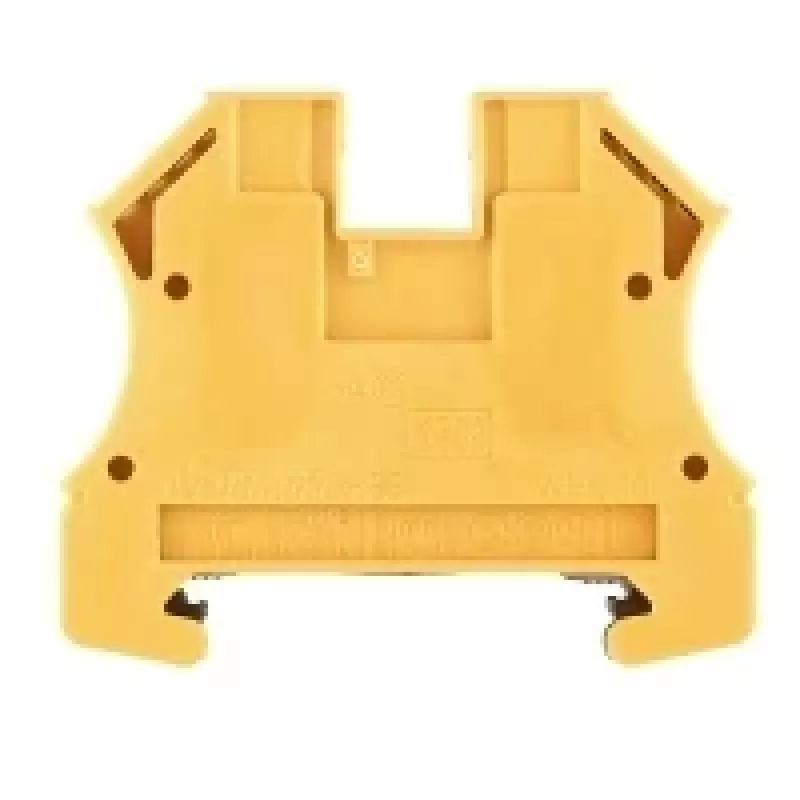

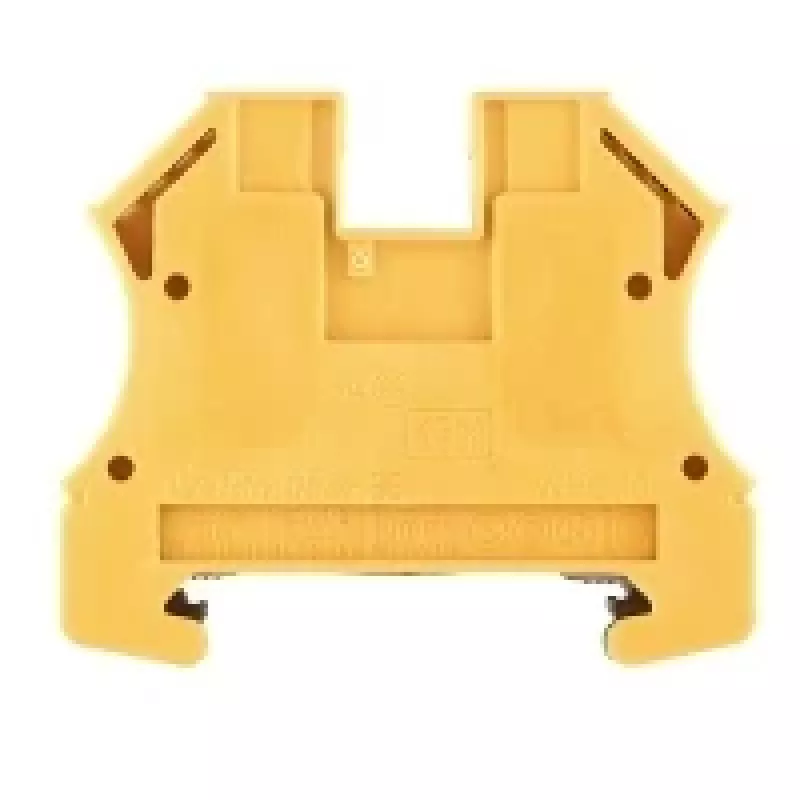

Weidmüller 1010300000 - 9,9 mm - 46,5 mm - 56 mm

The Weidmüller 1010300000 is a high-quality feed-through terminal block designed for reliable and secure electrical connections in industrial applications. With a compact design and robust construction, it ensures efficient wiring and long-term performance.

Advantages

This terminal block features a screw connection technology that provides a secure and vibration-resistant connection. Its compact dimensions (9.9 mm width, 46.5 mm height, 56 mm depth) save space on the DIN rail. The blue colour coding aids in identification, and the Wemid insulating material offers excellent thermal and mechanical properties.

Suitable for

• Industrial control panels
• Building automation systems
• Distribution boards
• Machine wiring

Key specifications

• Connection Technology: Screw Connection
• Number of Potentials: 1
• Number of Levels: 1
• Number of Connections per Potential: 3
• Rated Cross-Section (IEC): 2.5 mm²
• Rated Voltage (IEC): 800 V
• Rated Current (IEC): 24 A
• Mounting Type: DIN Rail TS 35
• Colour: Blue
• Insulating Material: Wemid (PA 66)
• Flammability Rating (UL 94): V-0
• Operating Temperature Range: -50 to +120 °C
• Stripping Length: 10 mm
• Clamping Range (Solid): 0.5 - 4 mm²
• Clamping Range (Flexible): 0.5 - 4 mm²
• Torque for Screw: 0.4 - 0.8 Nm
• Screw Thread: M 2.5
• Pollution Degree: 3
• Approvals: cULus, VDE, CSA, EAC

Recommendations

For optimal performance, use with appropriate screwdrivers and ensure proper torque settings. Suitable for use in environments with pollution degree 3.
