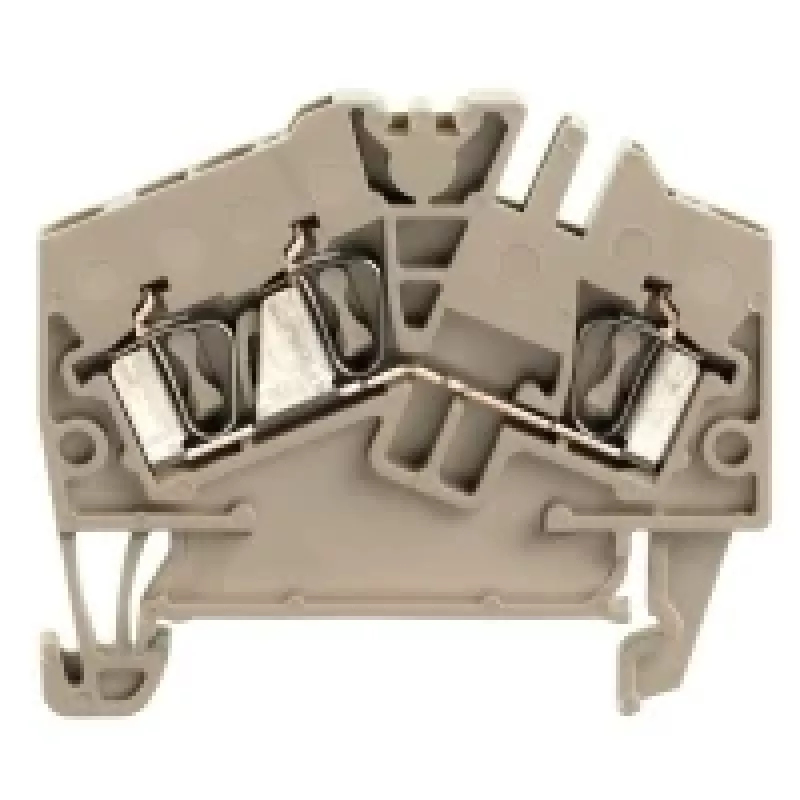

Weidmüller 1706010000 - beige - 2,5 mm² - 50,5 mm - 6,7 g - 100 kpl

The Weidmüller 1706010000 is a high-quality feed-through terminal block designed for reliable and secure electrical connections. With a rated cross-section of 2.5 mm² and a rated voltage of 800 V (IEC), this terminal block is ideal for industrial control panels, distribution boards, and automation systems. Its beige insulating material (Wemid) ensures excellent thermal and electrical performance, while the screw connection type provides a robust and vibration-resistant termination. Packaged in a convenient quantity of 100 pieces, this terminal block is a cost-effective solution for large-scale installations.

Advantages

This terminal block offers several key benefits: easy and secure screw connection, wide operating temperature range from -50 °C to +120 °C, and compliance with international standards (IEC and UL/CSA). The compact design saves space on DIN rails, and the beige color allows for easy identification in crowded panels.

Suitable for

• Industrial control cabinets
• Building automation systems
• Power distribution panels
• Machine wiring

Key specifications

• Connection Type: Screw Connection
• Rated Cross-section (IEC): 2.5 mm²
• Rated Voltage (IEC): 800 V
• Rated Current (IEC): 24 A
• Rated Cross-section (UL/CSA): 12 AWG
• Rated Voltage (UL/CSA): 600 V
• Rated Current (UL/CSA): 20 A
• Number of Potentials: 1
• Number of Connections: 2
• Mounting Type: DIN Rail TS 35
• Insulating Material: Wemid
• Color: Beige
• Stripping Length: 10 mm
• Clamping Range (Solid): 0.5 - 4 mm²
• Clamping Range (Flexible): 0.5 - 2.5 mm²
• Torque: 0.4 - 0.8 Nm
• Operating Temperature: -50 °C to +120 °C
• Pollution Degree: 3
• Overvoltage Category: III
• Packaging Quantity: 100 pieces

Recommendations

For optimal performance, use with appropriate ferrules and ensure proper torque settings. This terminal block is suitable for use in environments with pollution degree 3 and overvoltage category III.
