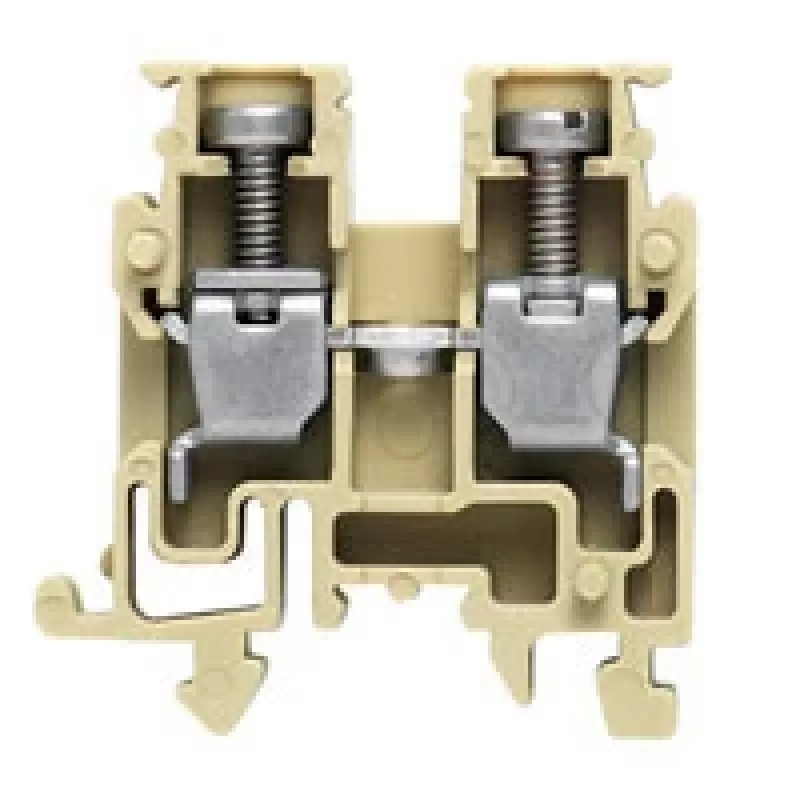

Weidmüller läpivientiliitin, ruuviliitäntä, 2,5 mm², 800 V, 24 A, tummanbeige, DIN-kisko TS 35

The Weidmüller 0697160000 is a high-quality feed-through terminal block designed for reliable and secure electrical connections in industrial applications. With a screw connection technology and a nominal cross-section of 2.5 mm², this terminal block ensures a stable and durable connection for wires up to 4 mm². Rated for 800 V and 24 A, it is suitable for a wide range of control and power distribution systems.

Advantages

This terminal block offers easy and tool-free installation on DIN rail TS 35, saving time and effort. The Wemid insulation material provides excellent thermal and electrical properties, while the UL 94 V-0 flammability rating ensures high safety standards. The compact design with two connections and one potential simplifies wiring and reduces space requirements in control cabinets.

Suitable for

• Industrial control panels and switchgear
• Building automation and distribution boards
• Machine and plant engineering
• Power supply and signal distribution

Key specifications

• Product Type: Feed-Through Terminal Block
• Connection Technology: Screw Connection
• Nominal Cross-Section: 2.5 mm²
• Rated Voltage (IEC): 800 V
• Rated Current (IEC): 24 A
• Number of Connections: 2
• Number of Potentials: 1
• Mounting Type: DIN Rail TS 35
• Insulation Material: Wemid
• Color: Dark Beige
• Operating Temperature Range: -50 °C to +120 °C
• Flammability Rating: UL 94 V-0
• Stripping Length: 10 mm
• Clamping Range (Solid): 0.5 - 4 mm²
• Clamping Range (Stranded): 0.5 - 4 mm²
• Recommended Torque: 0.4 - 0.8 Nm
• Pollution Degree: 3
• Overvoltage Category: III

Recommendations

For optimal performance, use with appropriate screwdrivers and ensure proper torque settings. Suitable for use in environments with pollution degree 3 and overvoltage category III. Always follow local electrical codes and regulations.
