Weidmüller WQV 2.5/3 poikittaisliitin, 3-napainen, 2,5 mm², keltainen, polyamidi, UL94 V-0, 50 kpl

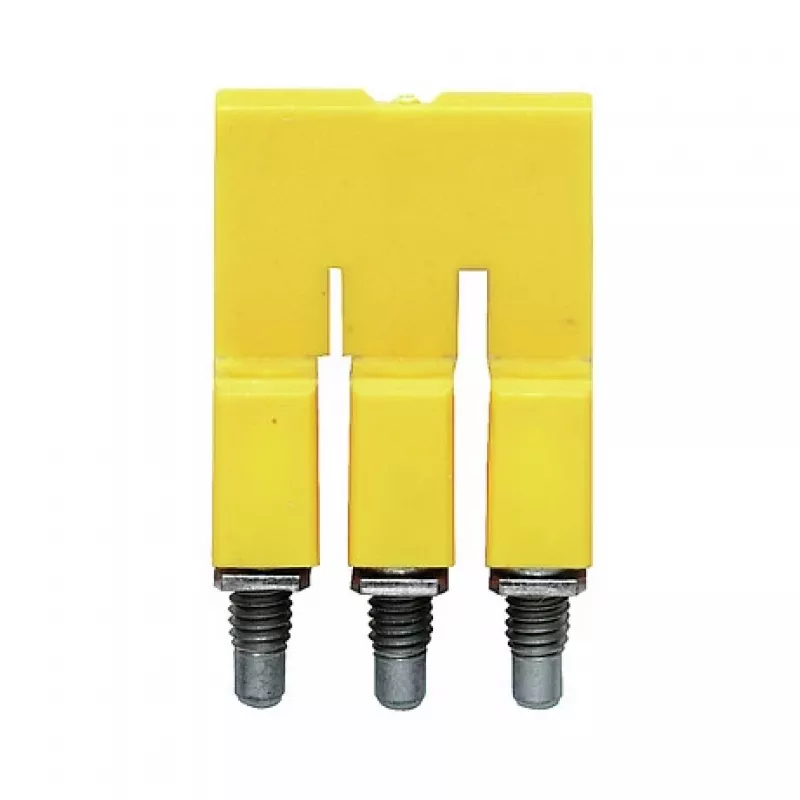

The Weidmüller WQV 2.5/3 is a high-quality cross-connector (jumper) designed for use with Weidmüller W-Series terminal blocks. It enables efficient and reliable electrical bridging of adjacent terminals, saving time and reducing wiring errors. This 3-pole version is rated for 800 V and 24 A, with a rated cross-section of 2.5 mm². The connector is made of durable polyamide (PA) with a yellow color and a flammability rating of UL94 V-0, ensuring safety in demanding environments. It operates over a wide temperature range from -60 °C to 130 °C. Supplied in a pack of 50 pieces, it is RoHS compliant.

Advantages

• Simplifies wiring by creating electrical connections between adjacent terminals without additional wires.
• Saves installation time and reduces potential for errors.
• Compact design fits seamlessly into terminal block assemblies.
• High temperature resistance and flame retardant for industrial applications.

Suitable for

• Industrial control panels
• Building automation systems
• Power distribution
• Machine building
• Any application using Weidmüller W-Series terminal blocks

Key specifications

• Product Type: Cross-connector / Jumper
• Number of Poles: 3
• Compatible Terminal Block Series: Weidmüller W-Series
• Rated Cross-section: 2.5 mm²
• Rated Voltage (IEC): 800 V
• Rated Current (IEC): 24 A
• Material: Polyamide (PA)
• Color: Yellow
• Operating Temperature Range: -60 to 130 °C
• Flammability Rating: UL94 V-0
• Insulation: Insulated
• Mounting Type: Plug-in
• Packaging Unit: 50 pieces
• RoHS Compliant: Yes

Recommendations

For optimal performance, use with Weidmüller W-Series terminal blocks rated for 2.5 mm². Ensure proper installation according to manufacturer guidelines.
