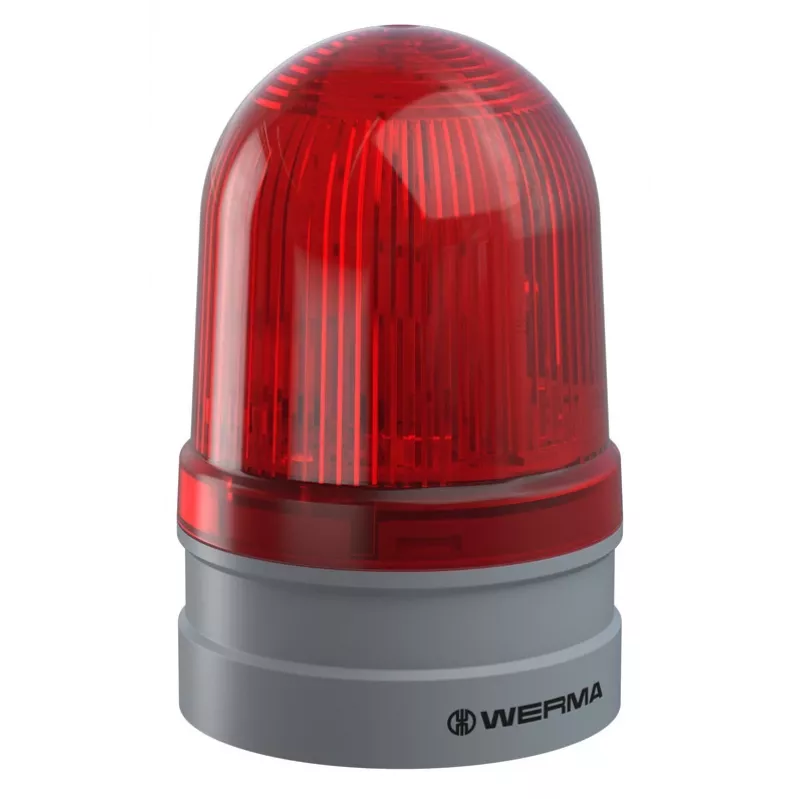

WERMA Signaltechnik Midi TwinFLASH 261.120.70 punainen xenon-merkkivalo, 12/24V AC/DC, IP65

For industrial signalling where a single flash is not enough, the WERMA Midi TwinFLASH 261.120.70 delivers a distinctive double flash that cuts through noise and grabs attention. Unlike standard beacons that emit one pulse per cycle, this unit fires two rapid flashes in quick succession, making it ideal for critical alarms, process interruptions, or safety warnings that must not be ignored. The red xenon tube produces a bright, high-contrast burst visible even in well-lit environments, while the compact Midi housing fits easily on control panels, machine guards, and conveyor lines.

Highlights

• TwinFLASH technology: double flash at 1 Hz for unmistakable signalling
• Xenon light source with effective intensity of approx. 15 cd
• Wide voltage range: 12/24 V AC/DC for flexible integration
• Robust IP65 protection against dust and water jets
• Long service life: up to 5 million flashes
• Polycarbonate housing and lens for impact resistance
• Base mounting with M20 cable entry and screw terminals

In daily use

Installation is straightforward: mount the unit via its base, connect wires to the screw terminals (max. 1.5 mm²), and route the cable through the M20 gland. The red lens is clearly visible from all sides, and the double flash pattern is instantly recognisable, reducing the chance of confusion with other indicators. With a current draw of only 150 mA at 12 V or 75 mA at 24 V, it can be powered directly from PLC outputs or small power supplies without additional relays. The wide operating temperature range from -30°C to +50°C ensures reliable performance in cold storage, outdoor kiosks, or hot machinery areas.

Full specifications

• Brand: WERMA SIGNALTECHNIK
• Model: 261.120.70
• MPN: 261.120.70
• EAN: 4049787043776
• Light type: TwinFLASH (double flash)
• Light source: Xenon flash tube
• Light colour: Red
• Operating voltage: 12/24 V AC/DC
• Current consumption: 150 mA at 12 V, 75 mA at 24 V
• Flash frequency: 1 Hz (double flash)
• Effective light intensity: approx. 15 cd
• Service life: 5 x 10^6 flashes
• Protection class: IP65
• Housing material: Polycarbonate (PC)
• Lens material: Polycarbonate (PC)
• Mounting type: Base mounting
• Operating temperature: -30°C to +50°C
• Connection type: Screw terminal (max. 1.5 mm²)
• Cable entry: M20
• Approvals: CE, UL, cUL
• Housing colour: Black (base)

Final note

When your process demands a signal that stands apart, the Midi TwinFLASH offers both visual impact and dependable operation in a compact, easy-to-install package.
