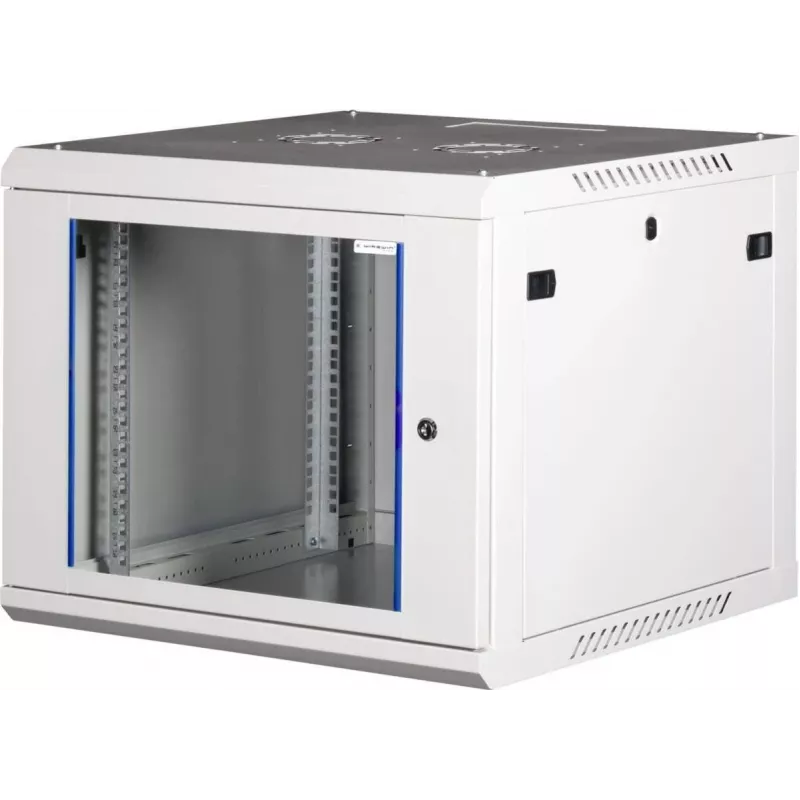

Wirewin 19 tuuman seinäkotelo, yksiosainen, Pro 3. sukupolvi, 600x600 mm, vaaleanharmaa (WCAB PS3 600X600X4U)

This 4U wall-mount cabinet supports a static load capacity of 60 kg, making it suitable for housing network equipment in space-constrained environments.

Overview

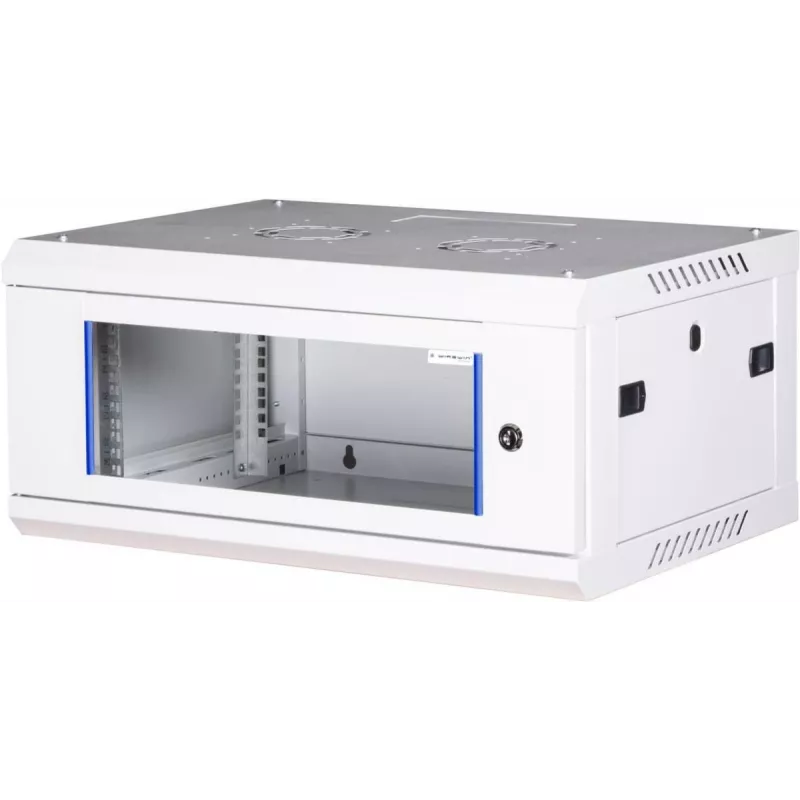

The Wirewin 19" Wall-Mount Cabinet, One-Piece, Pro 3rd Generation, 600x600mm, Light Grey (WCAB PS3 600X600X4U) is a wall-mountable enclosure designed for 19-inch rack equipment. It features a one-piece welded frame constructed from SPCC cold rolled steel with a powder-coated finish in light grey (RAL 7035). The cabinet includes a tempered glass front door with lock, removable and lockable side panels, and top and bottom cable entry with brush strips. Passive ventilation is provided, with fan cutouts on the top. The mounting rails are 19-inch and depth adjustable. External dimensions: 600 mm width, 600 mm depth, 230 mm height. Protection class IP20. Complies with RoHS and CE.

What stands out

• 4U rack units with 19-inch mounting rails, depth adjustable
• One-piece welded frame for rigidity
• SPCC cold rolled steel with powder-coated finish
• Tempered glass front door with lock
• Removable, lockable side panels
• Top and bottom cable entry with brush strips
• Passive ventilation with fan cutouts on top
• Static load capacity: 60 kg
• Protection class IP20
• Colour: Light Grey (RAL 7035)

Technical details

• Rack Units: 4U
• Mounting Type: Wall Mount
• External Width: 600 mm
• External Depth: 600 mm
• External Height: 230 mm
• Construction Type: One-piece welded frame
• Material: SPCC Cold Rolled Steel
• Color: Light Grey (RAL 7035)
• Front Door: Tempered Glass Door with Lock
• Side Panels: Removable, Lockable Side Panels
• Cable Entry: Top and Bottom with Brush Strips
• Ventilation: Passive Ventilation, Fan Cutouts on Top
• Load Capacity (Static): 60 kg
• Protection Class: IP20
• Mounting Rails: 19-inch, Depth Adjustable
• Surface Finish: Powder Coated
• Compliance: RoHS, CE
• Generation: Pro 3rd Generation

Our verdict

A robust and secure wall-mount cabinet for 19-inch equipment, offering a solid steel construction, lockable access, and practical cable management.
