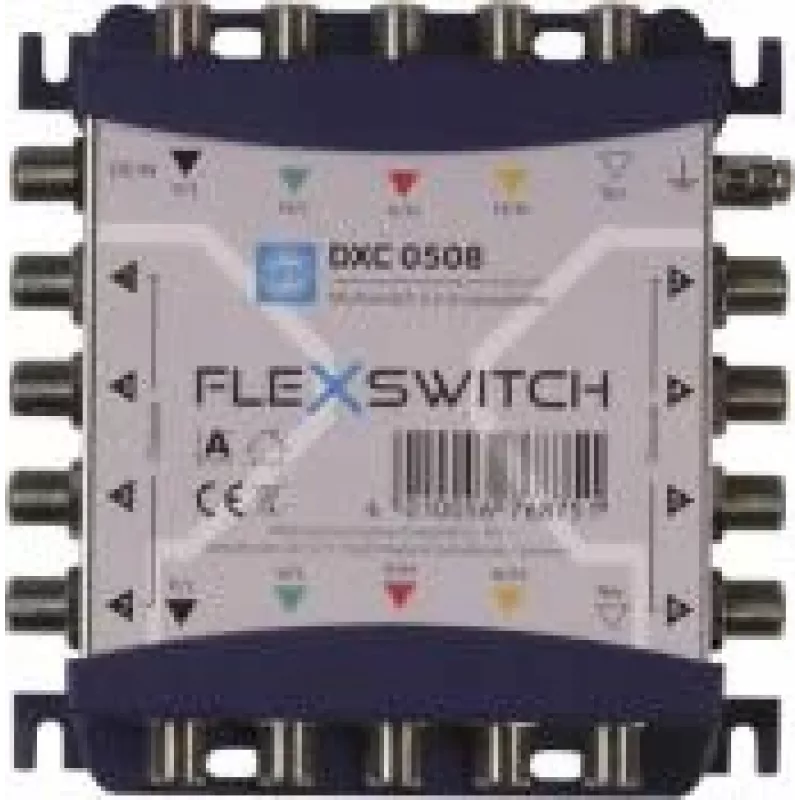

WISI DXC0508 FLEXSWITCH multiswitch 5-in-8 kaskadoitava SAT/TERR 76875

Satellite and terrestrial multiswitch with 5 inputs (4 SAT + 1 terrestrial) and 8 subscriber outputs, cascadable for larger installations. Supports DiSEqC 2.0, 13/18V, and 0/22kHz switching commands.

Advantages

Cascadable design allows expansion to serve more subscribers. Active or passive terrestrial path selectable for flexible signal management. High SAT-SAT isolation (>30 dB) ensures clean signal separation.

Suitable for

• Multi-dwelling units distributing satellite and terrestrial TV to up to 8 outlets
• Installations requiring cascading for larger distribution networks
• Systems using DiSEqC 2.0 or legacy 13/18V and 0/22kHz control

Key specifications

• Inputs: 4x SAT (H/V, Low/High Band) + 1x Terrestrial
• Outputs: 8x Subscriber
• SAT frequency range: 950-2150 MHz
• Terrestrial frequency range: 5-862 MHz
• SAT gain: -2 to 2 dB
• Terrestrial gain (active): -2 to 2 dB
• Terrestrial gain (passive): -20 to -16 dB
• Return path: 5-65 MHz, active/passive selectable
• Switching commands: DiSEqC 2.0, 13/18V, 0/22kHz
• LNB power supply: max. 500 mA
• Power consumption: max. 12 W (without LNB)
• External power supply: 18V DC, 1.5A (included)
• Connector type: F-connector
• Shielding class: A
• Operating temperature: -20 to +50 °C
• SAT-SAT isolation: >30 dB

Recommendations

For cascading, ensure proper termination and power budgeting. Use high-quality coaxial cables and F-connectors to maintain signal integrity.
