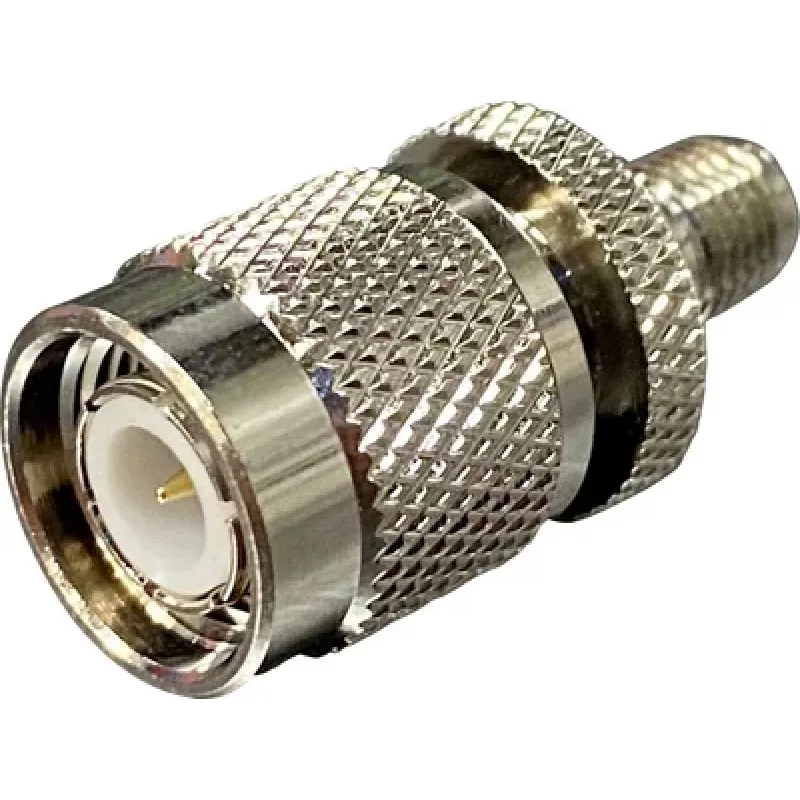

Wittenberg Antennen 102185 TNC-pistoke SMA-liittimeen suora metallisovitin

RF coaxial adapter with TNC male on one end and SMA female on the other, built for direct in-line connection in 50-ohm antenna and wireless systems. The straight metal body with nickel plating and gold-plated contacts ensures low signal loss up to 6 GHz.

Advantages

Solid brass construction with nickel plating resists corrosion and wear. PTFE insulation and gold-plated centre contacts maintain stable impedance and low VSWR across the frequency range.

Suitable for

• RF test and measurement setups
• Antenna feed lines and wireless communication equipment
• In-line adaptation between TNC and SMA interfaces

Key specifications

• Connector 1: TNC male
• Connector 2: SMA female
• Body style: straight
• Impedance: 50 Ω
• Frequency range: DC to 6 GHz
• VSWR: 1.2:1
• Body material: brass, nickel plated
• Contact plating: gold
• Insulator: PTFE
• Operating temperature: -40 °C to +85 °C
• Dielectric withstanding voltage: 1000 V RMS
• Insulation resistance: 5000 MΩ
• Durability: 500 mating cycles

Recommendations

For reliable RF connections where a TNC plug must be adapted to an SMA jack without changing cable orientation.
