Wittenberg Antennen 103507 BNC-liitin - N-liitin koaksiaaliadapteri, 50 ohmia, nikkelöity messinki

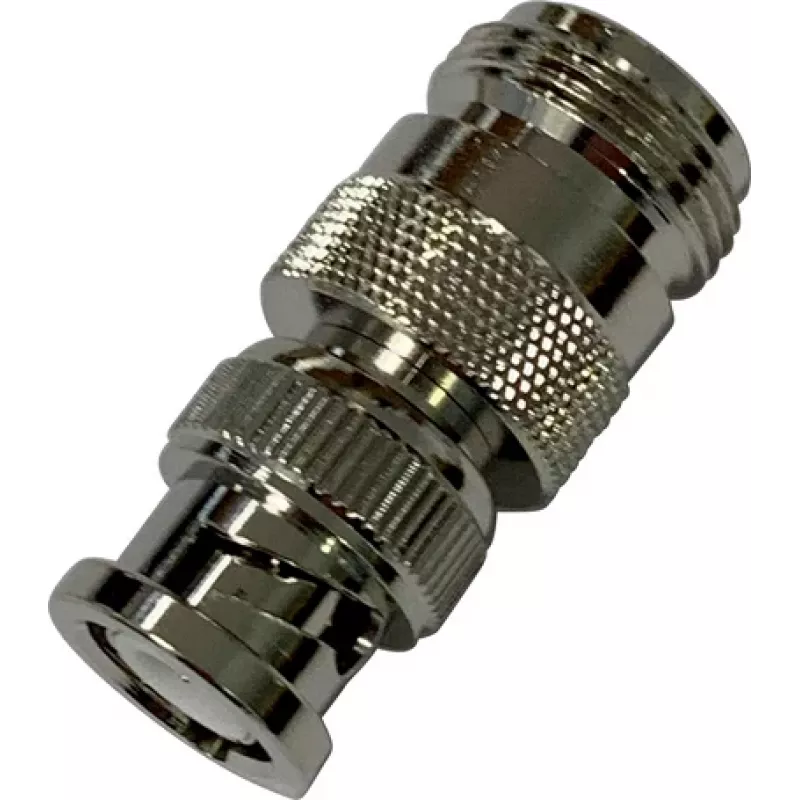

This BNC male to N female adapter from Wittenberg Antennen stands out for its robust brass construction with nickel plating and gold-plated center contact, ensuring reliable signal integrity up to 4 GHz. It is a straight, 50 Ohm coaxial adapter designed for RF, antenna, and test & measurement applications where a secure and low-loss connection is required.

Highlights

• Converts a BNC male interface to an N female interface
• 50 Ohm impedance with VSWR below 1.3:1 and insertion loss under 0.2 dB
• Durable brass body with nickel plating and gold-plated center pin
• PTFE insulator supports operating temperatures from -55°C to +155°C
• Rated for 500 mating cycles

In daily use

This adapter is ideal for connecting BNC-terminated cables to N-type equipment, such as antennas, spectrum analyzers, or RF test setups. Its low insertion loss and wide frequency range make it suitable for both laboratory and field applications. The nickel-plated brass body resists corrosion, while the gold-plated contact ensures consistent performance over repeated connections.

Full specifications

• Connector 1: BNC male
• Connector 2: N female
• Impedance: 50 Ohm
• Frequency range: DC to 4 GHz
• VSWR: < 1.3:1
• Insertion loss: < 0.2 dB
• Body material: Brass, nickel-plated
• Contact material: Brass, gold-plated (center pin)
• Insulator: PTFE
• Dielectric withstanding voltage: 1500 V RMS
• Operating temperature: -55°C to +155°C
• Mating cycles: 500
• Configuration: Straight

Final note

Wittenberg Antennen delivers a precision adapter that maintains signal quality in demanding RF environments, making it a reliable choice for professionals.
