Wittenberg Antennen 4-kertainen SMA-signaalinjakaja 700-2700 MHz

This Wittenberg Antennen signal splitter stands out with its wide 700–2700 MHz coverage and four SMA outputs, making it a reliable choice for distributing cellular and wireless signals across multiple devices. Unlike basic splitters, it maintains solid isolation and low insertion loss across LTE, 4G, 5G, GSM, UMTS, and WLAN bands.

Highlights

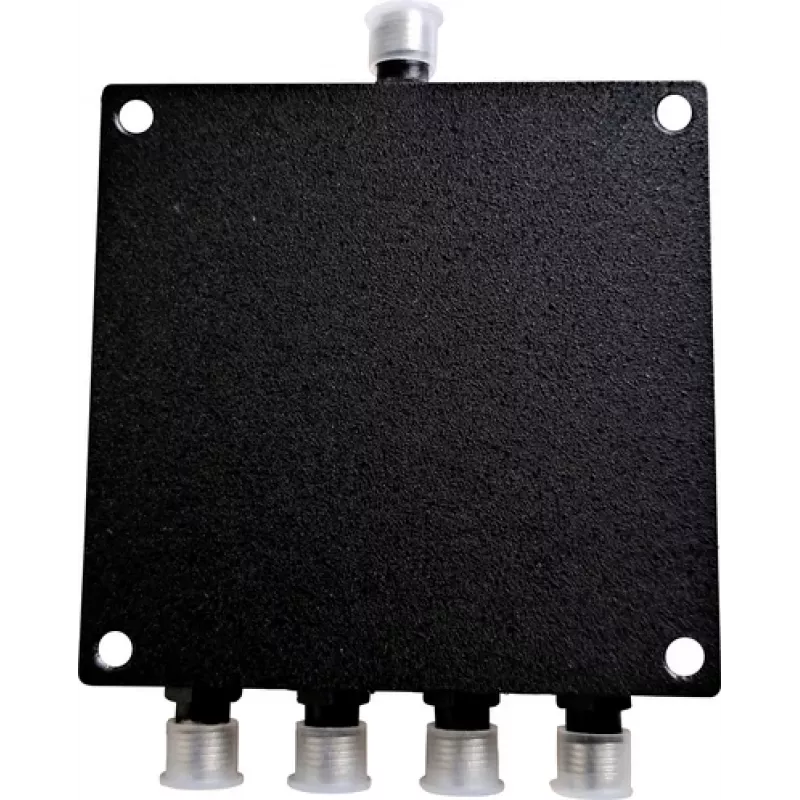

• 1:4 split ratio with one SMA female input and four SMA female outputs
• 50 Ohm impedance with gold-plated connectors for reliable signal transfer
• Aluminum housing, wall mountable, operating temperature -20°C to +65°C

In daily use

Install this splitter in a central location and connect up to four antennas or receivers. The compact, robust design suits both indoor and sheltered outdoor setups. With a maximum input power of 50 W and VSWR below 1.8:1, it handles typical telecommunication and Wi-Fi distribution tasks with minimal signal degradation.

Full specifications

• Frequency range: 698 – 2700 MHz
• Insertion loss: max. 7.5 dB
• Isolation: min. 20 dB
• VSWR: max. 1.8:1
• Max. input power: 50 W
• Connector plating: gold

Final note

A practical, well-built splitter for professional antenna distribution across a broad spectrum.
