xTool RA3 rotaatiolaajennus P2 / P2S

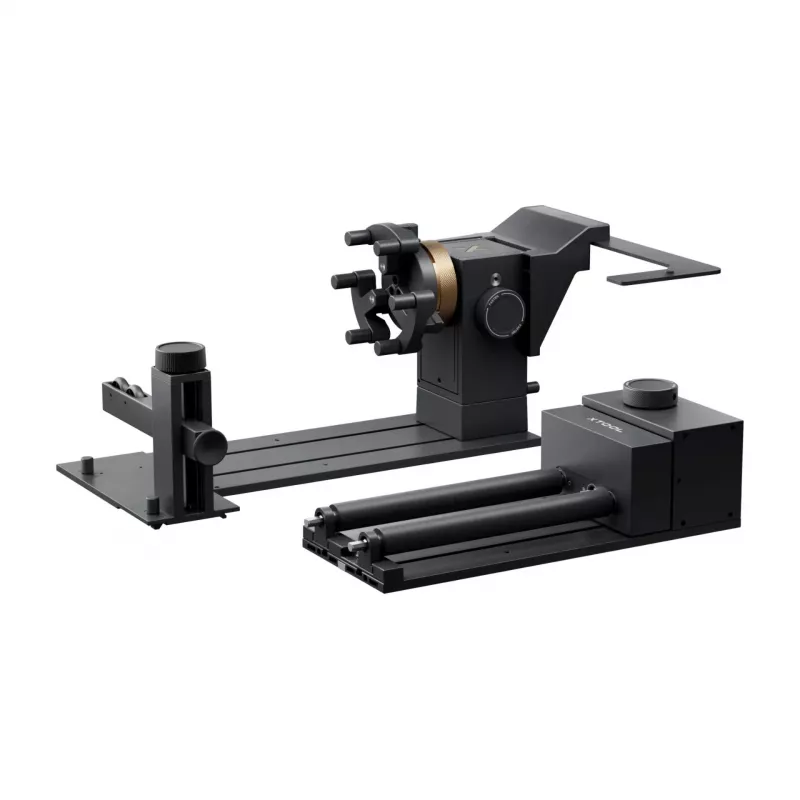

The xTool RA3 Rotations Extension is a versatile 3-in-1 rotary attachment designed specifically for xTool P2 and P2S laser engravers. It enables precise engraving on cylindrical, spherical, and irregular objects, expanding your creative possibilities.

Advantages

With three interchangeable modules (Roller, Chuck, Sphere), the RA3 allows you to engrave on a wide range of objects, from pens and bottles to spheres and irregular shapes. The high-precision stepper motor ensures accurate rotation, while the plug-and-play installation makes setup quick and easy.

Suitable for

• Cylindrical objects: cups, bottles, tubes (3-190 mm diameter)
• Spherical objects: balls, ornaments (25-100 mm diameter)
• Irregular objects: custom shapes using the chuck module (0-100 mm diameter)
• Unlimited length engraving with roller module pass-through

Key specifications

• Attachment Type: 3-in-1 Rotary Attachment (Roller, Chuck, Sphere)
• Compatibility: xTool P2, xTool P2S Laser Engravers
• Roller Engraving Diameter Range: 3 mm - 190 mm
• Chuck Engraving Diameter Range: 0 mm - 100 mm
• Sphere Engraving Diameter Range: 25 mm - 100 mm
• Max Engraving Length (Roller): Unlimited (Pass-through)
• Rotation Accuracy: 0.45°
• Motor Type: High-Precision Stepper Motor
• Control Software: xTool Creative Space (XCS)
• Connection Interface: USB (via xTool P2/P2S)
• Power Source: Powered by xTool P2/P2S
• Main Material: Aluminum Alloy
• Max Engraving Speed: Up to 360°/s
• Adjustable Angle: Yes (for sphere engraving)

Recommendations

For best results, use with xTool P2 or P2S laser engraver and xTool Creative Space software. Ensure objects are securely mounted before engraving.
