Ympärisäteilevä antenni DeLOCK 12606

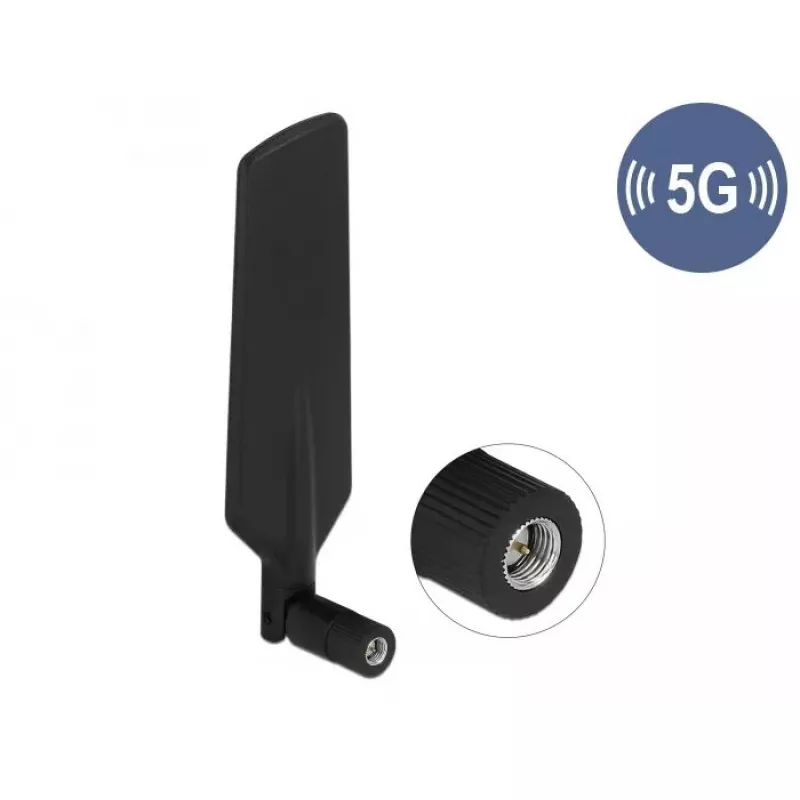

The DeLOCK 12606 omni-directional antenna supports multiple wireless standards including 5G LTE, GSM, UMTS, ZigBee, Z-Wave, NB‑IoT, 2.4 GHz WLAN, Bluetooth, ISM, DECT and LoRa. With a compact form factor (33.2 × 6.17 × 156.2 mm), a female SMA connector and 50 Ω impedance, it is designed to improve reception across a wide frequency range from 0.698 to 4.9 GHz and provides a maximum gain of 3 dBi.

Advantages

The antenna’s omni-directional radiation pattern delivers uniform reception in all horizontal directions, reducing the need for precise alignment. Broad multi-band coverage supports legacy and modern radio standards, making the unit compatible with many devices and IoT applications. Its female SMA connector and 50 Ω impedance allow straightforward integration with common routers, modems and radio modules. The small, black housing facilitates installation where space is limited.

Suitable for

• Enhancing cellular and 5G LTE signal reception for routers and gateways
• IoT devices using NB‑IoT, ZigBee, Z‑Wave or LoRa networks
• Wireless setups requiring 2.4 GHz WLAN or Bluetooth coverage
• Applications needing multi-band support across 0.698–4.9 GHz

Key specifications

• Model: DeLOCK 12606
• Antenna type: Omni-directional
• Gain (max): 3 dBi
• Frequency bands: 0.698–0.791, 0.824–0.96, 1.42–1.52, 1.75–2.17, 2.45–2.65, 3.48–4.2, 4.4–4.9 GHz
• Connector: Female SMA
• Impedance: 50 Ω
• Colour: Black
• Dimensions (W × D × H): 33.2 × 6.17 × 156.2 mm

How to use

Connect the female SMA antenna to the corresponding male SMA port on your device (router, modem or radio module) and position the antenna vertically for best omni-directional performance. Ensure the connector is tightened securely but avoid over‑torquing. Place the antenna in a location with minimal obstructions and away from large metal objects to optimise signal reception across supported bands.

Recommendations

For improved results, test different mounting positions and heights to identify the location with the best overall signal for your specific environment and service bands. Verify device compatibility with a 50 Ω antenna interface before installation.
