Ympärisäteilevä antenni DeLOCK 88413

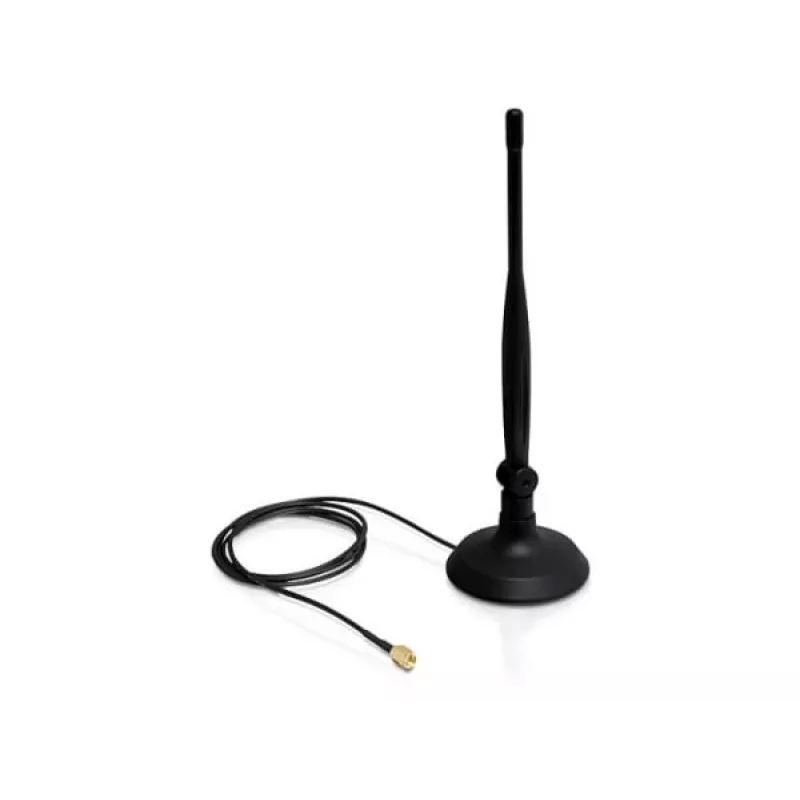

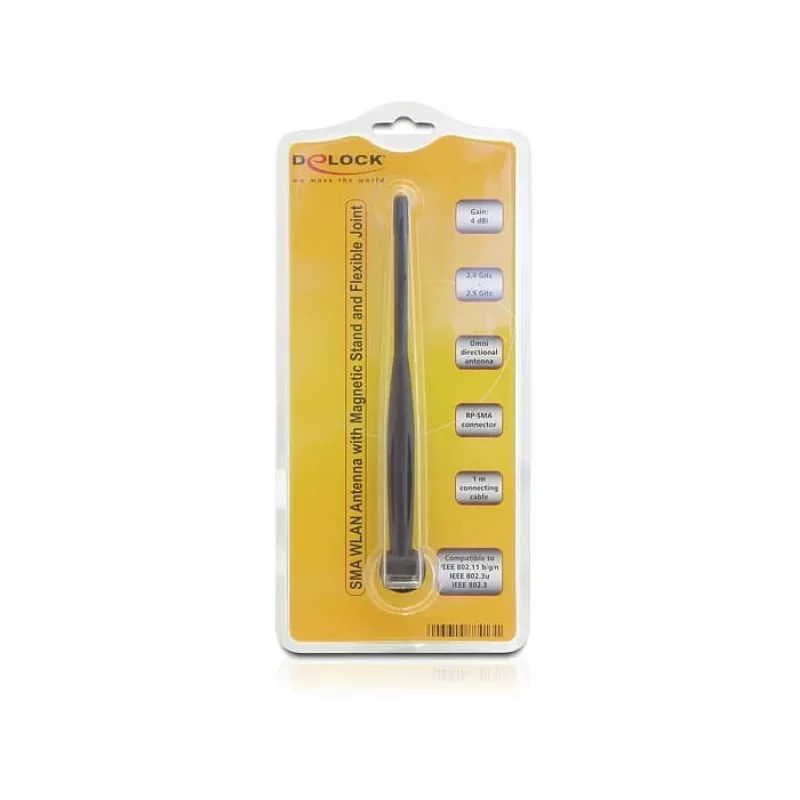

The DeLOCK 88413 is an omni-directional Wireless LAN antenna for devices with an SMA interface. Operating in the 2.4–2.5 GHz band, it delivers up to 4 dBi gain and supports IEEE 802.11b/g/n as well as Ethernet standards IEEE 802.3 and 802.3u. The antenna is supplied with a 1 m cable, an RP‑SMA connector and a magnetic stand, and measures 200 mm in height, providing flexible placement options for improved wireless connectivity.

Advantages

The antenna’s omni-directional pattern provides uniform signal coverage around the device. A maximum gain of 4 dBi balances range and coverage for typical 2.4 GHz Wi‑Fi networks. The flexible antenna with three tilt positions and a magnetic base allows easy orientation and stable placement on metal surfaces. The included 1 m cable with RP‑SMA connector enables straightforward connection to compatible WLAN equipment.

Suitable for

• Home and small office Wi‑Fi access points and routers
• Wireless network adapters and repeaters with RP‑SMA/SMA interface
• Temporary or semi-permanent installations where a magnetic base is useful

Key specifications

• Frequency band: 2.4 – 2.5 GHz
• Maximum gain: 4 dBi
• Connector: RP‑SMA (cable with SMA-compatible end for device)
• Cable length: 1 m
• Height: 200 mm
• Colour: Black

How to use

Attach the antenna’s RP‑SMA connector to the SMA port of your device, making sure the connector type matches. Position the magnetic base on a suitable metal surface or place the antenna on a non-metallic surface if required. Adjust the antenna’s flexible mast to one of the three available tilt positions to optimise signal direction. Ensure cable routing avoids sharp bends and stress on the connector.

Recommendations

For best performance, place the antenna vertically and away from large obstacles or sources of interference. If mounting on non-metallic surfaces, verify stability and consider using an alternative mount. Regularly check the connector for secure attachment and cable integrity.
