Ympärisäteilevä antenni DeLOCK 88980

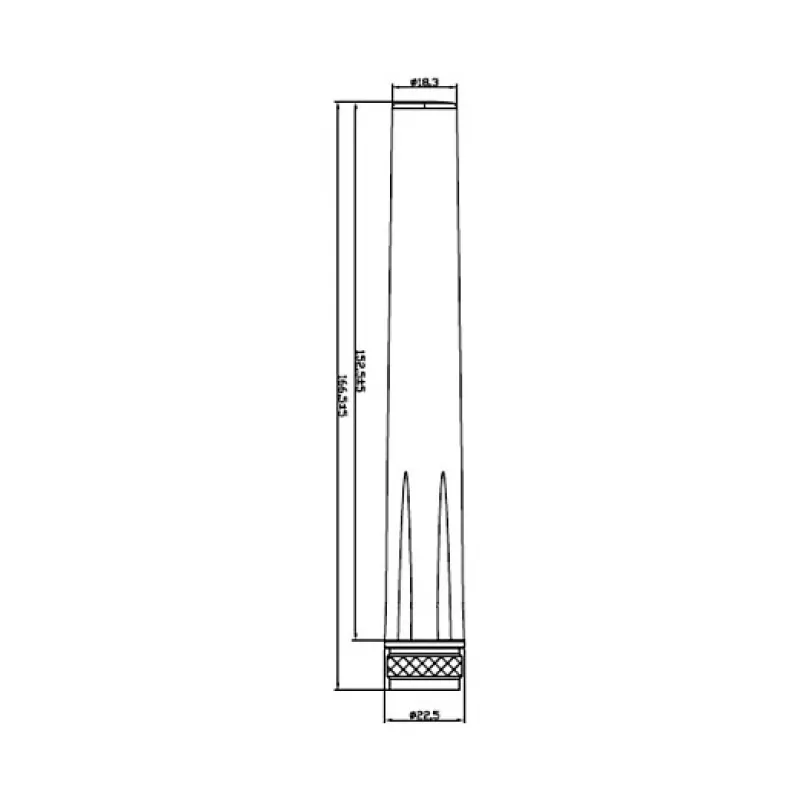

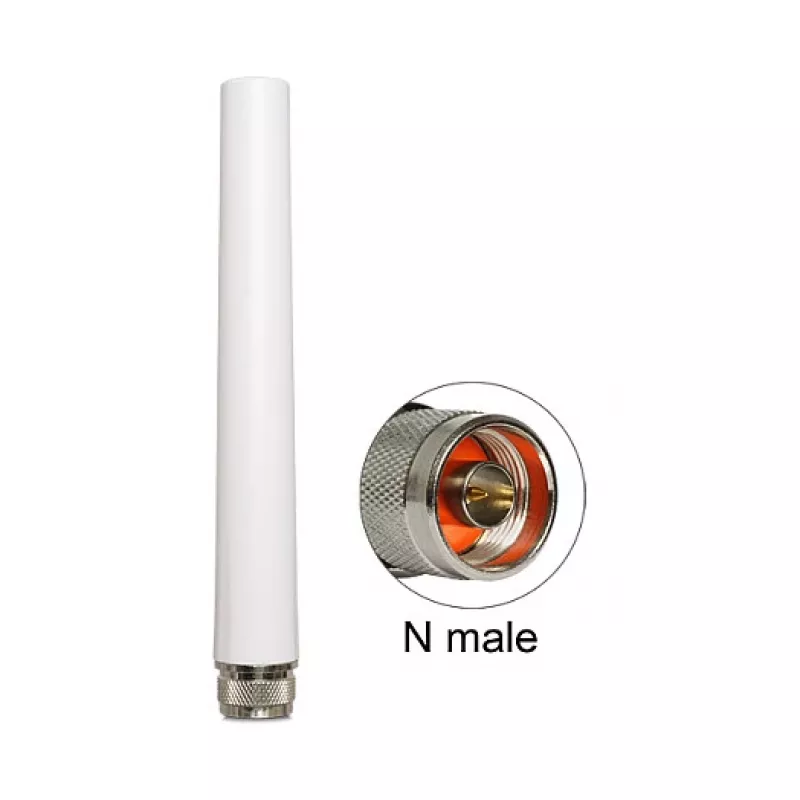

The DeLOCK 88980 omni-directional antenna provides multi-band LTE reception and is suitable for both outdoor and indoor installation. It is compatible with UMTS, GSM, Bluetooth, ZigBee and WLAN 2.4 GHz, offering a compact form factor with a height of 166.5 mm and a diameter of 22.5 mm. The antenna has a gain of 2.5 dBi, 50 Ω impedance and an N-type connector for reliable connectivity.

Advantages

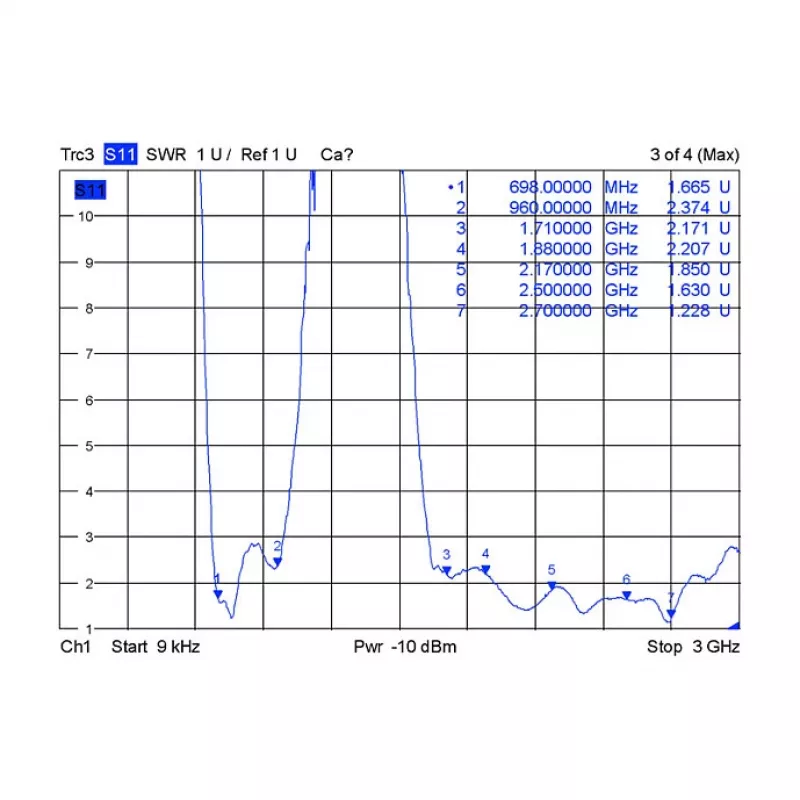

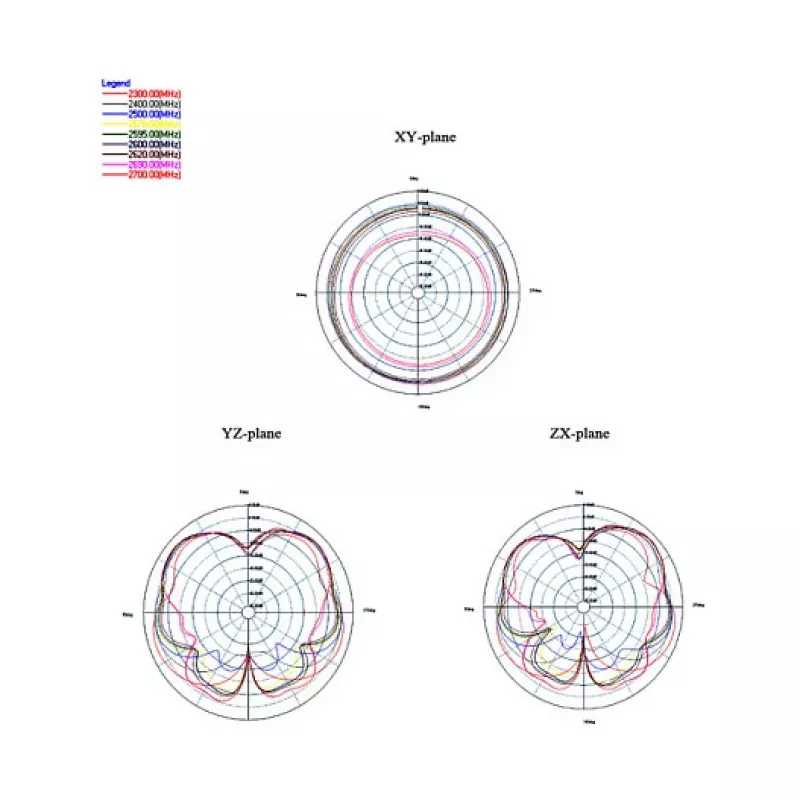

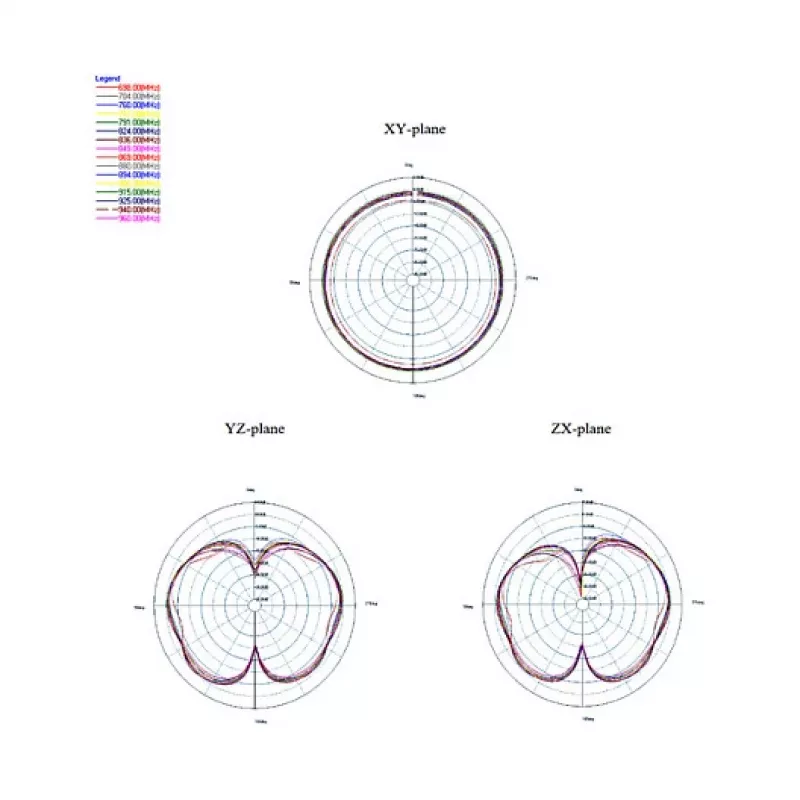

The antenna's omni-directional pattern simplifies installation since it does not require precise aiming. With a moderate gain of 2.5 dBi and a VSWR of 3.5:1 it balances compact size and improved signal reception. Its white housing and small footprint make it suitable for unobtrusive placement in many environments.

Suitable for

Key specifications

How to use

Mount the antenna in a suitable indoor or outdoor location with a clear line of sight where possible. Connect the N-type connector to the corresponding port on your modem, router or radio device. Adjust the mounting position to optimise signal reception; because this is an omni-directional antenna, fine aiming is generally not required. Ensure that cables and connectors are properly tightened and protected from weather if used outdoors.

Recommendations

For best results, place the antenna as high as practical and away from large metallic objects or other RF sources. Use appropriate weatherproofing for outdoor installations and check device compatibility with N-type connectors and 50 Ω impedance before installation.
