Ympärisäteilevä verkkoantenni QuWireless QuSpot PoE/LAN 4 dBi, 0,694–6 GHz, vertikaalipolarisaatio

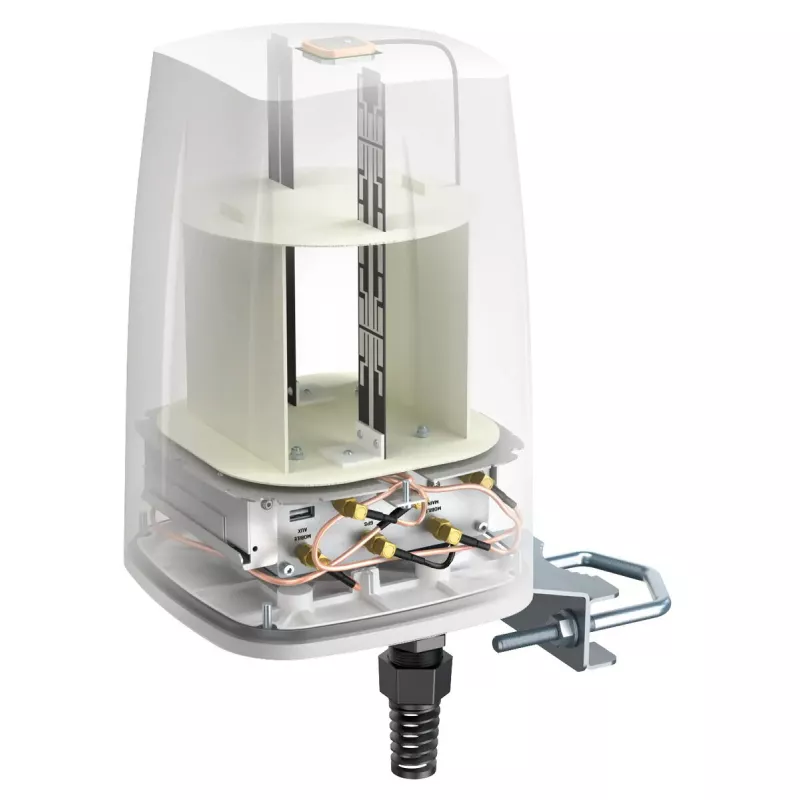

QuWireless QuSpot is an omni-directional network antenna with an integrated PoE/LAN connector and a compact enclosure sized 160×160×240 mm. The antenna covers multiple cellular and Wi‑Fi bands across 0.694–6 GHz (0.694–0.96 / 1.7–2.2 / 2.2–2.7 / 2.4–2.5 / 4.7–6 GHz) and offers up to 4 dBi gain with vertical polarization. The product is designed to house a Teltonika RUTX11 router for an all-in-one outdoor or indoor installation, combining multi‑band LTE, dual‑band Wi‑Fi (2.4/5 GHz), GPS and Bluetooth antennas in a single enclosure. Mounting options include wall or pole installation, and the antenna presents a 50 Ω impedance for standard network equipment compatibility.

Advantages

The QuSpot provides multi‑band coverage in a compact, weather‑suitable enclosure that supports both cellular and Wi‑Fi signals without the need for separate external antennas. Integration for the Teltonika RUTX11 router simplifies installation by combining router placement and antenna functions in one device. Typical gain values (2 / 4 dBi) and vertical polarization make the antenna suitable for general omni‑directional coverage scenarios, while PoE/LAN connectivity allows centralized power and data delivery to the mounted router.

Suitable for

• Outdoor and indoor mobile broadband installations
• Fixed installations on yachts, boats, campers and RVs
• Industrial and CCTV network connectivity
• Public hotspots and small outdoor Wi‑Fi coverage areas
• Integrated deployments using Teltonika RUTX11

Key specifications

• Frequency coverage: 0.694–0.96 / 1.7–2.2 / 2.2–2.7 / 2.4–2.5 / 4.7–6 GHz
• Maximum gain: up to 4 dBi (typical 2 / 4 dBi)
• Polarization: vertical
• Impedance: 50 Ω
• Dimensions: 160 × 160 × 240 mm
• Mounting: wall or pole mount
• Connectors: PoE/LAN for integrated router mounting and network connection
• Integrated antennas: multi‑band LTE omni, dual‑band Wi‑Fi omni (2.4/5 GHz), GPS and Bluetooth

How to use

Install the QuSpot on a suitable wall or pole using the included or appropriate mounting hardware, ensuring the enclosure is oriented vertically for correct polarization. Fit the Teltonika RUTX11 router into the designated space inside the QuSpot enclosure following the router manufacturer instructions, then connect the router to the PoE/LAN connector to supply power and network connectivity. Position the antenna to provide clear line‑of‑sight where possible and route cables through weatherproof entries to maintain enclosure integrity.

Recommendations

Place the antenna at an elevated location to maximize omni‑directional coverage and minimize obstructions. Use proper surge protection and grounding for outdoor installations and follow local regulations for mounting on structures. For best cellular and Wi‑Fi performance, verify the router firmware and antenna alignment and choose the appropriate antenna position for the targeted networks.
