ZVK Easylan kuituliitoskotelo Basic LSB1B113 1HE 12x SC-Duplex Standard OM3 ulosvedettävä - kuitu - SC-Duplex-liittimet

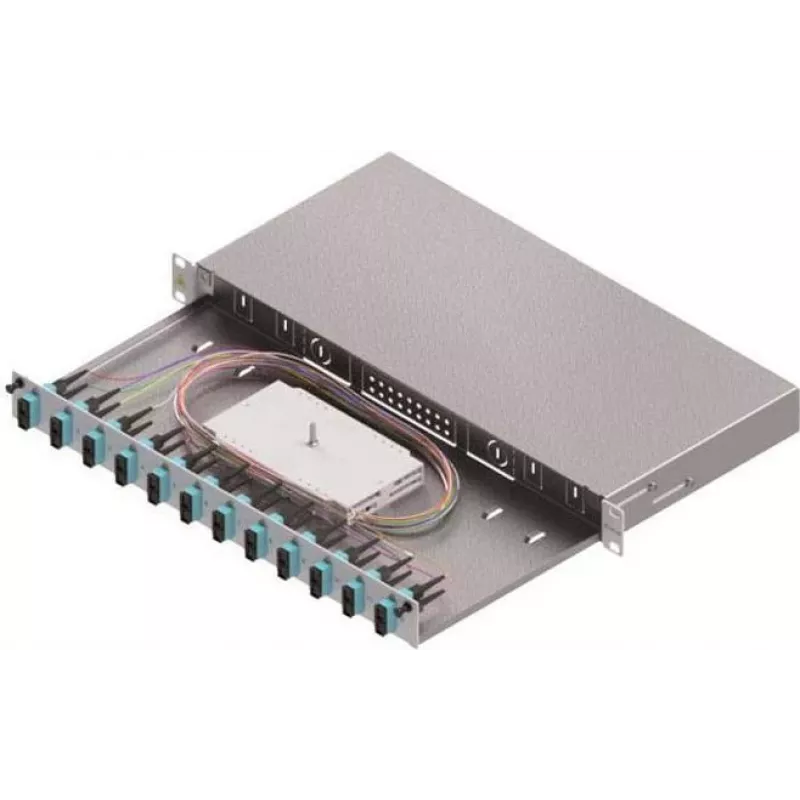

The ZVK Easylan LSB1B113 is a professional 19-inch fiber optic splice enclosure designed for efficient and organized fiber management in data centers, server rooms, and industrial networks. This 1U rack-mount unit features 12x SC-Duplex adapters pre-installed, supporting up to 24 fibers (OM3 multimode). The extractable slide-out drawer design provides easy access for splicing and maintenance, while the powder-coated steel housing in light grey (RAL 7035) ensures durability and a clean appearance.

Advantages

Space-saving 1U design maximizes rack utilization. Pre-installed SC-Duplex adapters reduce installation time. Slide-out drawer simplifies fiber access and management. Robust steel construction with IP20 protection for reliable performance.

Suitable for

• Data center fiber distribution
• Server room cabling
• Industrial network infrastructure
• Telecommunications splice points

Key specifications

• Product Type: Fiber Optic Splice Enclosure
• Form Factor: 19-inch Rack Mount, 1U
• Connector Type: SC-Duplex
• Number of Ports: 12x SC-Duplex (24 fibers)
• Fiber Type: Multimode OM3
• Design: Extractable slide-out drawer
• Material: Powder-coated steel
• Color: Light Grey (RAL 7035)
• Operating Temperature: -20°C to +70°C
• Protection Class: IP20

Recommendations

Ideal for structured cabling projects requiring reliable and accessible fiber splicing. Pair with OM3 patch cables for optimal performance.
