ACT patch-paneeli CAT5E suojattu 24 porttia kannella

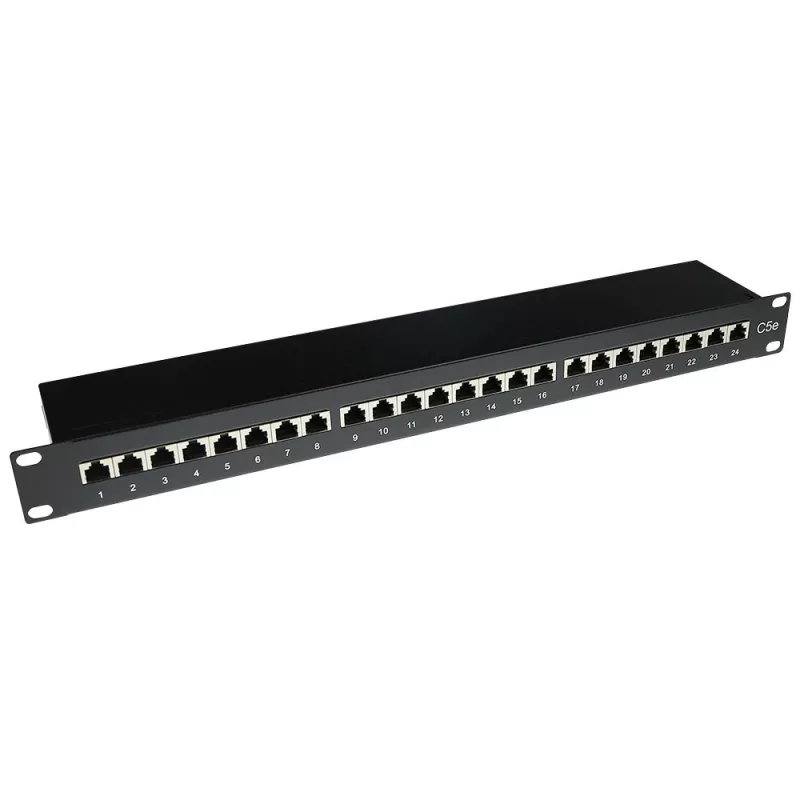

The ACT Patchpanel CAT5E shielded 24 ports (model PP1002) is a 1U rack-mount panel designed to organize and manage copper Ethernet connections in structured cabling systems. Built from SECC steel with a black finish, it provides 24 shielded Cat5e ports with gold-plated contacts and is compatible with AWG 22–26 cable sizes. Its dimensions are 482.6 mm (width) × 44 mm (height) × 109 mm (depth), and it includes a removable cover for protection and neat cable routing.

Advantages

The shielded design reduces electromagnetic interference in environments with potential noise sources, while gold-plated contacts improve corrosion resistance and signal reliability. The 1U form factor and standard 482.6 mm width make it suitable for typical server and network racks. SECC construction ensures mechanical strength and durability for permanent installations.

Suitable for

• Small and medium enterprise network patching
• Server rooms and communication cabinets
• Office LAN structured cabling
• Environments requiring shielded Cat5e connections

Key specifications

• Brand: ACT
• Model: PP1002
• Category: Patchpanel
• Ports: 24 shielded Cat5e
• Contacts: gold-plated
• Cable compatibility: AWG 22–26
• Material: SECC steel
• Colour: Black
• Mounting: 1U rack mount (482.6 mm width)
• Dimensions (W×H×D): 482.6 × 44 × 109 mm

How to use

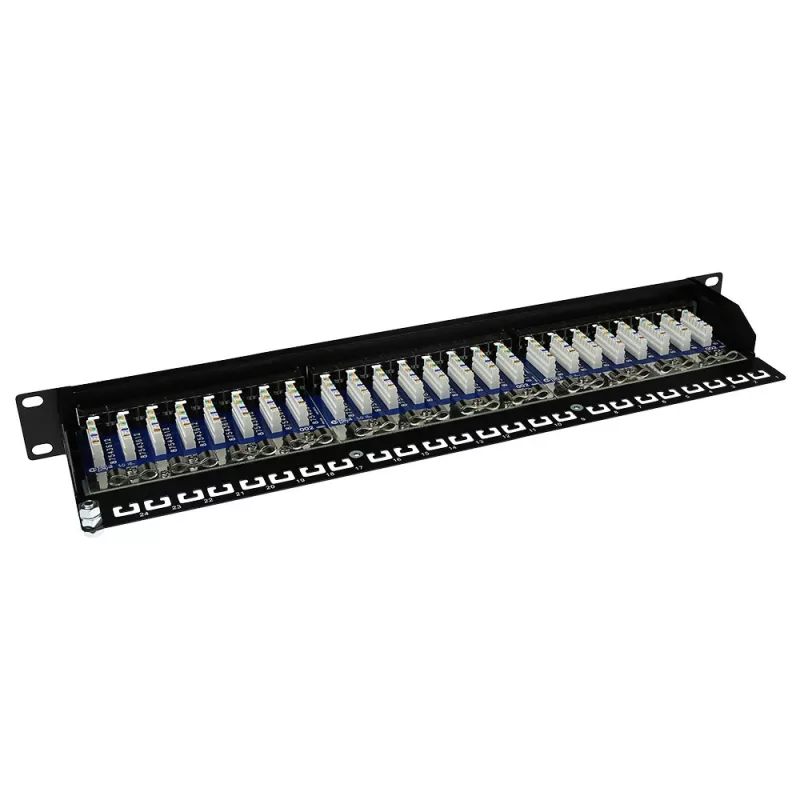

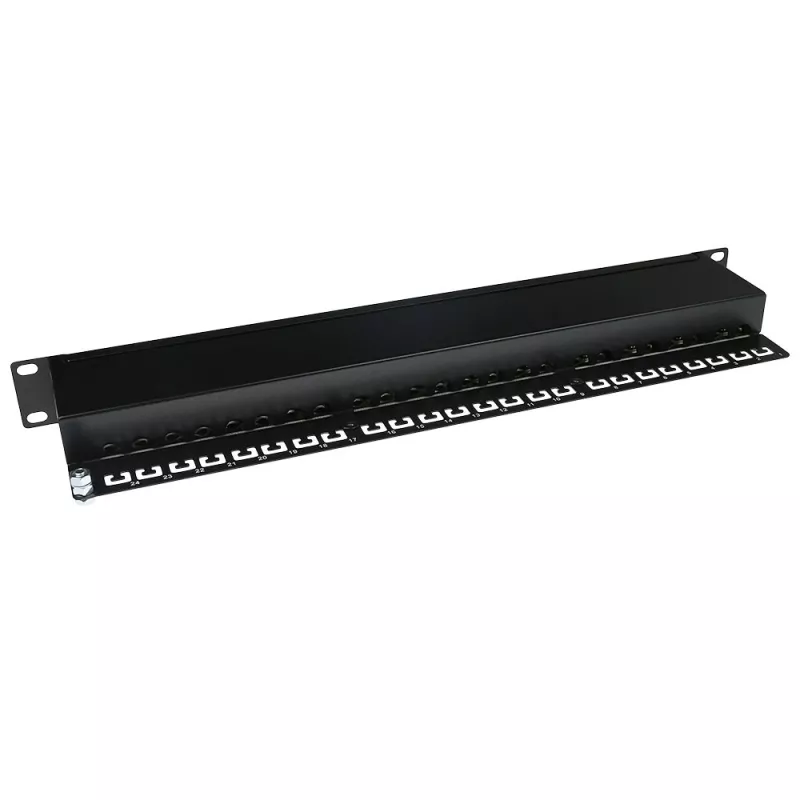

Mount the patch panel into a standard 19-inch rack using appropriate screws and cage nuts for a 1U position. Terminate each incoming Cat5e cable to the corresponding rear IDC or RJ45 module following the panel’s labeling and the T568A/T568B wiring standard. After termination, route and secure cables using the cover and any additional cable management accessories to maintain clear airflow and organized cabling.

Recommendations

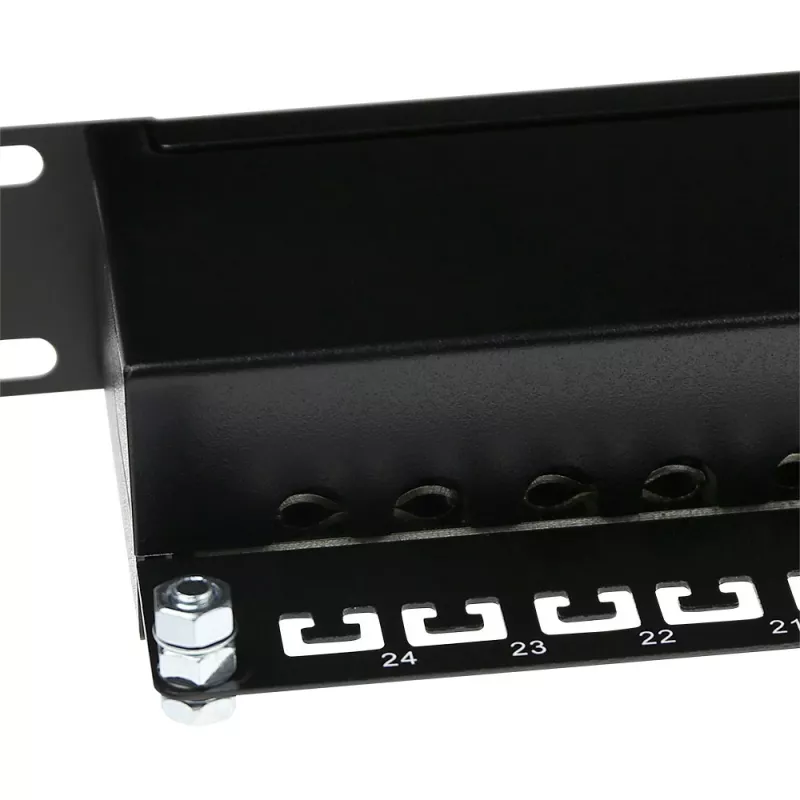

Always verify cable terminations with a cable tester after installation and use shielded Ethernet cables and proper grounding to ensure the effectiveness of the panel’s shielding.
