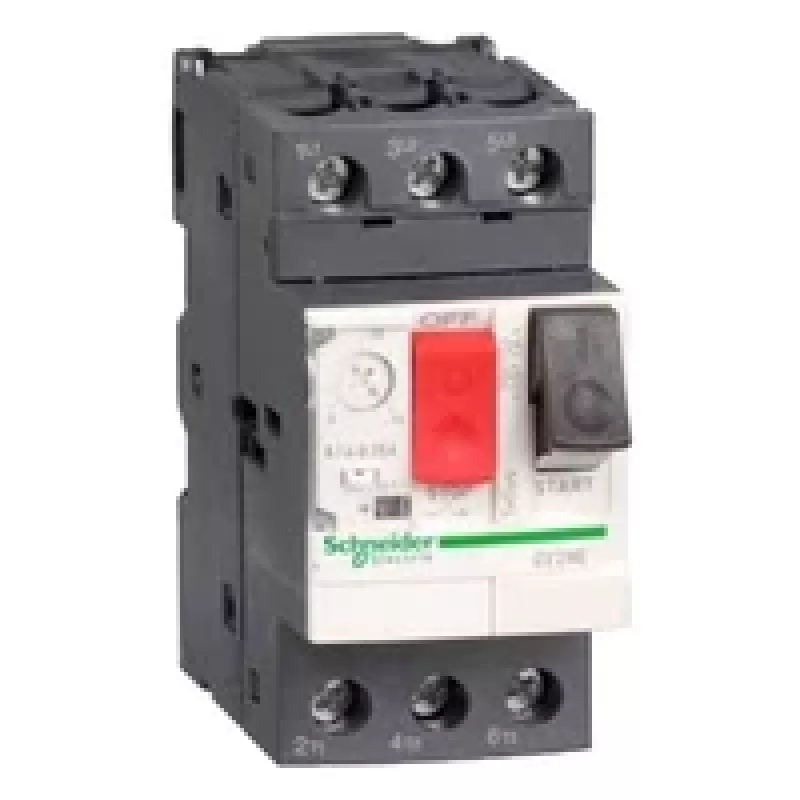

APC GV2ME08 moottorinsuojakytkin, 2,5-4 A, 3-napainen, IP20

The APC GV2ME08 is a high-performance motor circuit breaker designed for reliable protection of motors and electrical circuits. With a thermal protection adjustment range of 2.5 to 4 A and a magnetic tripping current of 51 A, it ensures precise and safe operation. This 3-pole device is rated for operational voltages up to 690 V AC and offers a breaking capacity of 100 kA at 400/415 V, making it suitable for demanding industrial applications.

Advantages

Compact design for easy installation on 35 mm DIN rails. Push-button control for manual operation and reset. Screw clamp terminals ensure secure and reliable connections. Complies with international standards including IEC 60947-2, IEC 60947-4-1, UL 60947-4-1, and CSA C22.2 No 60947-4-1.

Suitable for

• Motor protection in industrial control panels
• Distribution boards and switchgear
• Commercial and industrial electrical installations

Key specifications

• Device Type: Motor Circuit Breaker
• Poles: 3P
• Thermal Protection Adjustment Range: 2.5 - 4 A
• Magnetic Tripping Current: 51 A
• Rated Operational Voltage (Ue): 690 V AC 50/60 Hz
• Rated Insulation Voltage (Ui): 690 V AC
• Rated Impulse Withstand Voltage (Uimp): 6 kV
• Breaking Capacity (Icu) at 400/415V: 100 kA
• Control Type: Push button
• Mounting Type: 35 mm DIN rail
• Connection Type: Screw clamp terminals
• Ingress Protection (IP) Rating: IP20
• Standards: IEC 60947-2, IEC 60947-4-1, UL 60947-4-1, CSA C22.2 No 60947-4-1
• Motor Power Rating (400V): 1.5 kW
• Operating Temperature: -20 to 60 °C

Recommendations

For optimal performance, ensure proper installation by a qualified electrician. Verify that the thermal setting matches the motor full-load current. Use appropriate cable sizes and torque settings as per the manufacturer's instructions.
