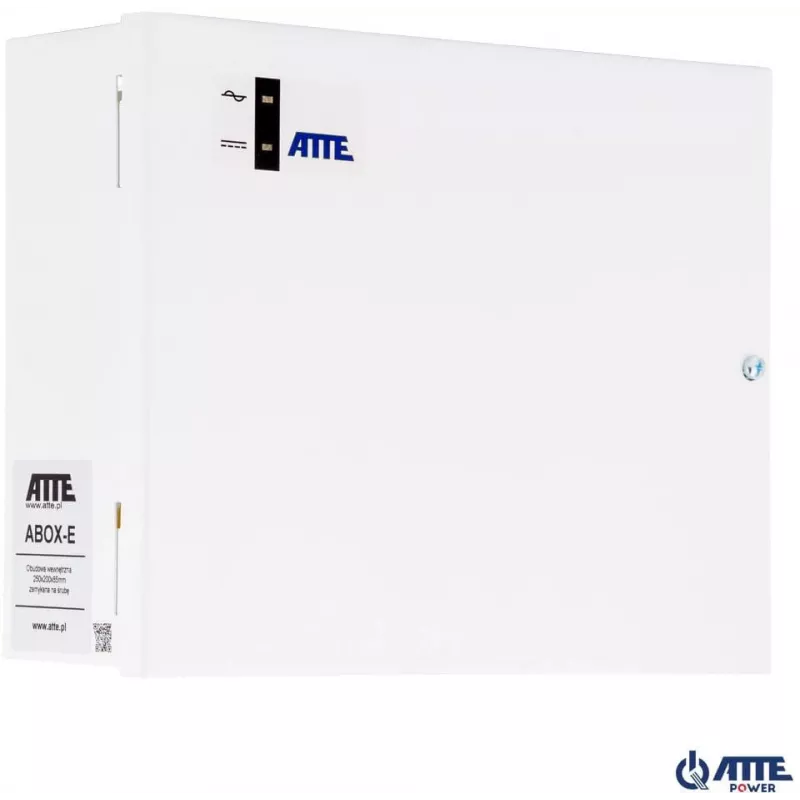

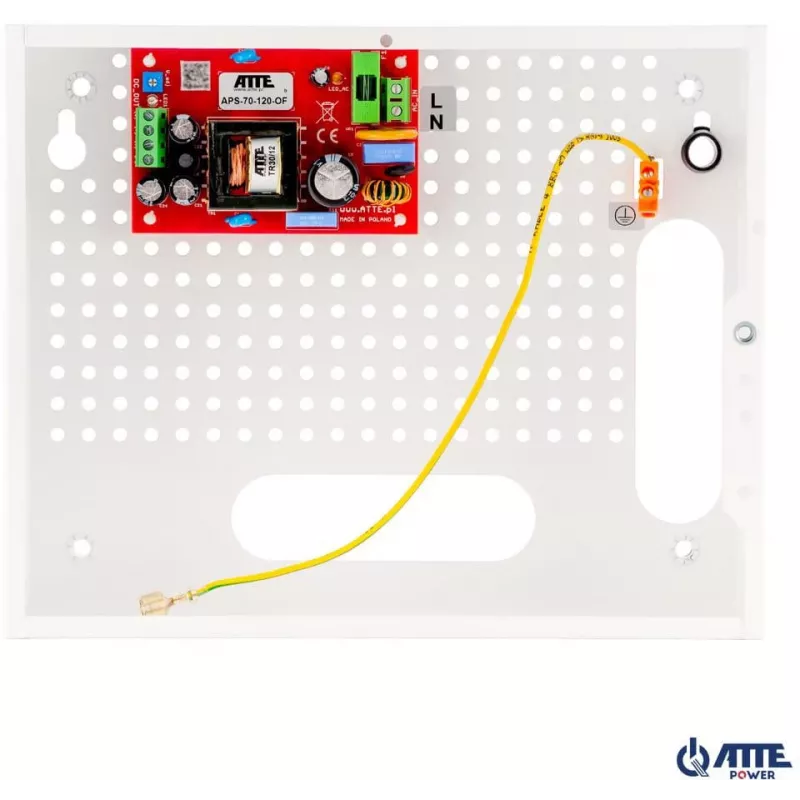

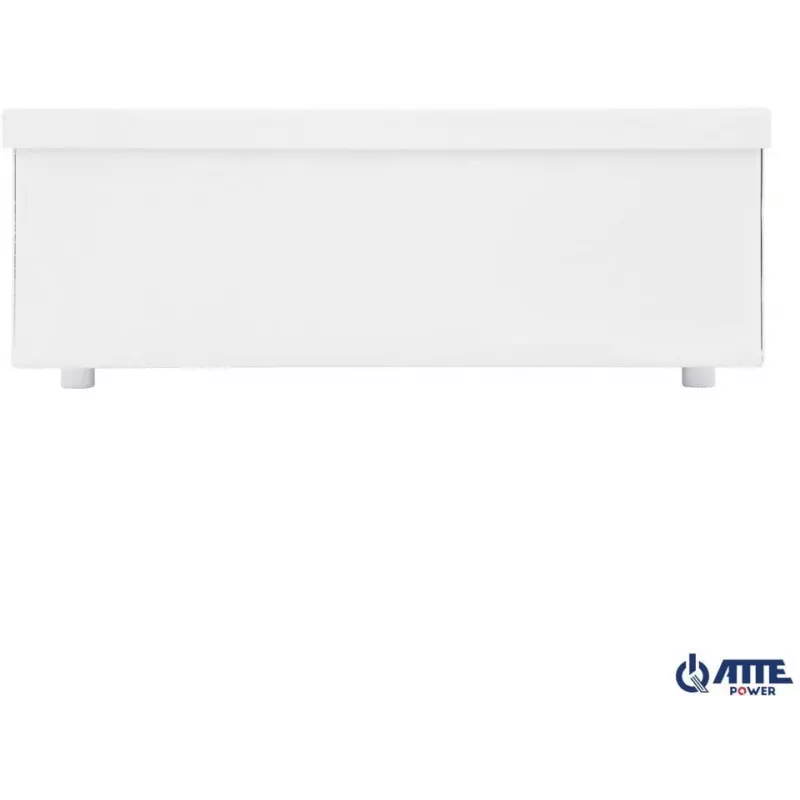

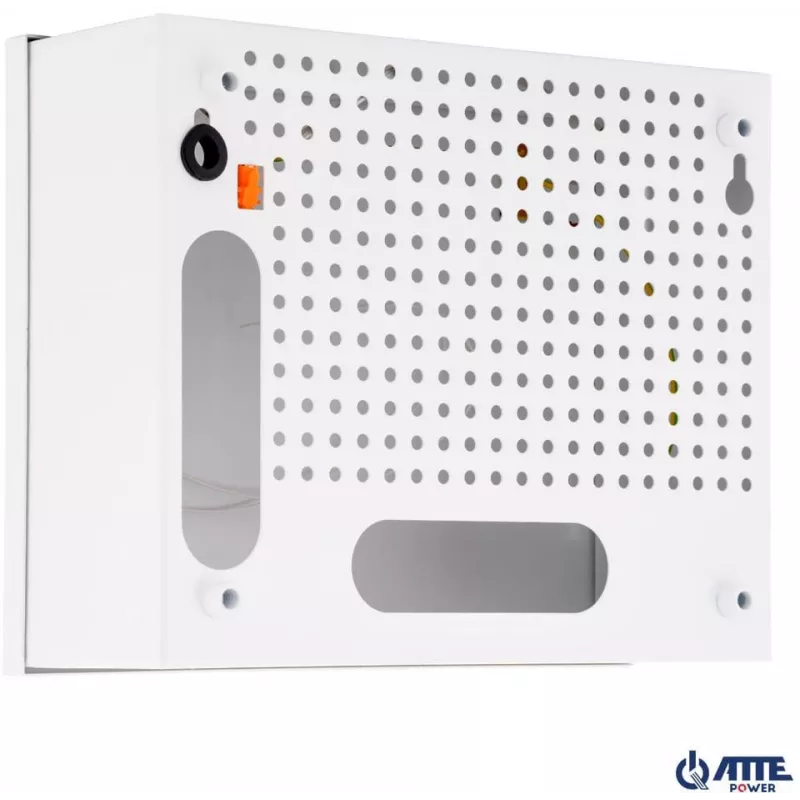

ATTE APS-70-120-E SMPS virtalähde 12V 6A 72W

The ATTE APS-70-120-E is a high-quality switched-mode power supply (SMPS) delivering a stable 12V DC output at 6A, with a total power of 72W. Designed for reliability and efficiency, this power supply is ideal for powering LED strips, CCTV cameras, routers, and other electronic devices requiring a regulated 12V DC source.

Advantages

Energy-efficient Level VI design reduces power consumption and heat generation. Passive cooling ensures silent operation, making it suitable for noise-sensitive environments. Comprehensive protection features safeguard connected equipment against overvoltage, overcurrent, and short circuits.

Suitable for

• LED lighting systems
• Security cameras and CCTV systems
• Networking equipment (routers, switches)
• Home automation devices
• Industrial control systems

Key specifications

• Output Voltage: 12V DC
• Output Current: 6A
• Output Power: 72W
• Input Voltage: 100-240V AC
• Input Frequency: 50/60 Hz
• Efficiency: Level VI
• Output Connector: DC Plug 5.5/2.1mm (center positive)
• Input Connector: IEC C14 (C13 power cord required)
• Protection: OVP, OCP, SCP
• Operating Temperature: -10°C to +40°C
• Storage Temperature: -20°C to +85°C
• Certifications: CE, RoHS
• Housing Material: ABS Plastic
• DC Cable Length: 1.2 meters
• Cooling: Passive (fanless)
• Ripple and Noise: <120mVp-p

Recommendations

For optimal performance, use a compatible C13 power cord. Ensure the total load does not exceed 72W. This power supply is not suitable for outdoor use unless placed in a weatherproof enclosure.
