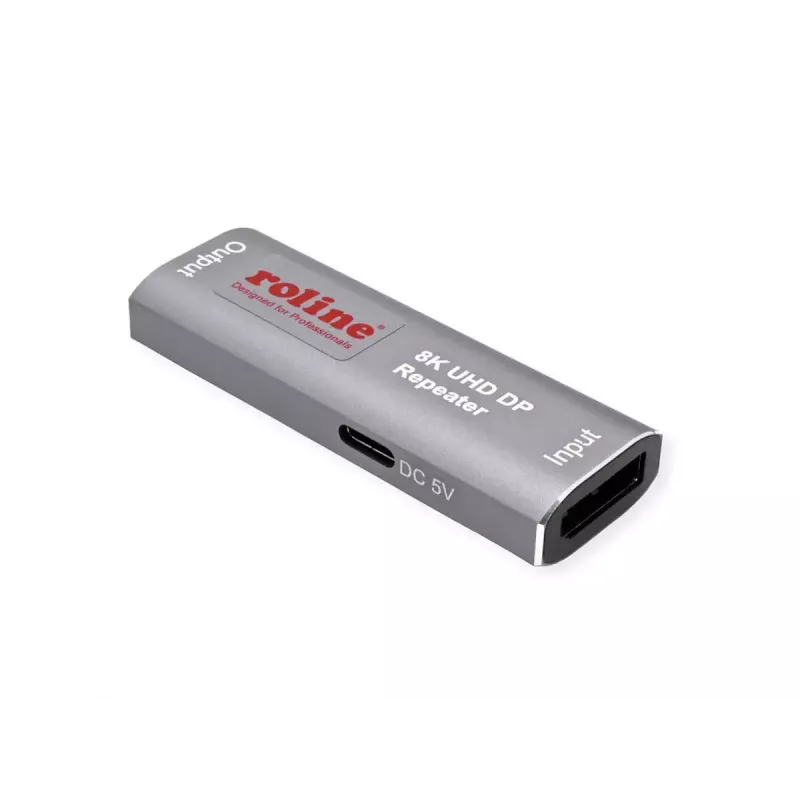

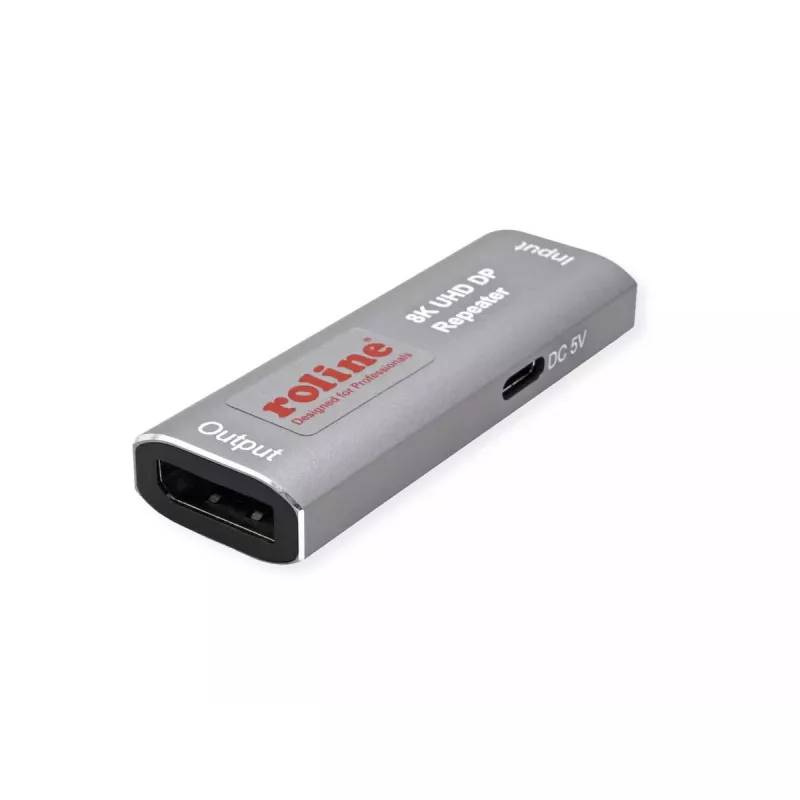

AV-toistin ROLINE 14.01.3475 7680 x 4320 resoluutio

The ROLINE 14.01.3475 is a DisplayPort AV repeater designed to create a point-to-point connection between a single DisplayPort source and a single DisplayPort sink over extended distances. It supports resolutions up to 7680 x 4320 at 60 Hz, transmits signals up to 10 metres and is powered by 5 V with a 2 A output current. The unit is compact and grey in colour, suitable for installations where signal integrity must be maintained without adding additional endpoints.

Advantages

This AV repeater extends DisplayPort signals reliably over longer runs while preserving high-resolution video up to 8K (7680 x 4320) at 60 Hz. Its compact form factor and lightweight design allow flexible placement in tight setups. Low-voltage 5 V operation with a 2 A output current ensures stable power delivery for the repeater without requiring large power supplies.

Suitable for

• Extending a single DisplayPort connection between PC and monitor or display
• Point-to-point digital signage links where one input and one output are needed
• Home or office installations that require high-resolution video transmission over distances up to 10 m

Key specifications

• Model: ROLINE 14.01.3475
• Maximum resolution: 7680 x 4320 @ 60 Hz
• Maximum transmission length: 10 m
• Power: 5 V, 2 A output current
• Colour: Grey
• Weight: 0.017 kg
• Brand: ROLINE
• MPN: 14.01.3475 · EAN: 7630049628861

How to use

Connect the DisplayPort source (for example a computer or media player) to the repeater input and connect the repeater output to the DisplayPort monitor or display. Provide power to the repeater using a 5 V supply capable of delivering 2 A. Ensure cable runs do not exceed the specified length and avoid sharp bends. After connections and power are applied, the repeater will regenerate the DisplayPort signal to maintain the supported resolution and refresh rate.

Recommendations

For best results, use quality DisplayPort cables rated for the required resolution, keep total cable length within 10 m as specified, and position the repeater in a dry, ventilated location away from strong electromagnetic interference.
