AV-toistin ROLINE 14.01.3476 7680x4320 10 m

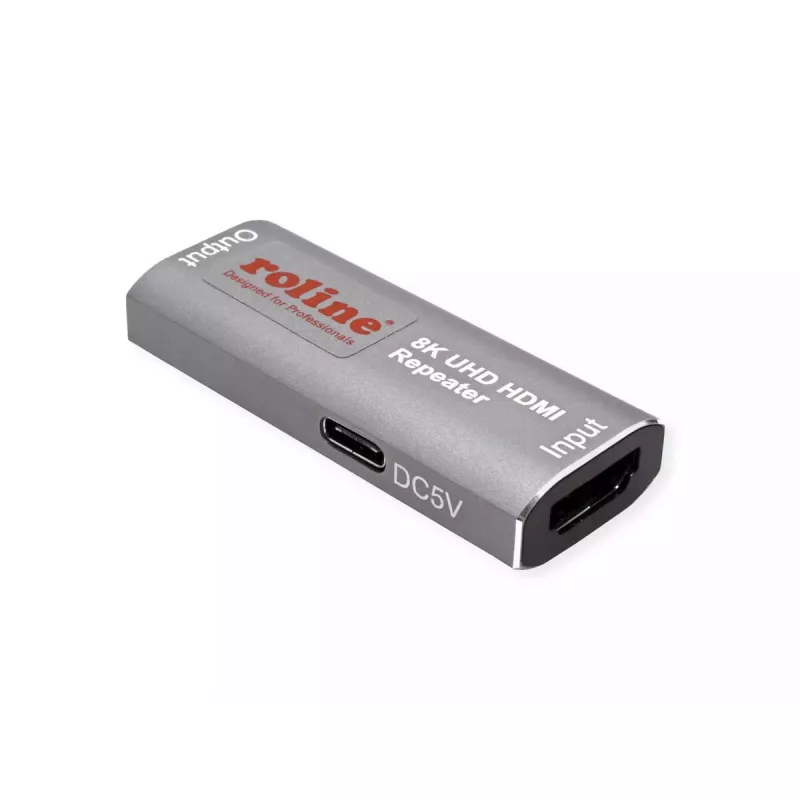

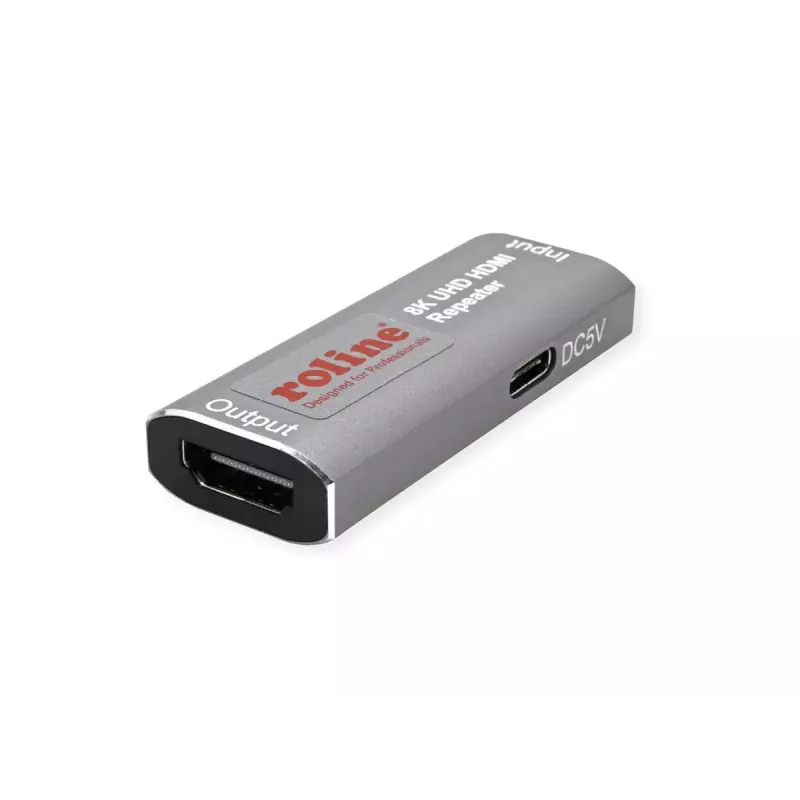

The ROLINE AV repeater 14.01.3476 is an HDMI repeater designed to create a point-to-point connection that extends an HDMI signal up to 10 m while supporting high resolutions up to 7680 x 4320 at 60 Hz. It is a compact, grey device powered by 5 V/2 A and suitable for installations where a single HDMI input and output need to be connected across longer distances without changing source or display hardware.

Advantages

This HDMI repeater supports very high resolutions (up to 8K at 60 Hz) to maintain image quality over extended cable runs, is small and lightweight for easy placement in AV setups, and operates from a 5 V/2 A power supply. Its compact dimensions and low weight make it convenient for concealed or space-limited installations.

Suitable for

• Extending an HDMI connection between a single source and single display up to 10 m
• High-resolution video applications requiring up to 7680 x 4320 @ 60 Hz
• AV installations with limited space where a compact repeater is needed

Key specifications

• Model: ROLINE 14.01.3476
• Maximum supported resolution: 7680 x 4320 @ 60 Hz
• Maximum extension length: 10 m
• Power: 5 V, 2 A
• Colour: Grey
• Dimensions (W×D×H): 23 × 60 × 10 mm
• Weight: 0.017 kg
• MPN: 14.01.3476, EAN: 7630049628878

How to use

Connect the HDMI source to the repeater's input and the display to the repeater's output using standard HDMI cables. Provide power to the unit using a compatible 5 V/2 A adapter. Ensure cable quality and connectors are appropriate for high-resolution signals to achieve the stated maximum resolution over the extended run. Place the repeater in a location that allows secure cable routing and ventilation.

Recommendations

For reliable high-resolution transmission, use high-quality HDMI cables rated for the required bandwidth and avoid sharp bends or excessive cable stress. If you experience signal issues, check power supply, cable integrity, and connector seating before changing source or display devices.
