Bachmann POWER FRAME 2x Schuko-pistorasia 1x USB-C-laturi 2x CM-paikka 0,2m GST18

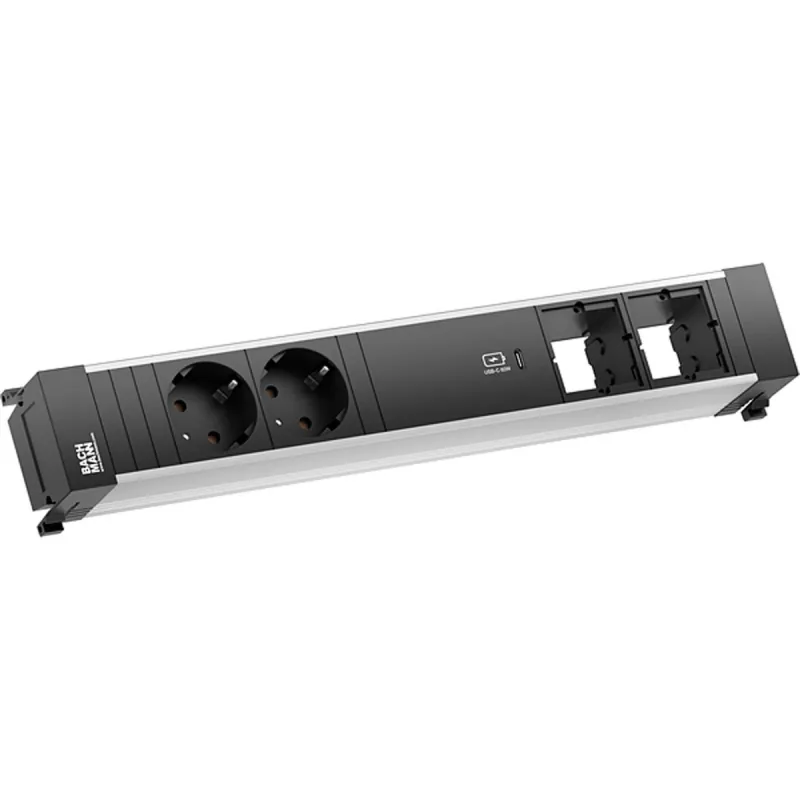

The Bachmann POWER FRAME is a modular desktop power unit designed for modern office and conference room environments. It integrates seamlessly into furniture cut-outs, providing convenient access to power and USB charging. This model features 2 Schuko (Type F) outlets, 1 USB-C charging port with up to 22W Power Delivery, and 2 custom module slots for additional connectivity options. The unit comes with a 0.2m input cable terminated with a Wieland GST18i3 male connector, making it ideal for fixed installations.

Advantages

Space-saving design that mounts directly into desks or workstations, eliminating clutter. The USB-C port supports fast charging for smartphones, tablets, and laptops. The aluminium profile and plastic end caps ensure durability and a professional appearance. With a maximum power output of 3680W (at 230V), it can handle multiple devices simultaneously.

Suitable for

• Office workstations
• Conference rooms
• Home offices
• Modular furniture systems

Key specifications

• Product Type: Modular Desktop Power Unit
• Number of AC Outlets: 2 (Schuko Type F)
• AC Input Voltage: 250V AC
• AC Current Rating: 16 A
• Max Total Power Output: 3680 W (at 230V)
• USB-C Charging: 1x USB-C, up to 22W (5V/3A, 9V/2.4A, 12V/1.8A) with Power Delivery
• Custom Module Slots: 2
• Input Connector: Wieland GST18i3 (Male)
• Input Cable Length: 0.2 m
• Mounting: Integrated (furniture cut-out)
• Housing Material: Aluminium profile, plastic end caps
• Color: Aluminium / Black
• Protection Class: IP20
• Certifications: CE

Recommendations

For optimal performance, ensure the input cable is connected to a compatible GST18i3 socket. The USB-C port is not intended for high-power laptops exceeding 22W. Use the custom module slots for additional USB ports, data connections, or other accessories as needed.
