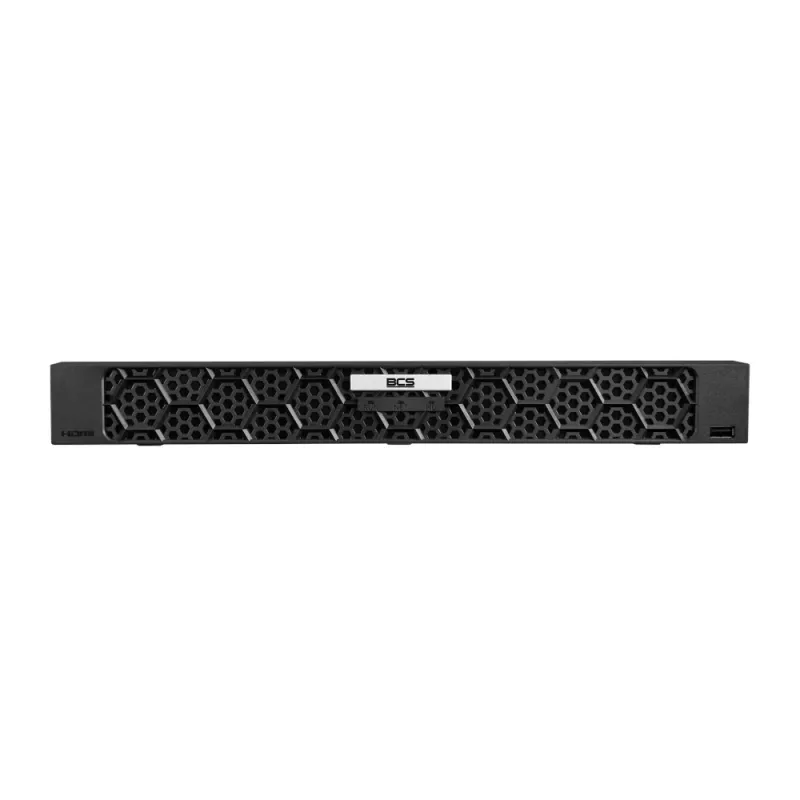

BCS 16-kanavainen 4K NVR verkkotallennin BCS-P-NVR1602-A-4K(5L)

This 16-channel network video recorder delivers 4K Ultra HD recording with H.265+ compression, supporting up to 8MP per channel for exceptionally detailed surveillance footage. With 160 Mbps incoming bandwidth, it handles high-resolution streams from multiple IP cameras without bottlenecks, while the dual SATA bays provide up to 20TB storage for extended retention.

Advantages

Advanced H.265+ compression reduces bandwidth and storage requirements by up to 50% compared to H.264, without sacrificing image quality. The recorder supports ONVIF profiles S, T, and G, ensuring compatibility with a wide range of IP cameras. Smart analytics including motion detection, line crossing, and intrusion detection enhance security monitoring. Dual video outputs (HDMI up to 4K, VGA up to 1080p) allow simultaneous local display and secondary monitoring.

Suitable for

• Medium to large commercial installations requiring up to 16 IP cameras
• Retail stores, offices, and warehouses needing high-resolution surveillance
• Users seeking efficient storage management with H.265+ compression
• Integrators looking for ONVIF-compliant NVRs for mixed camera environments

Key specifications

• 16 IP channels, up to 8MP (4K) recording resolution per channel
• H.265+/H.265/H.264+/H.264 video compression
• 160 Mbps incoming bandwidth, 80 Mbps outgoing
• 2 SATA HDD bays, each supporting up to 10TB (20TB total)
• HDMI (4K) and VGA (1080p) video outputs
• 1 RCA audio in, 1 RCA audio out
• 4 alarm inputs, 1 alarm output
• 1 RJ-45 Gigabit Ethernet port
• 1 USB 2.0 (front), 1 USB 3.0 (rear)
• Power supply: DC12V/4A, consumption <10W (without HDD)

Recommendations

For reliable 4K surveillance in commercial settings, this NVR offers robust performance, extensive storage, and smart analytics. Pair it with compatible IP cameras to build a comprehensive security system.
