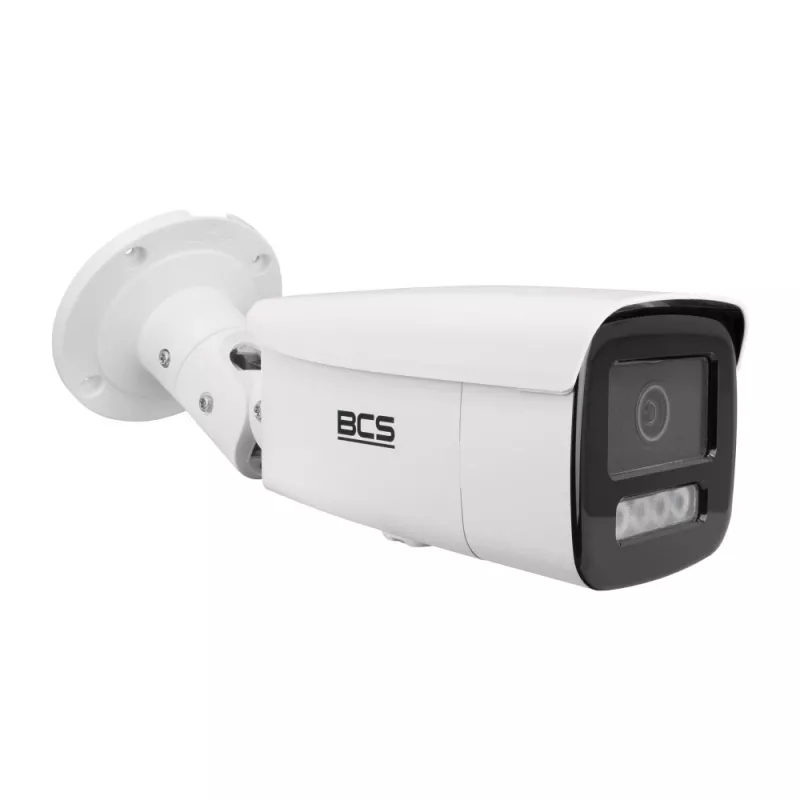

BCS 4MP IP turret-kamera BCS-V-TIP54FSR6L6-AI1(2) 6 mm

The BCS 4MP IP Turret Camera BCS-V-TIP54FSR6L6-AI1(2) is a high-performance surveillance solution designed for professional security applications. Featuring a 4-megapixel progressive scan CMOS sensor, this camera delivers crisp and detailed images at resolutions up to 2592x1520. With a fixed 6mm lens and F1.6 aperture, it provides a clear view even in challenging lighting conditions, supported by 120dB True WDR and 0.005 Lux minimum illumination. The built-in IR illuminators offer up to 60 meters of night vision, ensuring round-the-clock monitoring.

Advantages

This camera combines advanced AI analytics with robust construction. AI features include perimeter protection (tripwire and intrusion), SMD Plus, and face detection, reducing false alarms and enhancing security efficiency. The IP67-rated metal housing ensures durability against harsh weather, making it suitable for outdoor installations. Power over Ethernet (PoE) simplifies cabling, while the MicroSD card slot supports local storage up to 256GB.

Suitable for

• Perimeter monitoring of commercial and industrial sites
• Retail stores and warehouses requiring intelligent surveillance
• Outdoor areas needing reliable night vision and weather resistance
• Integration with ONVIF-compatible systems (Profile S/G/T)

Key specifications

• Sensor: 1/2.7" Progressive Scan CMOS
• Resolution: 4MP (2592x1520) at 25/30fps
• Lens: 6mm fixed, F1.6
• IR Range: Up to 60m
• Video Compression: H.265+, H.265, H.264+, H.264, MJPEG
• Audio: Built-in microphone
• Storage: MicroSD slot (up to 256GB)
• Network: 1x RJ-45 10/100Base-T
• Power: DC 12V / PoE (802.3af), max 7.2W
• Ingress Protection: IP67
• AI: Perimeter protection, SMD Plus, face detection
• Operating Temperature: -30°C to +60°C

Recommendations

For optimal performance, use a PoE switch or injector compliant with IEEE 802.3af. Ensure the MicroSD card is high endurance for continuous recording. Mount the camera in a location that maximizes the field of view while adhering to local surveillance regulations.
