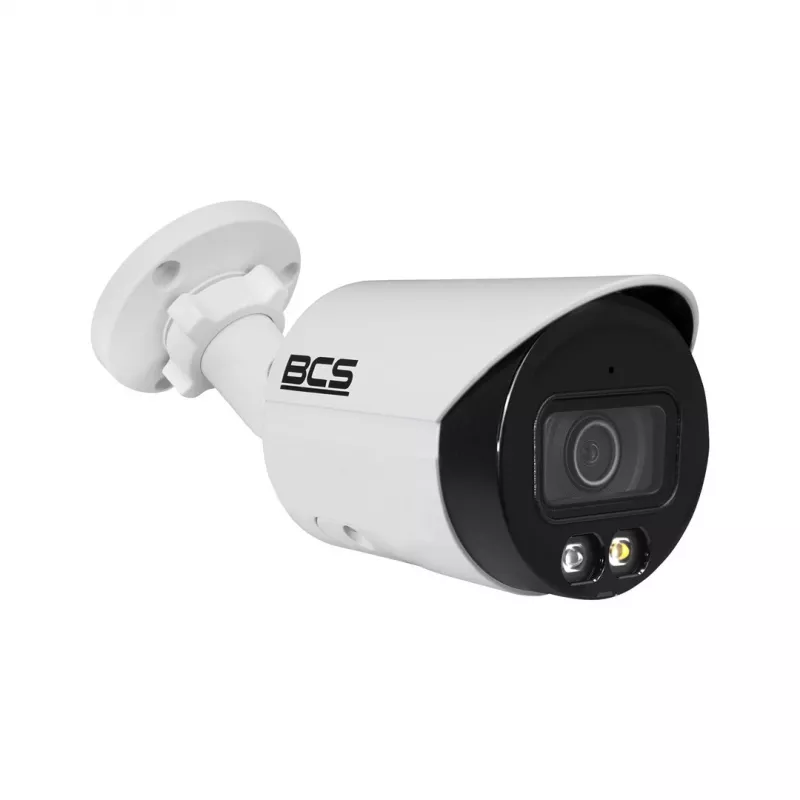

BCS 6MP IP turret-kamera BCS-L-TIP16FCR3L3-Ai1, 3.6mm, IR 30m, PoE, IP67

The BCS-L-TIP16FCR3L3-Ai1 is a high-performance 6MP IP turret camera designed for professional surveillance. Featuring a 1/2.7" Progressive Scan CMOS sensor, it delivers crisp 3072x2048 resolution at 20fps. Equipped with a 3.6mm fixed lens (88° horizontal FOV) and Smart IR up to 30m, it ensures clear imaging day and night. The camera supports H.265+ compression, 120dB True WDR, and 3D DNR for superior image quality in challenging lighting. AI-powered features include perimeter protection, SMD Plus, and face detection. With IP67 rating and wide temperature tolerance (-40°C to +60°C), it is built for outdoor use. Power via 12V DC or PoE (802.3af).

Advantages

High 6MP resolution with efficient H.265+ compression reduces bandwidth and storage. Smart IR adapts to scene brightness for balanced night vision. True WDR and 3D DNR handle high-contrast scenes and reduce noise. AI analytics enable proactive security alerts. Rugged IP67 housing ensures reliable operation in harsh environments.

Suitable for

• Perimeter surveillance of commercial and residential properties
• Parking lots, warehouses, and retail stores
• Outdoor areas requiring high detail and smart detection

Key specifications

• Image Sensor: 1/2.7" 6MP Progressive Scan CMOS
• Max Resolution: 3072x2048 (6MP) at 20fps
• Lens: 3.6mm fixed, F1.6, 88° horizontal FOV
• IR Range: Up to 30m (Smart IR)
• Video Compression: H.265+, H.265, H.264+, H.264, MJPEG
• Audio: Built-in microphone
• Network: 1x RJ-45 10/100Mbps Ethernet
• Storage: MicroSD slot up to 256GB
• Power: 12V DC / PoE (802.3af), max 5.5W
• WDR: 120dB True WDR
• Noise Reduction: 3D DNR
• AI Features: Perimeter protection, SMD Plus, face detection
• Ingress Protection: IP67
• Operating Temperature: -40°C to +60°C
• ONVIF: Profile S/G/T

Recommendations

For optimal performance, use a PoE switch or injector compliant with 802.3af. Pair with a compatible NVR or VMS for full AI functionality. Ensure proper mounting to avoid direct exposure to extreme weather.
