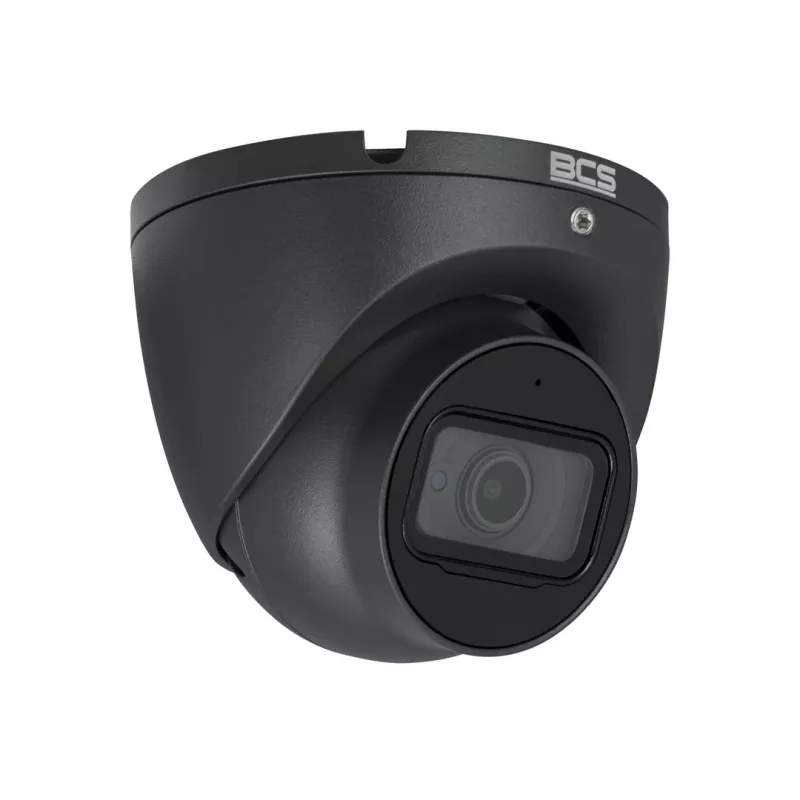

BCS EA18FWR3-G(2) 8MP analoginen HD tornikamera, 3,6mm, 30m IR, IP67

The BCS EA18FWR3-G(2) is a high-performance 8 Megapixel analog HD turret camera designed for professional surveillance. Featuring a 1/2.8" CMOS sensor, it delivers crisp 3840x2160 resolution at 15fps. With switchable video output modes (HDCVI, HDTVI, AHD, CVBS), it offers flexibility for various DVR systems. The fixed 3.6mm lens provides an 87° horizontal field of view, ideal for indoor and outdoor monitoring.

Advantages

True 8MP resolution ensures exceptional detail for identification. 120dB True WDR handles challenging backlight scenes, while 3D DNR reduces noise for clear images in low light. Smart IR technology delivers up to 30 meters of infrared illumination, automatically adjusting to prevent overexposure. The IP67-rated metal housing protects against dust and water, making it suitable for harsh environments.

Suitable for

• Retail stores and warehouses
• Office buildings and parking lots
• Residential perimeter surveillance
• Industrial sites requiring weatherproof cameras

Key specifications

• Sensor: 1/2.8" CMOS, 8MP (3840x2160)
• Video Output: HDCVI / HDTVI / AHD / CVBS switchable
• Lens: Fixed 3.6mm, F1.6, 87° FoV
• IR Distance: Up to 30m (Smart IR)
• Min Illumination: 0.005 Lux (color), 0 Lux (IR on)
• WDR: 120dB True WDR
• Noise Reduction: 3D DNR
• Power: DC 12V, max 4.9W
• IP Rating: IP67
• Operating Temperature: -40°C to +60°C
• Housing: Metal, turret form factor
• OSD Menu: Supported

Recommendations

For optimal performance, use with a compatible 8MP analog HD DVR and high-quality coaxial cable. Ensure proper mounting to achieve the desired field of view. The camera is designed for both indoor and outdoor use, but avoid direct exposure to extreme weather beyond its rated temperature range.
